MS-ES#####-GWS-MG-JHP : Toolholders for Goltenbodt GWS systems with internal coolant supply for MODULAR-GRIP adapters.(-)Toolholders for Goltenbodt GWS Systems with Internal Coolant Supply for MODULAR-GRIP Adapters(+)

OAL (assembly) = LF+OAL (adapter)
WF (assembly) = WF+WF (adapter)

Related holders for : DGPAD 3L-D32-JHP

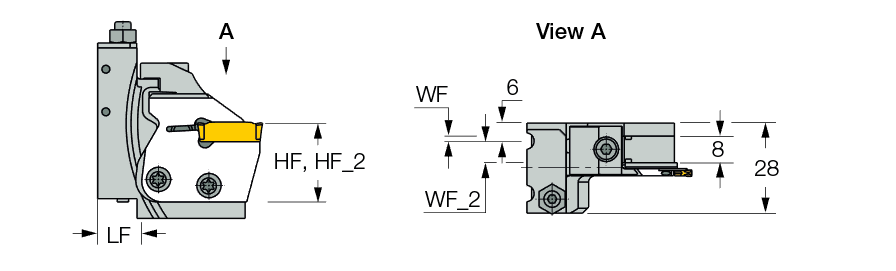

Designation	LF	WF	WF_2	HF	HF_2	HAND	CSP	GICAT
MS-ES02012-GWS-MG-JHP	14.00	2.00	6.00	24.0	27.0	R~	1~	4710739
MS-ES02013-GWS-MG-JHP	22.00	2.00	6.00	24.0	27.0	R~	1~	4711610
MS-ES09003-GWS-MG-JHP	14.00	2.00	6.00	24.0	30.0	R~	1~	4711611
MS-ES41008-GWS-MG-JHP	22.00	2.00	6.00	24.0	27.0	R~	1~	4711612
MS-ES41009-GWS-MG-JHP	22.00	2.00	6.00	24.0	27.0	L~	1~	4711613

For assembly, spare parts and user guide, click on "More Info"
