ISCAR Cutting Tools - Metal Working Tools - Tooling Systems - Plunging & Recessing - TJS-GJET-HSK A63
Customized Items ×
Choose an item to customize and generate a quotation

TJS-GJET-HSK A63 : Coolant driven high speed compact spindles for small diameter tools on limited RPM machines. Can be used for semi finish and finish machining applications such as milling, drilling and grinding.(-)Coolant Driven High Speed Compact Spindles with HSK Shanks(+)
For ER-SPR collets use "AA" type only

For ER-SPR collets use "AA" type only

 COOLANT THROUGH TOOL  G2.5/60,000 RPM

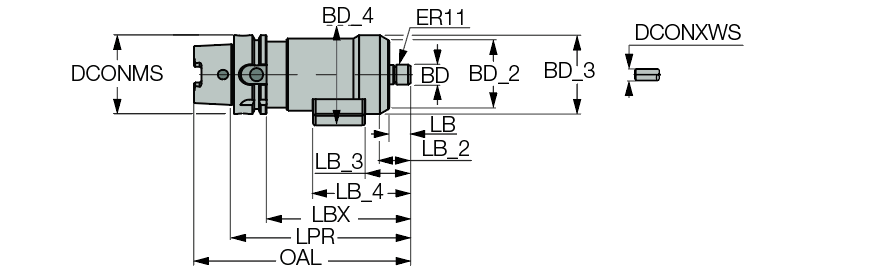

  Designation  GIFUT5BD BD_2 BD_3 BD_4 LB LB_2 LB_3 LB_4 LBX DCONMS LPR OAL DCONXWS  CSP  RPMN  RPMX  CDI  GICATGIREMgiic
  TJS GJET HSK A63    016.0054.2563.0081.0017.0024.5836.2477.84115.0063.00141.00173.007.001~350005500001.803355062 0
Minimum coolant pressure 20 bar and flow rate 12 l/min
The spindle provides only external strong coolant jet around the tool
Battery not supplied
For user guide, click on "More Info"
