TJS-GJET-BT : Coolant driven high speed compact spindles for small diameter tools on limited RPM machines. Can be used for semi finish and finish machining applications such as milling, drilling and grinding.(-)Coolant Driven High Speed Compact Spindles with BT Shanks(+)
Representative Image
For ER-SPR collets use "AA" type only

Representative Image
For ER-SPR collets use "AA" type only

 COOLANT THROUGH TOOL

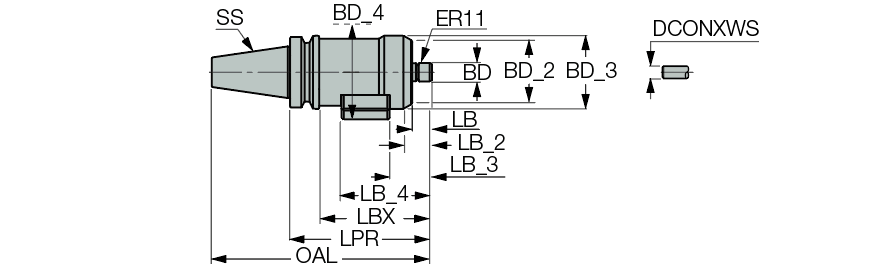

  Designation  GIFUT5BD BD_2 BD_3 BD_4 LB LB_2 LB_3 LB_4 LBX SS LF LPR DCONMS DCONXWS  OAL CSP  RPMN  RPMX  DCP  CCMS GICATGIREMgiic
  TJS GJET BT30    016.0054.2563.0081.0017.0024.5836.2477.84109.0030124.00141.00~7.00189.001~350005500001.60SKG51C0300$$$$~3356933 0
  TJS GJET BT40    016.0054.2563.0081.0017.0024.5836.4477.8497.0440107.00124.00~7.00189.001~350005500001.80SKG51C0400$$$$~3355060 0
Minimum coolant pressure 20 bar and flow rate 12 l/min
The spindle provides only external strong coolant jet around the tool
Battery not supplied
For user guide, click on "More Info"
