PICCO-620-N (Face Grooving Along Shaft) : PICCO-JETCUT inserts with internal coolant channel for grooving along shaft Dmin 6 mm(-)Inserts with Internal Coolant Channel for Grooving Along Shaft Dmin 6 mm(+)

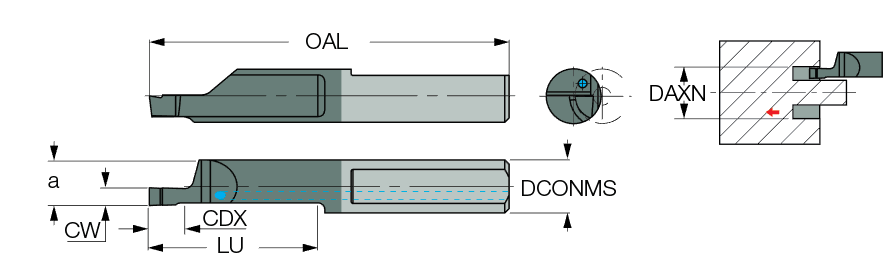

Representative Image

Designation	DAXN	CW	CDX	DCONMS	a	LU	OAL	ffg (min)	ffg (max)	APMX	GRDMFG	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	giic	Grade Click on Grade No. for Cutting Speed
PICCO R 620.1006-20N	6.0	1.00	2.00	6.05	5.20	19.0	41.00	0.01	0.04	1.00~	IC908 ~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	3360776	1	IC908
PICCO R 620.1506-20N	6.0	1.50	3.00	6.05	5.20	19.0	41.00	0.01	0.05	1.50~	IC908 ~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	3360769	1	IC908
PICCO R 620.2006-20N	6.0	2.00	4.00	6.05	5.20	19.0	41.00	0.02	0.06	2.00~	IC908 ~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	3360766	1	IC908
PICCO R 620.2506-20N	6.0	2.50	5.00	6.05	5.20	19.0	41.00	0.02	0.06	2.50~	IC908 ~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	3360818	1	IC908
PICCO R 620.3006-20N	6.0	3.00	6.00	6.05	5.20	19.0	41.00	0.02	0.06	3.00~	IC908 ~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	3360822	1	IC908

Only right-hand inserts are available as standard, left-hand inserts on request
All carbide inserts are with sharp corners
Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
