TGTBY-JHP : Y-axis intermediate prismatic holders for TANG-F-GRIP and DO-F-GRIP square JHP adapters on multi-task machines for parting and grooving.(-)Y-Axis Intermediate Prismatic Holders for Square JHP Adapters on Multi-Task Machines for Parting and Grooving(+)

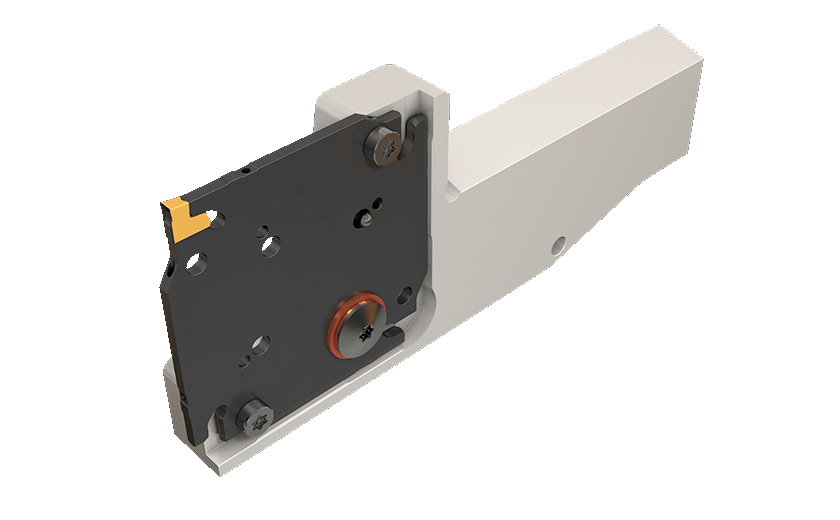

TGTBY R32-D82R-JHP with TGAQ Shown

Designation	OAH	HF	OAW	LF	LB	CUTDIA	OAL	HTPRM	HAND	OAL_2	SFMT	CSP	Tool typ	GICAT
TGTBY L32-D82R-JHP	42.00	65.8	16.00	150.00	62.00	82.0	153.00	32.00	R	156.40	Y axis~	1~	BLADE~	3372439
TGTBY R32-D82L-JHP	42.00	65.8	16.00	150.00	62.00	82.0	153.00	32.00	L	156.40	Y axis~	1~	BLADE~	3372441
TGTBY R32-D82R-JHP	42.00	65.8	16.00	150.00	62.00	82.0	153.00	32.00	R	156.40	Y axis~	1~	BLADE~	3372443
TGTBY L32-D82L-JHP	42.00	65.8	16.00	150.00	62.00	82.0	153.00	32.00	L	156.40	Y axis~	1~	BLADE~	3372442

Can be used also for X-axis (multi-task machines) - location pin should beremoved
For animation and set up procedure click on "More Info"
The tool types shown are currently unavailable in the USA, Canada, China, Japan and Korea
