SCD-FNPCD : Solid Carbide Drills with PCD Full Nib Insert for Composite Materials (CFRP) and Stack Machining

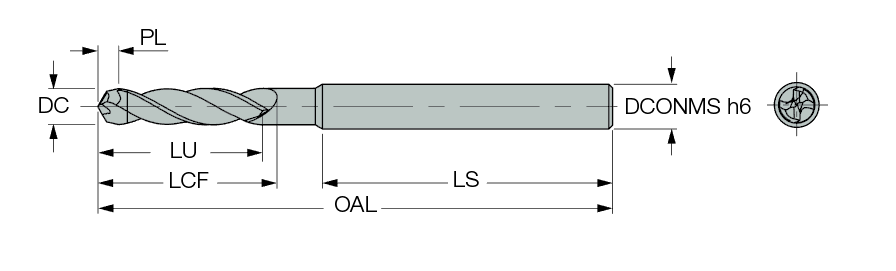

Representative Image

Designation	DC	DCONMS	LU	LCF	LS	OAL	PL	ULDR	CSP	HAND	NOF	CCMS	GRDMFG	GICAT
SCD 0330-025-040 FNPCD	3.30	4.00	25.00	30.0	36.0	70.00	3.000	~	0~	R~	2~	ZYL01F4000h$06~	~	3384440
SCD 0419-028-060 FNPCD	4.19	6.00	28.00	34.3	34.0	70.00	2.100	~	0~	R~	2~	ZYL01F6000h$06~	~	3384444
SCD 0485-028-060 FNPCD	4.85	6.00	28.00	35.3	34.0	70.00	2.430	~	0~	R~	2~	ZYL01F6000h$06~	~	3384445
SCD 0637-032-080 FNPCD	6.37	8.00	32.00	41.6	32.0	76.00	3.190	~	0~	R~	2~	ZYL01F8000h$06~	~	3384446
