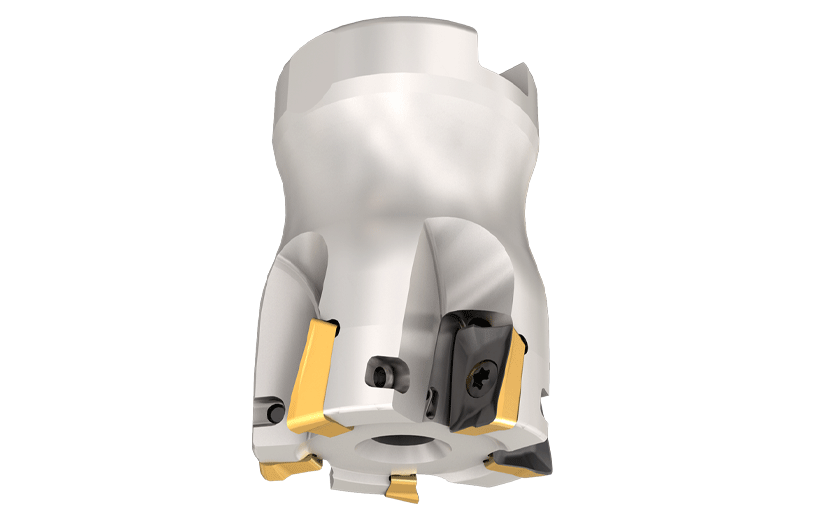

HM90 F90AP-10-JHP : HELI2000 JET CUT, 90° JHP face mills carrying HM90 AP 1003/HM90 AD...1505(-)90° JHP Face Mills Carrying HELI2000 and HELIMILL Inserts(+)

Related tools for : APCT 100304R-HM

Designation	DC	CICT	APMX	OAL	DHUB	DCONMS	RPMX	RMPX°	Arbor	MIID		HAND	CSP	KAPR	NOF	CCMS	ZEFF	GICAT
HM90 F90AP D032-5-16-JHP	32.00	5	9.80	45.00	30.40	16.00	35300	2.2	A	APKT 1003PDR-HM	0.17	R~	1~	90.0~	5~	FDA02G1600H$07~	5~	3365375
HM90 F90AP D040-6-16-JHP	40.00	6	9.80	40.00	38.40	16.00	31600	1.9	A	APKT 1003PDR-HM	0.29	R~	~	~	~	0000~	~	3199091
HM90 F90AP D040-6-22-JHP	40.00	6	9.80	50.00	38.00	22.00	31600	1.9	A	APKT 1003PDR-HM	0.27	R~	1~	90.0~	6~	FDA02G2200H$07~	6~	3365376
HM90 F90AP D050-7-22-JHP	50.00	7	9.80	50.00	48.00	22.00	28200	1.4	A	APKT 1003PDR-HM	0.49	R~	1~	90.0~	7~	FDA02G2200H$07~	7~	3365377

Use adaptation only with face coolant outlets ( click on "More Info")
