TPMT : 11° positive triangular inserts. Positive chipformer, low cutting forces. Used for internal turning and for finishing.(-)Triangular 11° Positive Inserts with a Positive Chipformer Exerts Low Cutting Forces for Internal Finish Turning(+)

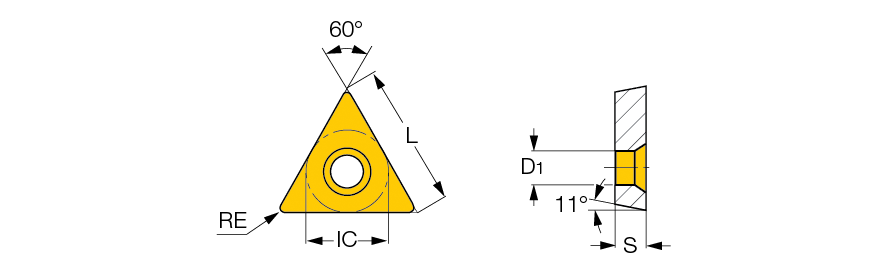

Representative Image

Designation	L	IC	S	RE	D1	ap (min)	ap (max)	ft (min)	ft (max)	CBMD	AN	CNC	NIS	IFS	SSC	SC	CEDC	GRDMFG	INSI	INST	LE	Utility	WEP	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on Grade No. for Cutting Speed
TPMT 110202	11.00	6.35	2.38	0.20	3.00	0.20	2.00	0.05	0.25	-~	11.0~	3~	1~	3~	11~	T~	3~	IC807 ~	2-0~	TPMT~	-~	U~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	AlTiN+TiN ~	5550483	3	IC830 IC807 IC907
TPMT 110204	11.00	6.35	2.38	0.40	3.00	1.00	3.00	0.12	0.30	-~	11.0~	3~	1~	3~	11~	T~	3~	IC20 ~	2-1~	TPMT~	-~	U~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	AlTiN+TiN ~	5568601	7	IC830 IC9250 IC8150 IC20 IC70 IC807 IC907
TPMT 110208	11.00	6.35	2.38	0.80	3.00	1.00	4.00	0.15	0.30	-~	11.0~	3~	1~	3~	11~	T~	3~	IC20 ~	2-2~	TPMT~	-~	U~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	AlTiN+TiN ~	5550486	4	IC830 IC9250 IC8150 IC20
TPMT 160304	16.50	9.52	3.18	0.40	4.30	1.00	4.00	0.12	0.30	-~	11.0~	3~	1~	3~	16~	T~	3~	IC20 ~	321~	TPMT~	-~	U~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	AlTiN+TiN ~	5568599	10	IC830 IC8350 IC9350 IC8250 IC9250 IC9150 IC20 IC70 IC807 IC907
TPMT 160308	16.50	9.52	3.18	0.80	4.30	5.00	12.00	0.15	0.35	-~	11.0~	3~	1~	3~	16~	T~	3~	IC20 ~	322~	TPMT~	-~	U~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	AlTiN+TiN ~	5600418	9	IC830 IC635 IC50M IC9250 IC9150 IC520M IC20 IC807 IC907
