DNMA : Double-sided 55° rhombic inserts for short chipping materials such as cast iron.(-)Double-Sided 55° Rhombic Inserts for Short Chipping Materials such as Cast Iron(+)

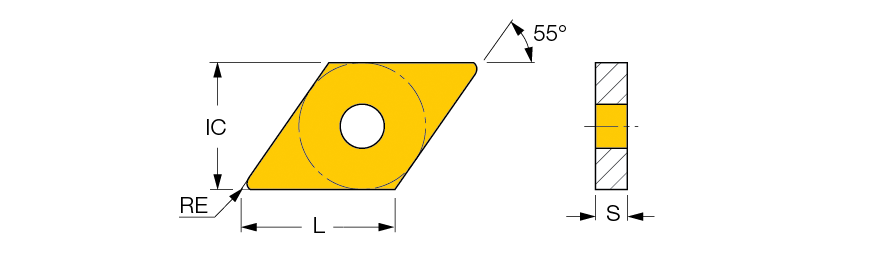

Representative Image

Related inserts for : PDJNL 2525M-15

Designation	L	IC	S	RE	ft (min)	ft (max)	ap (min)	ap (max)	CBMD	AN	CEDC	SC	CNC	GRDMFG	IFS	INSI	INST	NIS	Utility	WEP	ApplMat	CastIron	HardMa	CutEdMat	Coating	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on Grade No. for Cutting Speed
DNMA 150412	15.50	12.70	4.76	1.20	0.05	0.40	1.50	4.00	A~	0.0~	4~	D~	4~	IC428 ~	2~	433~	DNMA~	2~	U~	0~	Steel~	Cast Iron~	Hard Materials~	Carbide~	TiC+Al2O3 ~	5593093	2	IC428 IC5005
DNMA 150608	15.50	12.70	6.35	0.80	0.03	0.40	1.50	4.00	A~	0.0~	4~	D~	4~	IC428 ~	2~	442~	DNMA~	2~	U~	0~	Steel~	Cast Iron~	Hard Materials~	Carbide~	TiC+Al2O3 ~	5598442	3	IC5010 IC428 IC5005
DNMA 150612	15.50	12.70	6.35	1.20	0.05	0.40	1.50	4.00	A~	0.0~	4~	D~	4~	IC428 ~	2~	443~	DNMA~	2~	U~	0~	Steel~	Cast Iron~	Hard Materials~	Carbide~	TiC+Al2O3 ~	5590712	3	IC5010 IC428 IC5005

For dimensions and tolerances, see more info.
