GIQR/L-A18 : CHAMGROOVE internal boring and profiling inserts(-)Internal Boring and Profiling Inserts(+)

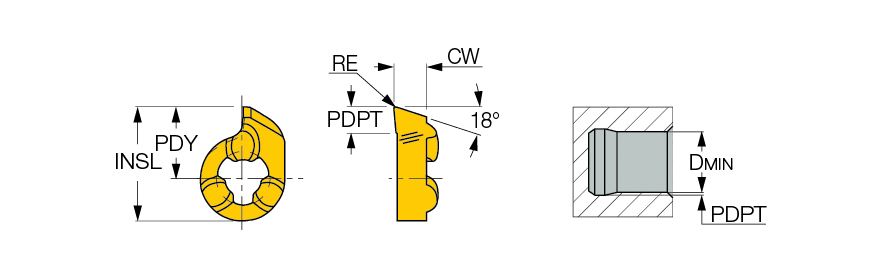

Left-hand shown

Left-hand shown

Designation		GIFUT5	DMIN	CW	RE	PDPT	INSL	PDY	ap (min)	ap (max)	ft (min)	ft (max)	fg (min)	fg (max)	IH	S1	CBMD	AN	Mod	SC	Ins. ftr	ClssID	W1	ISYC	RAL	PSIRR		CECC	CEDC	CNC	GRDMFG	GTC	IFS	IIC	INSI	INST	ISCTMP	LOGH	LOGL	LOGW	NIS	Precise	PSIRL	UST	WEP	ApplMat	StaSteel	SupTit	CutEdMat	Coating	GICAT	GIREM	giic	Grade Click on Grade No. for Cutting Speed
GIQL 8-A18-0.15		0	7.80	3.00	0.15	1.60	7.60	4.60	0.02	1.30	0.02	0.05	0.01	0.03	L	8~	M~	18.0~	GR300~	G~	X~	71DDA089C8D1E~	~	202-02~	-~	18.0~	0.00~	E~	1~	2~	IC528 ~	~	4~	IS$$55185810408~	8-A18-~	GIQL~	GETUIUMC~	0.00~	0.00~	0.00~	1~	P~	-~	C~	0~	Steel~	Stainless Steel~	Superalloys and titanium~	Carbide~	TiCN+TiN ~	6402677		1	IC528
GIQR 8-A18-0.15		0	7.80	3.00	0.15	1.60	7.60	4.60	0.02	1.30	0.02	0.05	0.01	0.03	R	8~	M~	18.0~	GR300~	G~	X~	71DDA089C8D1E~	~	202-02~	-~	-~	0.00~	E~	1~	2~	IC528 ~	~	4~	IS$$55185810408~	8-A18-~	GIQR~	GETUIUMC~	0.00~	0.00~	0.00~	1~	P~	18.0~	C~	0~	Steel~	Stainless Steel~	Superalloys and titanium~	Carbide~	TiCN+TiN ~	6402676		1	IC528
GIQL 11-A18-0.15		0	11.00	3.00	0.15	2.50	10.70	6.70	0.02	2.20	0.02	0.05	0.01	0.03	L	11~	M~	18.0~	GR300~	G~	X~	71DDA089C8D1E~	~	202-02~	-~	18.0~	0.00~	E~	1~	2~	IC528 ~	~	4~	IS$$39495805469903~	11-A18~	GIQL~	GETUIUMC~	0.00~	0.00~	0.00~	1~	P~	-~	C~	0~	Steel~	Stainless Steel~	Superalloys and titanium~	Carbide~	TiCN+TiN ~	6402681		1	IC528
GIQR 11-A18-0.15		0	11.00	3.00	0.15	2.50	10.70	6.70	0.02	2.20	0.02	0.05	0.01	0.03	R	11~	M~	18.0~	GR300~	G~	X~	71DDA089C8D1E~	~	202-02~	-~	-~	0.00~	E~	1~	2~	IC528 ~	~	4~	IS$$39495805469903~	11-A18~	GIQR~	GETUIUMC~	0.00~	0.00~	0.00~	1~	P~	18.0~	C~	0~	Steel~	Stainless Steel~	Superalloys and titanium~	Carbide~	TiCN+TiN ~	6402680		1	IC528
