EBL-A-4 : 4 flute, 30° helix long solid carbide ball nose endmills.(-)4 Flute, 30° Helix Long Solid Carbide Ball Nose Endmills(+)

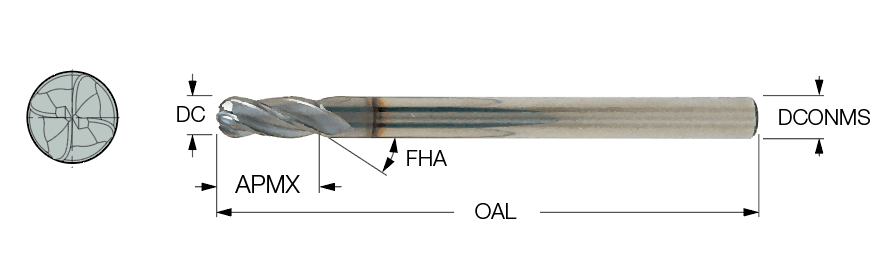

Representative Image

Designation	GIFUT5	DC	DCONMS	APMX	OAL	NOF	FHA	Shank	RE	RMPX°	RETOL	CCMS	COATP	CSP	GRDMFG	HAND	KAPR	LU	ZEFF	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	giic	Grade Click on Grade No. for Cutting Speed
EBL040A12-4C04	0	4.00	4.00	12.00	80.00	4	30.0	C	2.00~	90.0~	0.010	ZYL01F4000h$06~	~	0~	IC900 ~	R~	~	-~	4~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiN ~	5620588	1	IC900
EBL060A16-4C06	1	6.00	6.00	16.00	100.00	4	30.0	C	3.00~	90.0~	0.010	ZYL01F6000h$06~	~	0~	IC900 ~	R~	~	-~	4~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiN ~	5620435	1	IC900
EBL070A16-4C07	0	7.00	7.00	16.00	100.00	4	30.0	C	3.50~	90.0~	0.010	ZYL01F7000h$06~	~	0~	IC900 ~	R~	~	-~	4~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiN ~	5620850	1	IC900
EBL080A20-4C08	1	8.00	8.00	20.00	100.00	4	30.0	C	4.00~	90.0~	0.010	ZYL01F8000h$06~	~	0~	IC900 ~	R~	~	-~	4~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiN ~	5620437	1	IC900
EBL090A20-4C09	0	9.00	9.00	20.00	100.00	4	30.0	C	4.50~	90.0~	0.010	ZYL01F9000h$06~	~	0~	IC900 ~	R~	~	-~	4~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiN ~	5620851	1	IC900
EBL100A22-4C10	1	10.00	10.00	22.00	100.00	4	30.0	C	5.00~	90.0~	0.010	ZYL01G1000h$06~	~	0~	IC900 ~	R~	~	-~	4~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiN ~	5620589	1	IC900
EBL120A25-4C12	1	12.00	12.00	25.00	100.00	4	30.0	C	6.00~	90.0~	0.012	ZYL01G1200h$06~	~	0~	IC900 ~	R~	~	-~	4~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiN ~	5620590	1	IC900
EBL160A32-4C16	1	16.00	16.00	32.00	125.00	4	30.0	C	8.00~	90.0~	0.012	ZYL01G1600h$06~	~	0~	IC900 ~	R~	~	-~	4~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiN ~	5620852	1	IC900

Profiling in deep cavities

Milling
Main Application

Plunging & Recessing
Sub Application
