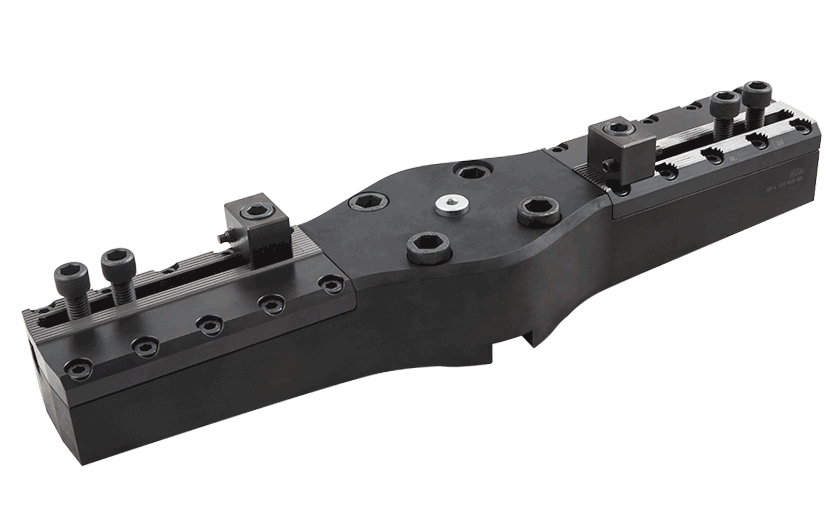

TCH AL : Aluminum twin cutter heads for rough and fine boring operations, Diameter range 200-1200 mm.(-)Aluminum Twin Cutter Heads for Rough and Fine Boring Operations, Diameter Range 200-1200 mm(+)

Designation	DCN	DCX	BD	DCONMS	DBC	SS	OAW	CXT	BH		CSP	OHN	LSCMS	L3	RPMX		S1	BMC	Assbldrw	LTA	LTA_2	WTA	WTA_2	HTA	HTA_2	ISCTMP	BSC	ClssID	GTC	GICAT
TCH AL200	200.0	602.0	194.00	40.00	66.70	80	-	-	54.00	Y~	1	0.0~	0.00~	0.00~	700	3.20	9~	S~	20~	54.10~	~	~	~	~	~	~	0~	~	~	4550239
TCH AL300	300.0	702.0	288.00	40.00	66.70	80	-	-	54.00	Y~	1	0.0~	0.00~	0.00~	400	3.90	9~	S~	20~	36.07~	~	~	~	~	~	~	0~	~	~	4550240
TCH AL400	400.0	802.0	394.00	40.00	66.70	80	-	1/4GAS	61.00	N~	0	0.0~	0.00~	0.00~	300	6.90	9~	S~	20~	61.00~	~	~	~	~	~	~	0~	~	~	4550241
TCH AL500	500.0	902.0	494.00	60.00	101.60	80,110	128.0	1/4GAS	69.00	N~	0	0.0~	0.00~	0.00~	200	8.70	9~	S~	20~	69.09~	~	~	~	~	~	~	0~	~	~	4551090
TCH AL600	600.0	1002.0	594.00	60.00	101.60	80,110	128.0	1/4GAS	71.00	N~	0	0.0~	0.00~	0.00~	200	8.34	9~	S~	20~	71.00~	~	~	~	~	~	~	0~	~	~	4551091
TCH AL700	700.0	1102.0	694.00	60.00	101.60	80,110	128.0	1/4GAS	74.00	N~	0	0.0~	0.00~	0.00~	200	8.34	9~	S~	20~	74.00~	~	~	~	~	~	~	0~	~	~	4551092
TCH AL800	800.0	1202.0	794.00	60.00	101.60	80,110	128.0	1/4GAS	80.00	N~	0	0.0~	0.00~	0.00~	150	15.20	9~	S~	20~	80.00~	~	~	~	~	~	~	0~	~	~	4559933

Aluminum body, with steel serrated seats
The "O" position on the counterweight balances the BHF boring head for 200 mm boring diameter position. For every 10 mm change in boring diameter, move the counterweight by 1 measurement mark
Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability
For dimensions with various insert holders, click on "More Info"
