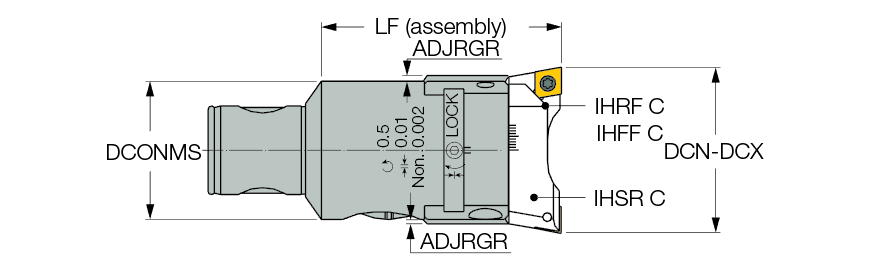

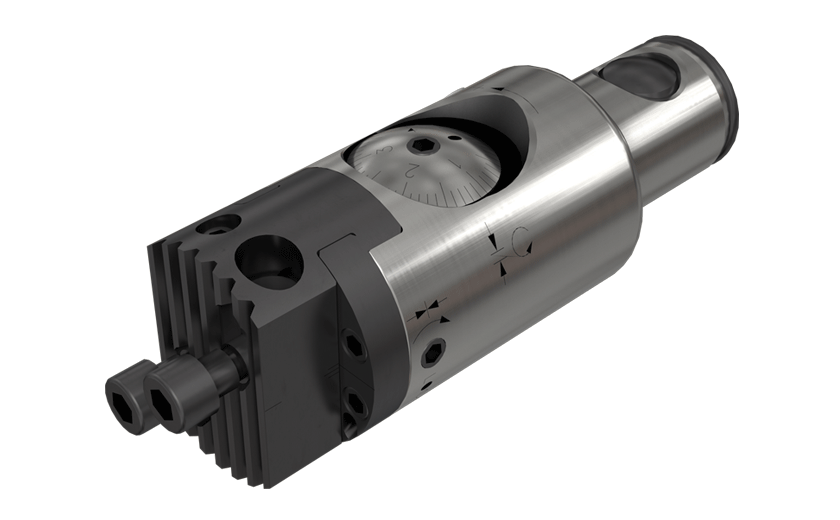

BHC MB : Combi rough and fine boring heads with 10 µm direct diametric adjustment and 2 µm by a vernier scale.(-)Combi Rough and Fine Boring Heads with 10 µm Direct Diameter Adjustment and 2 µm by a Vernier Scale(+)

Designation	DCONMS	LF	DCN	DCX	ADJRGR	IH	SS	OAL	BMC		CSP	RPMX	ISCTMP		LTA	LTA_2	WTA	WTA_2	HTA	HTA_2	BSC	CCFMS	CCFWS	CCTMS	CCTWS	ClssID	CUBPMS	CUBPWS	CZCMS	GTC	GICAT
BHC MB25-25-57	25.00	56.50	28.0	36.0	0.50	IH...-C	MB25~	~	S~	Y~	1~	10000	~	0.23	46.50~	~	~	~	~	~	0~	01~	22~	IMB~	ZYL~	71EAD3871D313~	C~	G~	0250~	~	4560109
BHC MB32-32-71	32.00	71.00	36.0	46.0	0.50	IH...-C	MB32~	~	S~	Y~	1~	10000	~	0.45	59.50~	59.50~	2.98~	-2.91~	5.1~	-5.1~	0~	01~	22~	IMB~	ZYL~	71EAD3871D313~	C~	G~	0320~	~	4560110
BHC MB40-40-90	40.00	90.00	46.0	60.0	1.00	IH...-C	MB40~	~	S~	Y~	1~	8000	~	0.70	76.00~	~	~	~	~	~	0~	01~	22~	IMB~	ZYL~	71EAD3871D313~	C~	G~	0400~	~	4560111
BHC MB50-50-87	50.00	87.00	60.0	75.0	1.00	IH...-C	MB50~	~	S~	Y~	1~	8000	~	1.21	67.80~	~	~	~	~	~	0~	01~	22~	IMB~	ZYL~	71EAD3871D313~	C~	G~	0500~	~	4560112
BHC MB63-63-109	63.00	109.00	75.0	95.0	2.00	IH...-C	MB63~	~	S~	Y~	1~	6000	~	2.70	84.30~	~	~	~	~	~	0~	01~	22~	IMB~	ZYL~	71EAD3871D313~	C~	G~	0630~	~	4560113
BHC MB80-80-130	80.00	130.00	95.0	120.0	2.00	IH...-C	MB80~	~	S~	Y~	1~	5000	~	4.41	0.00~	~	~	~	~	~	0~	01~	22~	IMB~	ZYL~	71EAD3871D313~	C~	G~	0800~	~	4560114

The roughing head precedes the finishing head by 0.2 mm. Each head can be adjusted independently
Important: insert radius for combi rough and fine boring must be the same size.
Click on individual item, then on "More Info" to see split view of its spare parts
