Family Designation: DGFHR/L-B-D..(R/L) Double- and single-ended, parting and grooving reinforced blades for double-ended DGN inserts.
Item Designation: DGFHL 26B-3D50R
H  CWN  CWX  WB WB_2 OAL OAH HF HBH CDX  CUTDIA  HAND MIID  APMX GICATGIREMgiic For Tornos Bechler, Emco 2000/20, 2000/26 machines 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia
2301574 1017<a href="javascript:OpenDxf('2301574', 'DGFHL 26B-3D50R' , 'IscarDxf' , '2301574-DGFHL 26B-3D50R');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2301574&itemDesc=DGFHL 26B-3D50R"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=2301574&itemDesc=DGFHL 26B-3D50R"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
For Tornos Bechler, Emco 2000/20, 2000/26 machines
Items Per Package : 1
Insert (double sided) limit is CDX=18 mm, If deeper penetration is required the insert should be changed to a single-ended insert DGNM type.
DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified.
3D Representation
Assembly Video

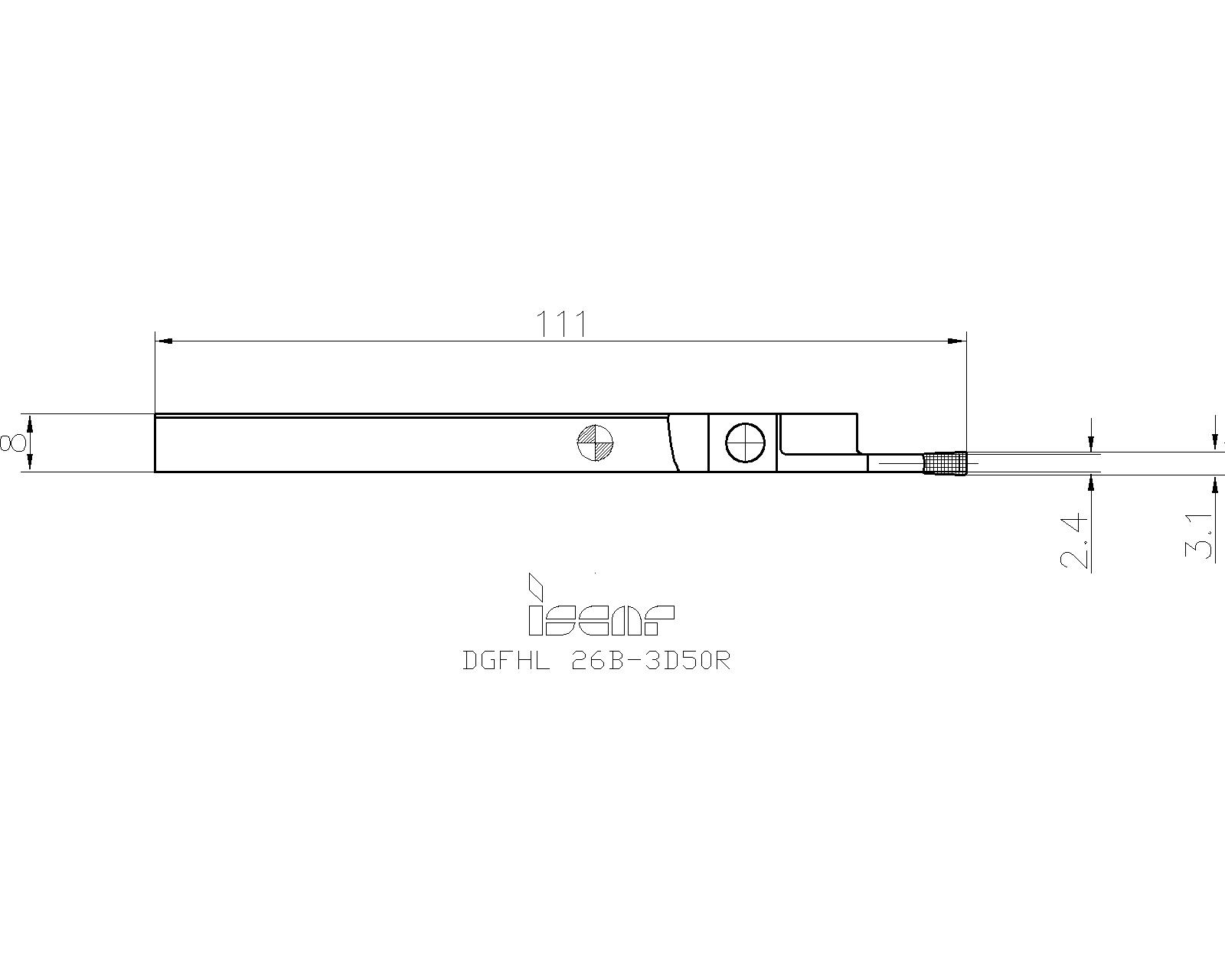

2D Representation
  Spare Parts
7002062SR M4X20 DIN912Socket head cap screw
7000039HW 3.0Hex key
