Family Designation: DGFH Double-ended parting and grooving blades carrying DO-GRIP and HELI-GRIP double-ended inserts. Blades with coolant channels are designated with "C".


Item Designation: DGFH 32C-4
B1 CWN  CWX  WB WB_2 OAL HF CUTDIA CSP  MIID  HAND APMX GICATGIREMgiic
32.04.004.00-3.2150.0024.869.01~DGNC 4003CN~4.00~2301770 These blades are suitable for turning, using GRIP 4 inserts @ Blades with frontal coolant holes (JET-CUT) 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
2301770 8336216<a href="javascript:OpenDxf('2301770', 'DGFH 32C-4' , 'IscarDxf' , '2301770-DGFH 32C-4');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2301770&itemDesc=DGFH 32C-4"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=2301770&itemDesc=DGFH 32C-4"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
These blades are suitable for turning, using GRIP 4 inserts
Blades with frontal coolant holes (JET-CUT)
Items Per Package : 1
DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified - click on "More Info"
3D Representation
Assembly Video

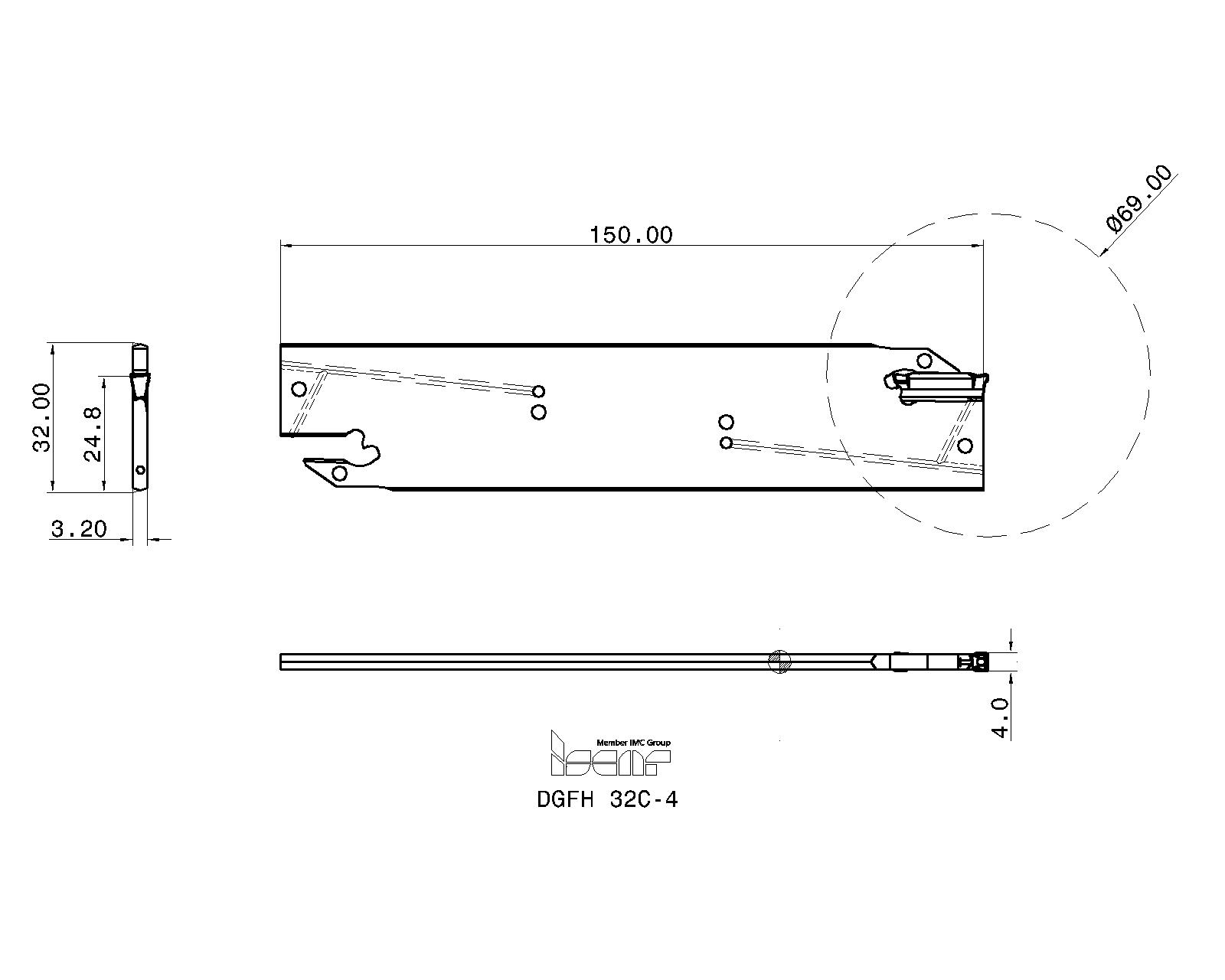

2D Representation
  Spare Parts
7001923EDG 33A
(Optional, should be ordered separately)		Extractor
Extractor		Details
4300255SGC 340Sealing screw
4300435SGCU 341
(Optional, should be ordered separately)		Cooling tube
7001006CGF 343
(Optional, should be ordered separately)		Fitting
Details
4300254CF 343
(Optional, should be ordered separately)		Fitting
7004585CGM 343
(Optional, should be ordered separately)		Fitting
Details
