Family Designation: DGFHR/L-B-D..(R/L)

Double- and single-ended, parting and grooving reinforced blades for double-ended DGN inserts.

Item Designation: DGFHR 26B-3D50

H	CWN	CWX	WB	WB_2	OAL	OAH	HF	HBH	CDX	CUTDIA	HAND	MIID	APMX	GICAT	GIREM	giic
26.0	3.00	3.18	2.40	8.0	110.00	31.5	21.4	3.7	18.00	50.0	R		3.18~	2398827	For Traub machines, model TNC 30, TNM 28, TNS 26/30/42/112, TNA 300, TNK 260	0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
2398827		8	2112	1832				<a href="javascript:OpenDxf('2398827', 'DGFHR 26B-3D50' , 'IscarDxf' , '2398827-DGFHR 26B-3D50');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2398827&itemDesc=DGFHR 26B-3D50"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=2398827&itemDesc=DGFHR 26B-3D50"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
For Traub machines, model TNC 30, TNM 28, TNS 26/30/42/112, TNA 300, TNK 260

Items Per Package : 1
Insert (double sided) limit is CDX=18 mm, If deeper penetration is required the insert should be changed to a single-ended insert DGNM type.
DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified.

3D Representation	Light Detailed	3D Required

Assembly Video

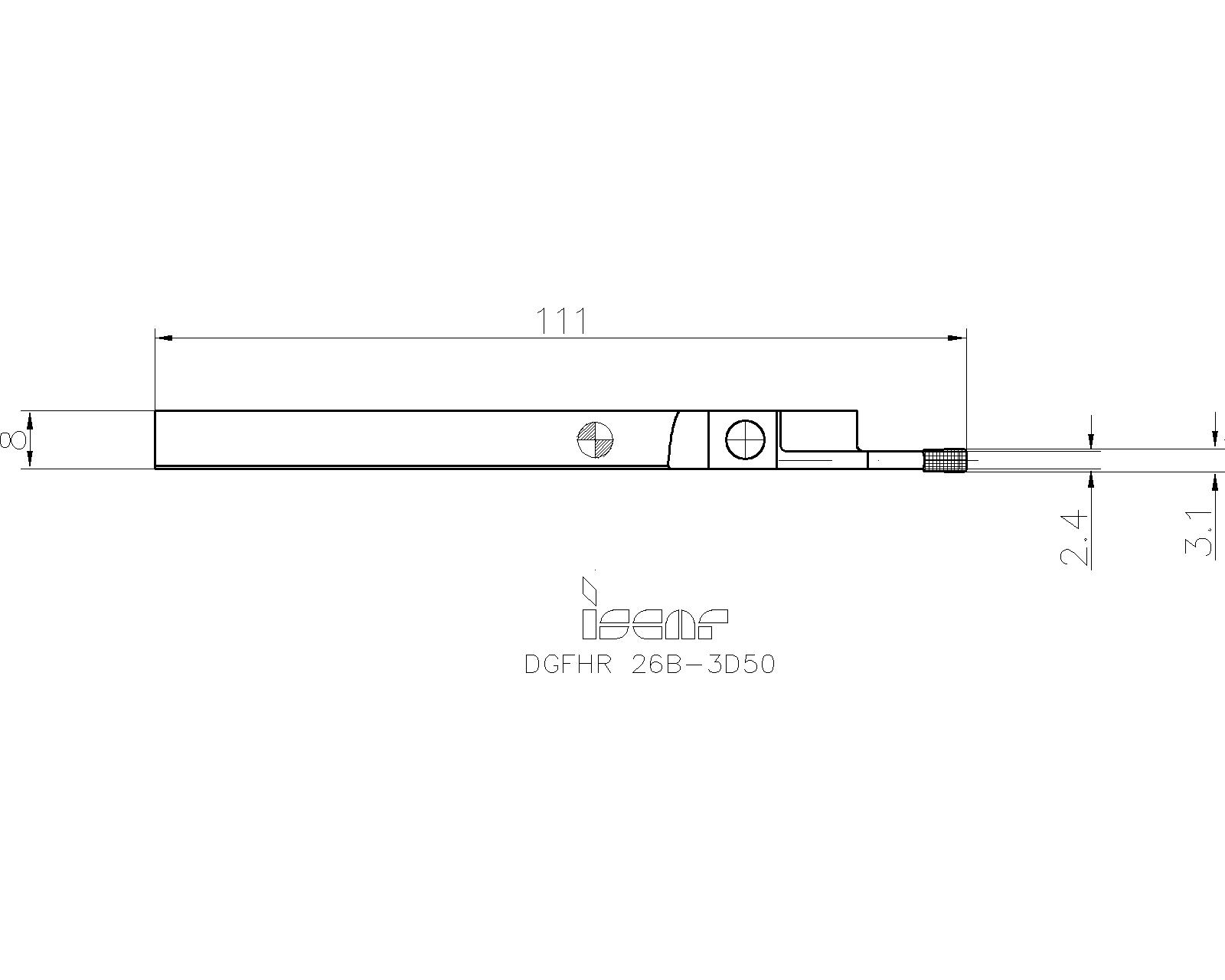

2D Representation	ISO	2D Required

Spare Parts
	7002062	SR M4X20 DIN912	Socket head cap screw	Details
	7000039	HW 3.0	Hex key	Details
