Family Designation: CR HFIR-M Cartridges for face grooving and face turning Dmin. 60 mm
Right-hand shown

Right-hand shown

Item Designation: CR HFIR-20M
CWN  CWX  HF B H OAL WF CDX HAND CW APMX CSP  GICATGIREMgiic
3.006.0020.020.024.072.0024.005.00R4.00~4.00~~2500432 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
2500432 308<a href="javascript:OpenDxf('2500432', 'CR HFIR-20M' , 'IscarDxf' , '2500432-CR HFIR-20M');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2500432&itemDesc=CR HFIR-20M"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=2500432&itemDesc=CR HFIR-20M"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
Used for shallow internal face machining to max. 5 mm depth of groove
Inserts in 3-6 mm widths can be mounted on the cartridges
Only DGN & GRIP 4.. - 6.. inserts can be used with the right-hand tools
For insert clamping instructions, click on "More Info"

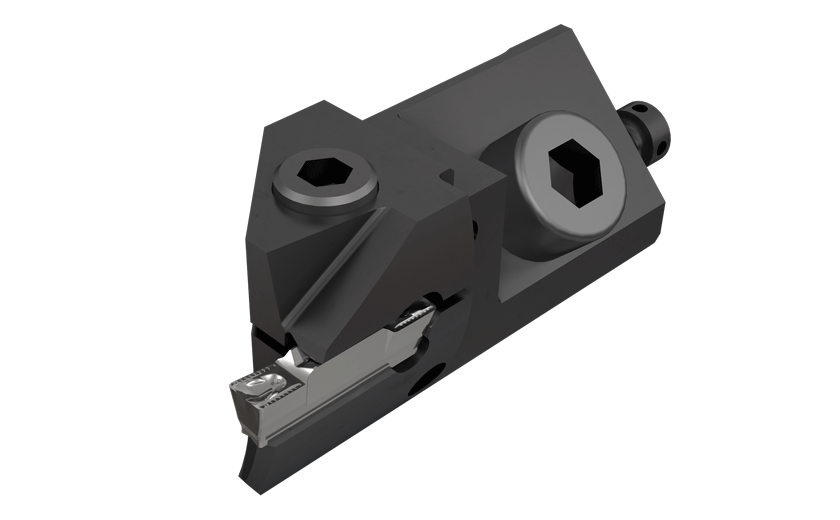

3D Representation
Assembly Video

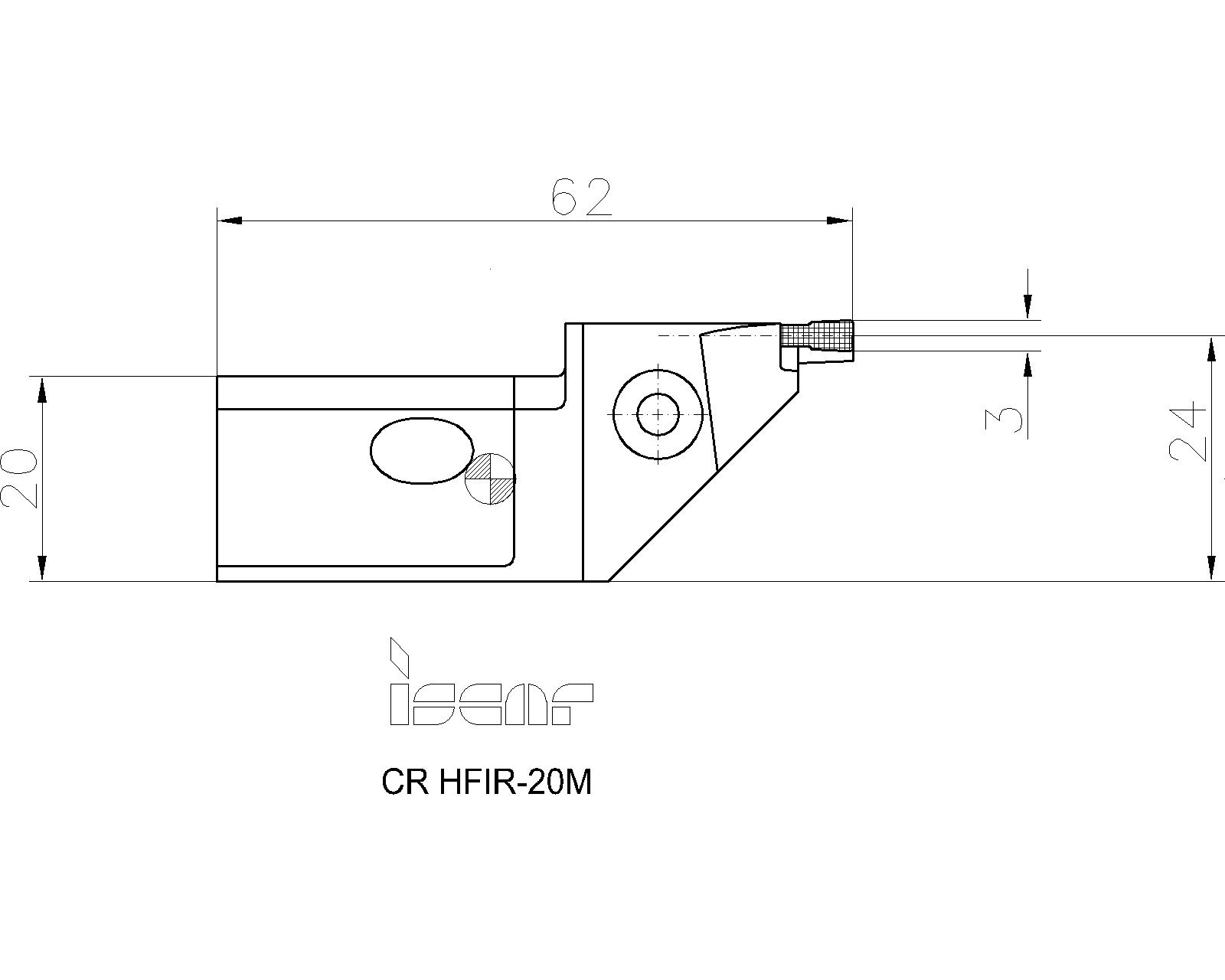

2D Representation
  Spare Parts
7001846SR M5X20DIN912Socket head cap screw
Upper locking screw		Details
7000043HW 4.0Hex key
Details
7002102SR 76-1401Radial adjust screw
Rear adjustment screw		Details
7002587SR M4X10 DIN913Socket set with flat
Side adjustment screw		Details
7000036HW 2.0Hex key
Details
