Home Page
>
Milling
>
>
FDN-LN08
>
FDN D063-06-16-LN08
Milling
Main Application
More Info
Related Insert
Related Holder
✖
Geometry Checker
×
Family Designation:
FDN-LN08

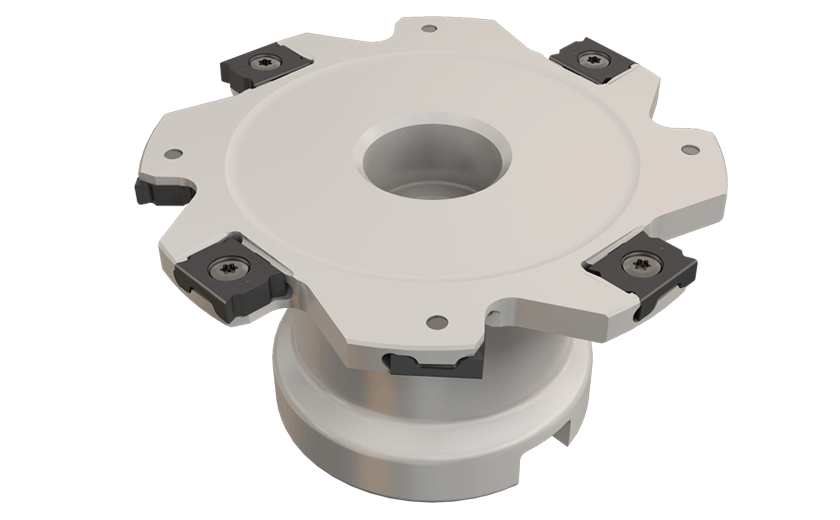

Full slot cutters carrying LNET 08 tangentially mounted inserts. A very effective solution for parting quality parts such as bearing caps at high cutting speeds.
Item Designation:
FDN D063-06-16-LN08

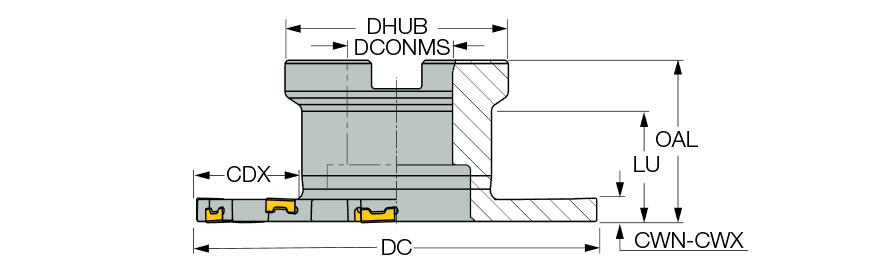

DC
CWN
CWX
CDX
CICT
ZEFP
DHUB
DCONMS
LU
OAL
Arbor
MIID
KAPR
NOF
CCMS
CSP
HAND
ZEFF
GICAT
GIREM
giic
63.00
6.00
6.50
14.50
8
4
38.40
16.00
25.0
35.00
A
0.26
LNET 083504-TN-N
90.0~
8~
FDA02G1600H$07~
0~
R~
4~
3106207
0
Catalog No
Files Package
GISC
AvailUSA
AvailEU
Add to favorites
P21 Properties File
Add to Assembly
DXF
Stock Availability
US EU E. Asia
STPL
P21
StockPerUser
3106207
1
0
248
<a href="javascript:OpenDxf('3106207', 'FDN D063-06-16-LN08' , 'IscarDxf' , '3106207-FDN D063-06-16-LN08');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>
<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3106207&itemDesc=FDN D063-06-16-LN08"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>
<a href="FilesDownload.aspx?FileType=P&cat=3106207&itemDesc=FDN D063-06-16-LN08"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
3D Representation
Light
Detailed
3D Required
Assembly Video

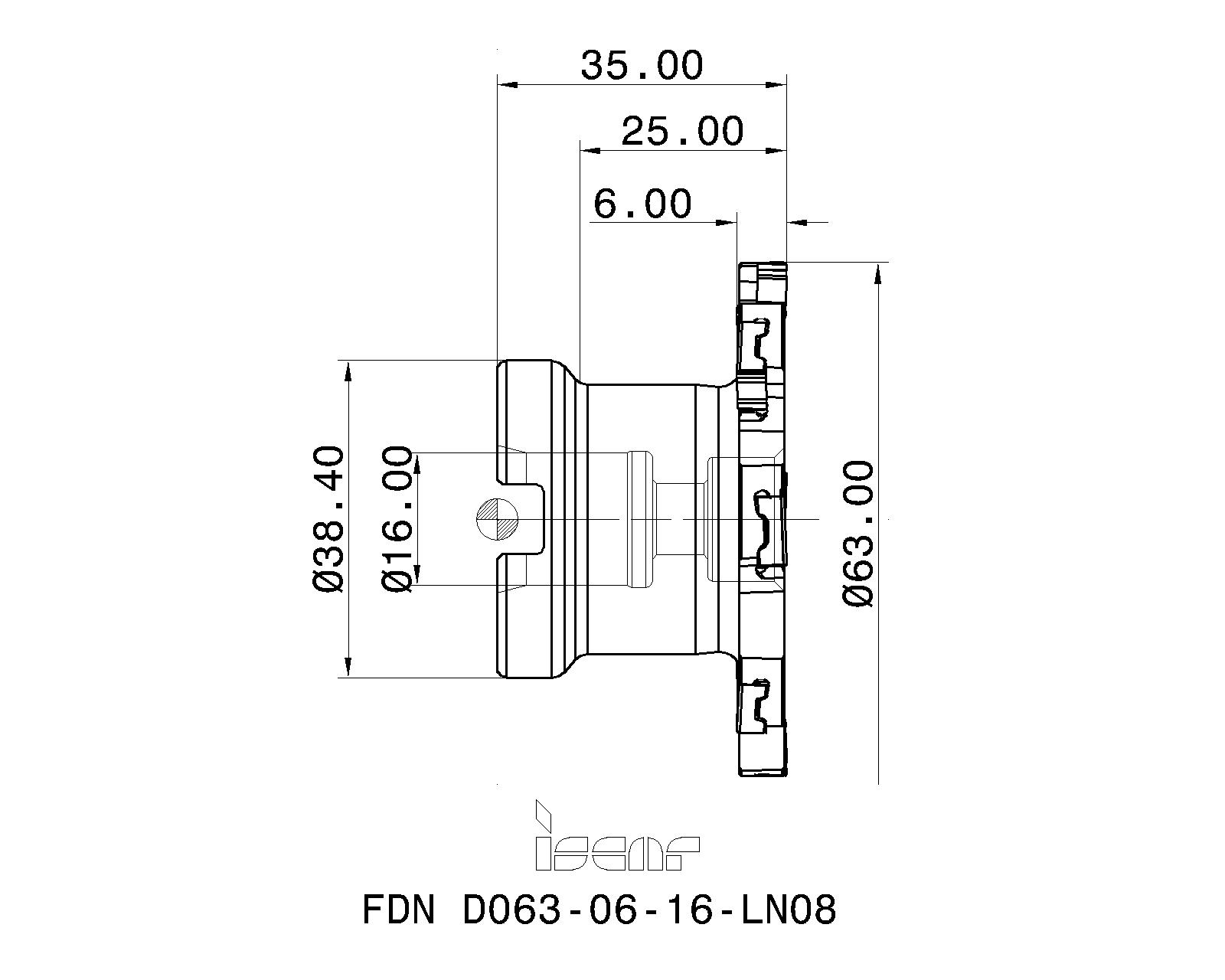

2D Representation
ISO
2D Required
Spare Parts
7003643
SR 114-018-L5.30
Torx screw
Details
Recommended tightening torque:0.6 N*m
7000428
T-6/5
Torx key flag
Details
For limiting torque, use optional 7007375 BLD 4 T06-0.65NM blade & 7007317 HSD 4-0.65NM handle.
7004473
T-6/3-L
Hex key
Details
For limiting torque, use optional 7007375 BLD 4 T06-0.65NM blade & 7007317 HSD 4-0.65NM handle.
7002454
SR M8X25DIN912
Socket head cap screw
Shell locking screw
Details
×
