Family Designation: BLP Endmills Three flute fully effective 240° ball nose endmills carrying double-sided inserts. Designed for roughing, semi finishing and finishing at high feed rates.


 COOLANT THROUGH TOOL
Item Designation: BLP D50-320-400-W50
DCX  RE APMX NOF  OAL LH DCONMS Shank  HAND MIID  CCMS CICT  CSP  KAPR  LU RMPX°  ZEFF GICATGIREMgiic
50.0025.0037.503400.00320.050.00WR~BLR D500-QCS 4.62ZYL10G5000h$06~3~1~~~~3~3106536 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
3106536 305<a href="javascript:OpenDxf('3106536', 'BLP D50-320-400-W50' , 'IscarDxf' , '3106536-BLP D50-320-400-W50');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3106536&itemDesc=BLP D50-320-400-W50"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=3106536&itemDesc=BLP D50-320-400-W50"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
For adaptation, click on "More Info"
3D Representation
Assembly Video

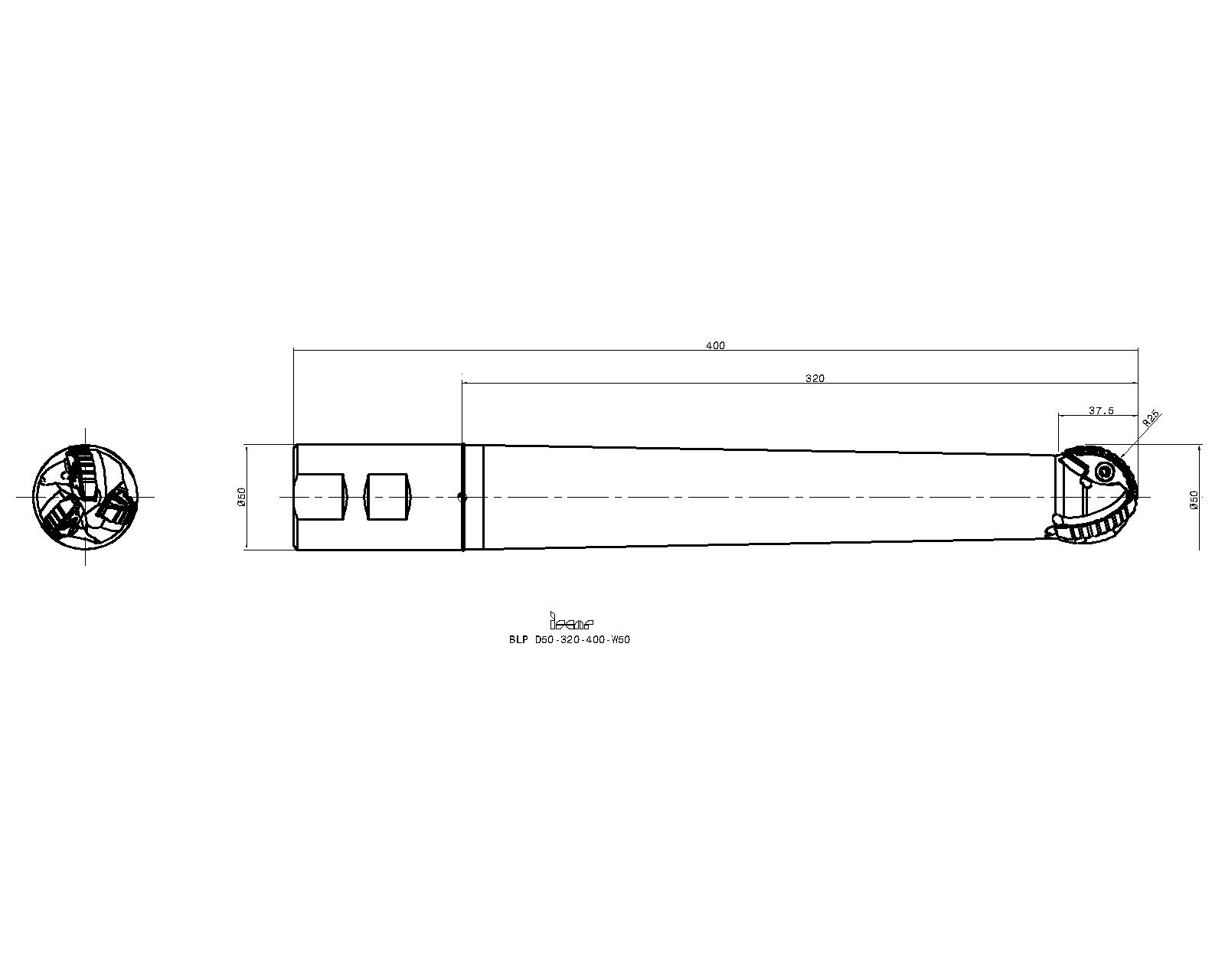

2D Representation
  Spare Parts
7006980SR M6X1-L18 IP25Torx screw
Details
Recommended tightening torque:12 N*m
7003067BLD IP25/S7Torx blade
Details
For limiting torque, use optional 7007029 BLD 6 T25IP blade & 7007221 TSA 6 5-14 handle.
7002097SW6-TT-handle
Details
