ISCAR Cutting Tools - Metal Working Tools - HM90 E90A-10 : 3195882

Geometry Checker ×

Family Designation: HM90 E90A-10

Endmills carrying HM90 AP.. 1003... inserts.

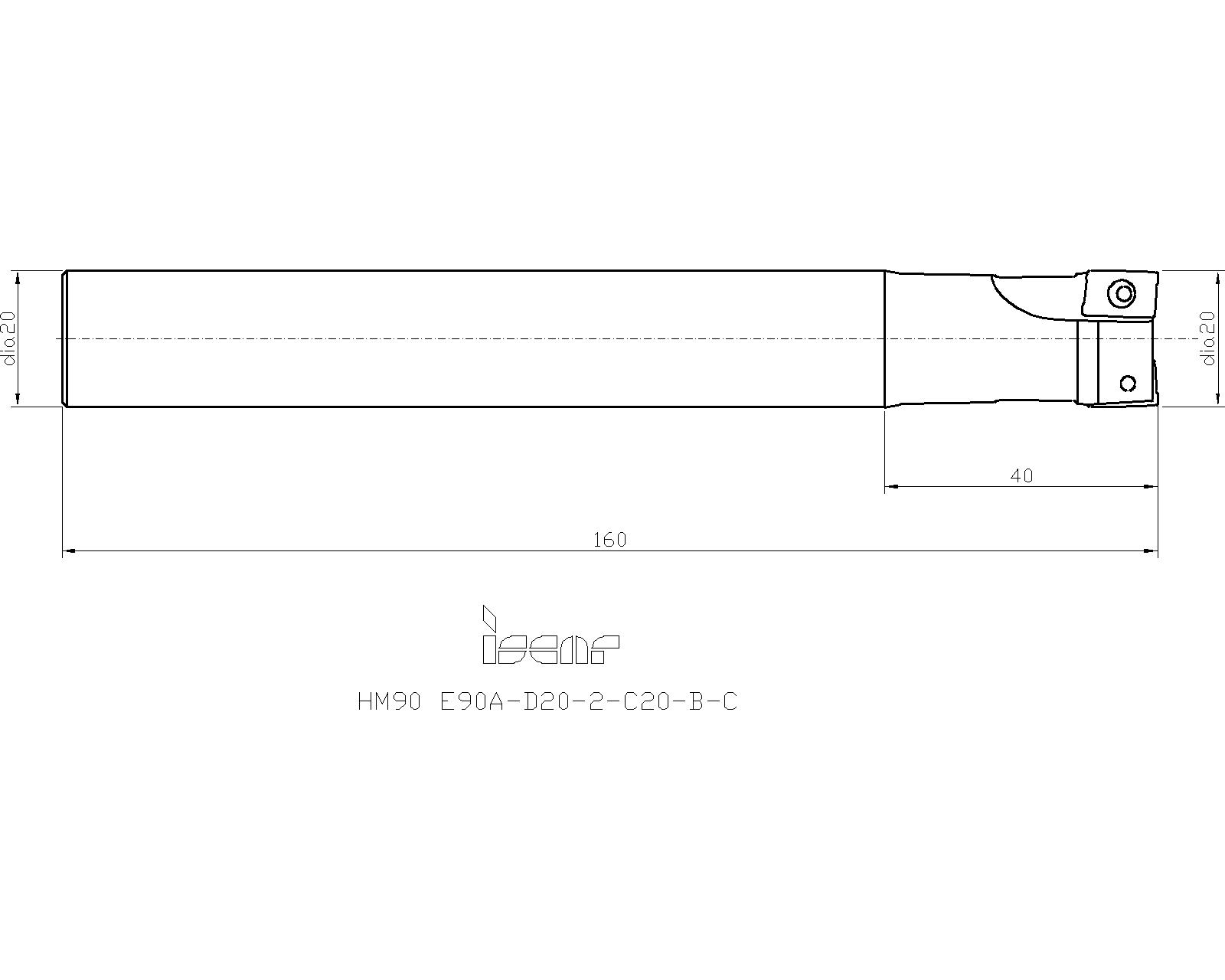

Item Designation: HM90 E90A-D20-2-C20-B-C

DC	CICT	APMX	OAL	LH	LU	RMPX°	DCONMS	Shank	CSP	RPMX		HAND	KAPR	NOF	CCMS	DCX	ZEFF	GICAT	GIREM	giic
20.00	2	9.80	160.00	40.0	38.0	7.5	20.00	C	1	55578	0.33	R~	90.0~	2~	ZYL01G2000h$06~	~	2~	3195882		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3195882		1	0	5				<a href="javascript:OpenDxf('3195882', 'HM90 E90A-D20-2-C20-B-C' , 'IscarDxf' , '3195882-HM90 E90A-D20-2-C20-B-C');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3195882&itemDesc=HM90 E90A-D20-2-C20-B-C"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3195882&itemDesc=HM90 E90A-D20-2-C20-B-C"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
For adaptation, click on "More Info".

Spare Parts
	7002441	SR 34-505/HG	Torx screw	Details
Recommended tightening torque:1.2 N*m
	7002348	BLD T08/M7	Torx blade	Details
For limiting torque, use optional 7007379 BLD 4 T08-1.2NM blade & 7007319 HSD 4-1.2NM handle.
	7002212	SW4-SD	Handle	Details
