ISCAR Cutting Tools - Metal Working Tools - MM S-A-HSK : 3318856

Geometry Checker ×

Family Designation: MM S-A-HSK

MULTI-MASTER threaded connection shanks with an integral HSK DIN 69893 form A tapered adaptation.

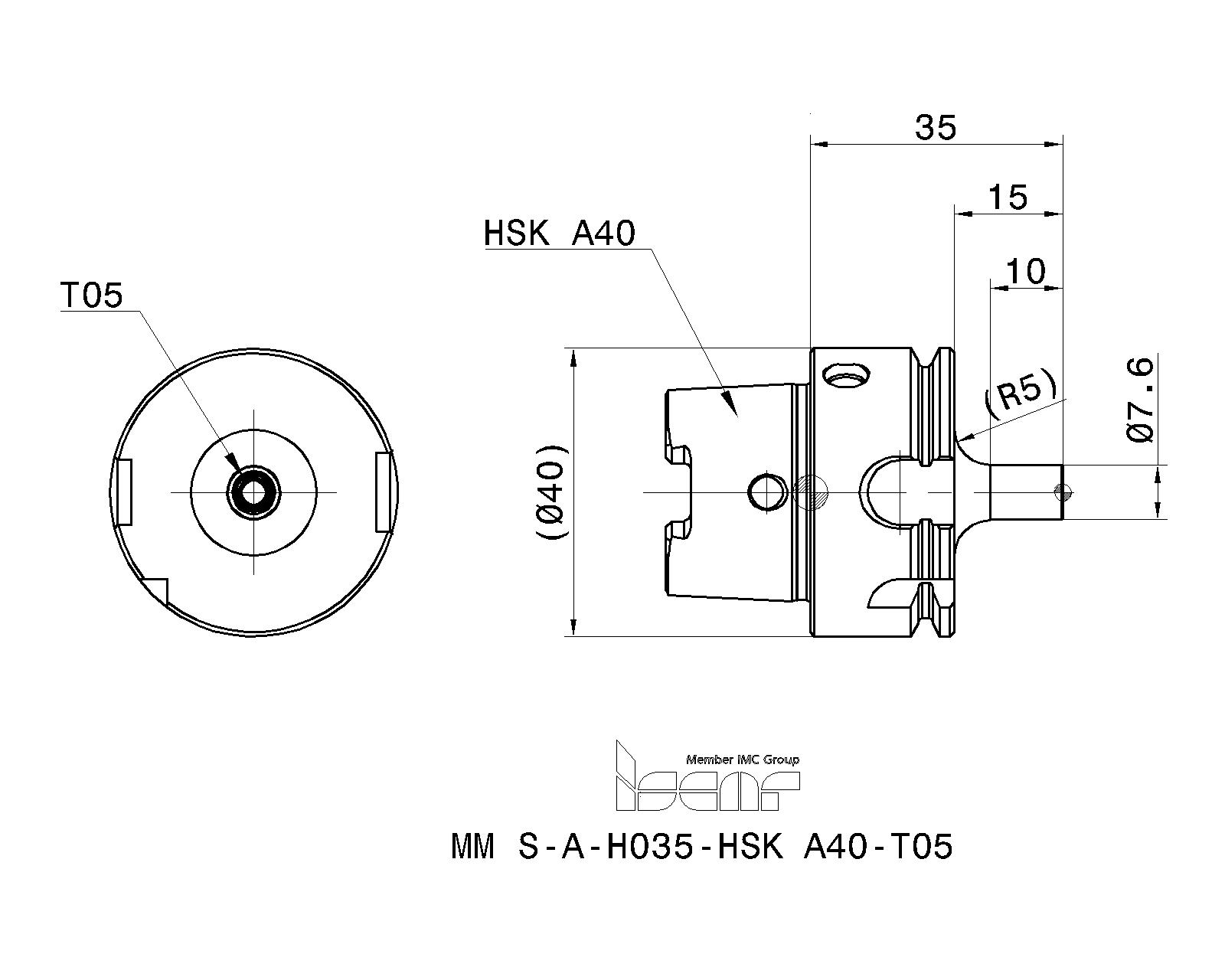

Item Designation: MM S-A-H035-HSK A40-T05

DCONMS	THSZWS	BD	LPR	LBX	LU	RE	OAL	DCP	CSP		CCMS	GICAT	GIREM	giic
40.00	T05	7.60	35.00	15.0	10.00	5.0	55.00~	1	0~	0.20	HSK01C0400$$$$~	3318856		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3318856		3	0	136				<a href="javascript:OpenDxf('3318856', 'MM S-A-H035-HSK A40-T05' , 'IscarDxf' , '3318856-MM S-A-H035-HSK A40-T05');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3318856&itemDesc=MM S-A-H035-HSK A40-T05"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3318856&itemDesc=MM S-A-H035-HSK A40-T05"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
Do not apply lubricant to the threaded connection
For adaptation options, click on "More Info"
