Family Designation: T890HT FLN-R13

90° face mills carrying T890 LN.T 1306... tangentially clamped inserts with 8 cutting edges.

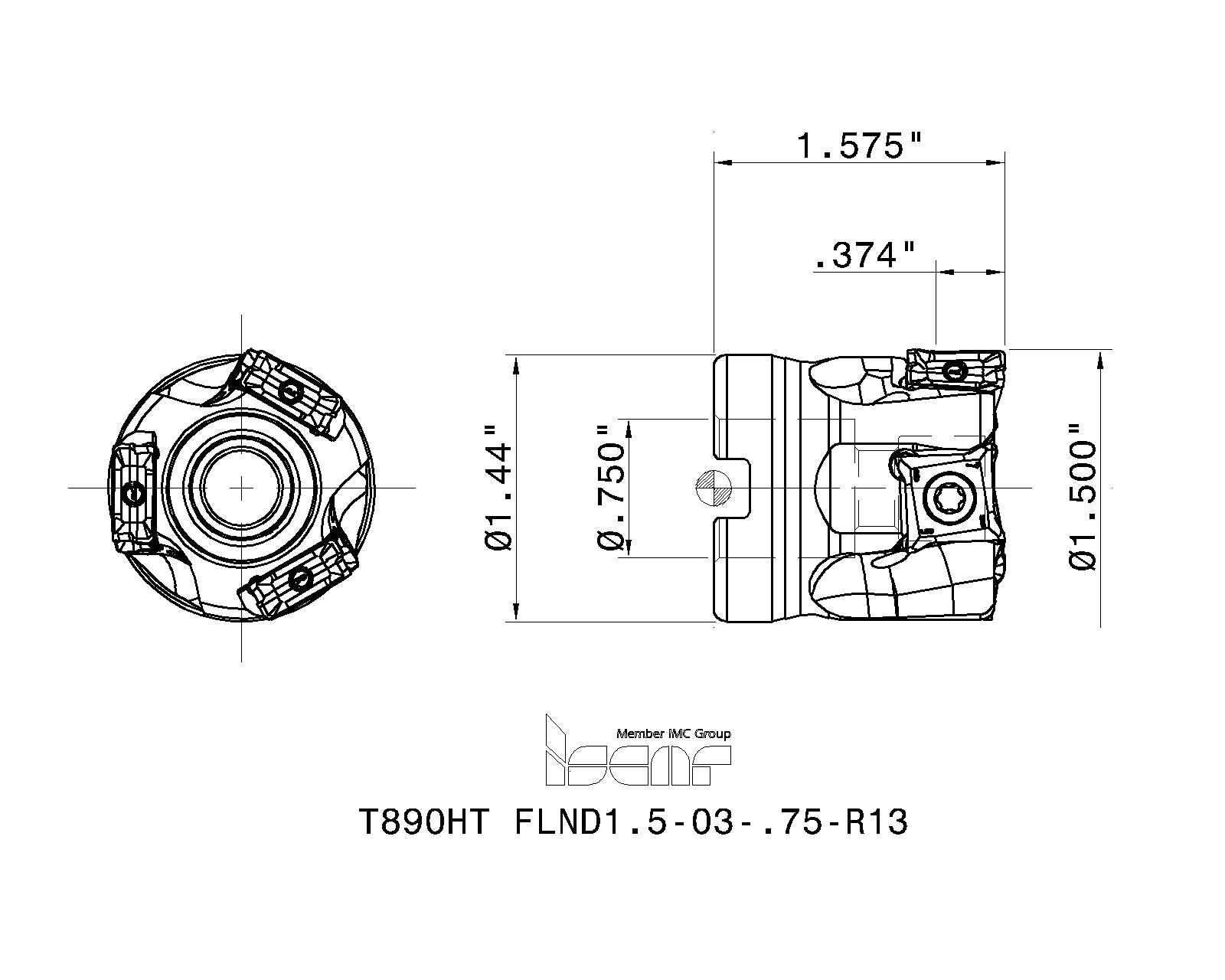

Item Designation: T890HT FLND1.5-03-.75-R13

DC	APMX	CICT	DCONMS	DHUB	OAL	Arbor		KAPR	NOF	CCMS	CSP	HAND	RMPX°	ZEFF	GICAT	GIREM	giic
1.500	.3740	3	.750	1.440	1.574	A	.39	~	~	FDA02R7500H$07~	1~	~	~	~	3332789		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3332789		8	0	0				<a href="javascript:OpenDxf('3332789', 'T890HT FLND1.5-03-.75-R13' , 'IscarDxfI' , '3332789-T890HT FLND1.5-03-.75-R13');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPLI&cat=3332789&itemDesc=T890HT FLND1.5-03-.75-R13"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3332789&itemDesc=T890HT FLND1.5-03-.75-R13"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1

Spare Parts
	3331146	SR 10513105-L10.5	Torx screw
Recommended tightening torque: 71.0 lbf*in
	7002552	BLD IP20/M7	Torx blade	Details
For limiting torque, use optional 7007027 BLD 6 T20IP blade & 7007221 TSA 6 5-14 handle.
	7003805	SW6-T-SH	T-handle	Details
	4398516	SR UNF 3/8X1-1421	Socket head cap screw
