Family Designation: T890HT FLN-R13

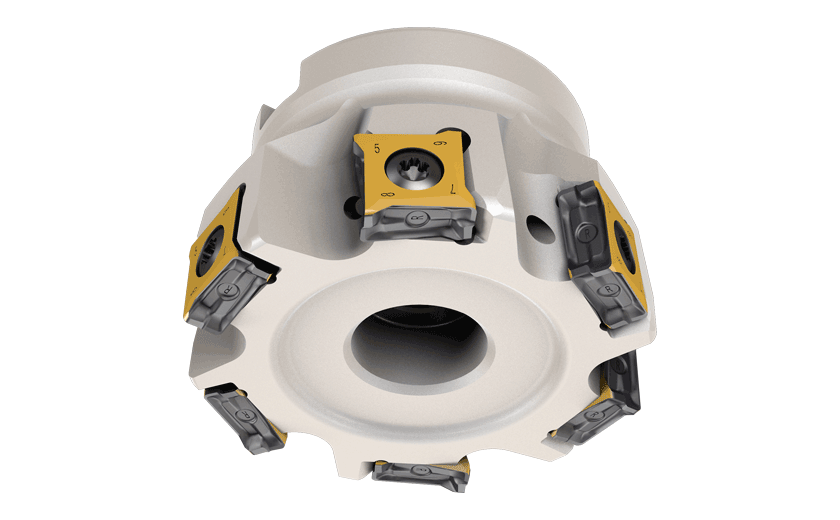

90° face mills carrying T890 LN.T 1306... tangentially clamped inserts with 8 cutting edges.

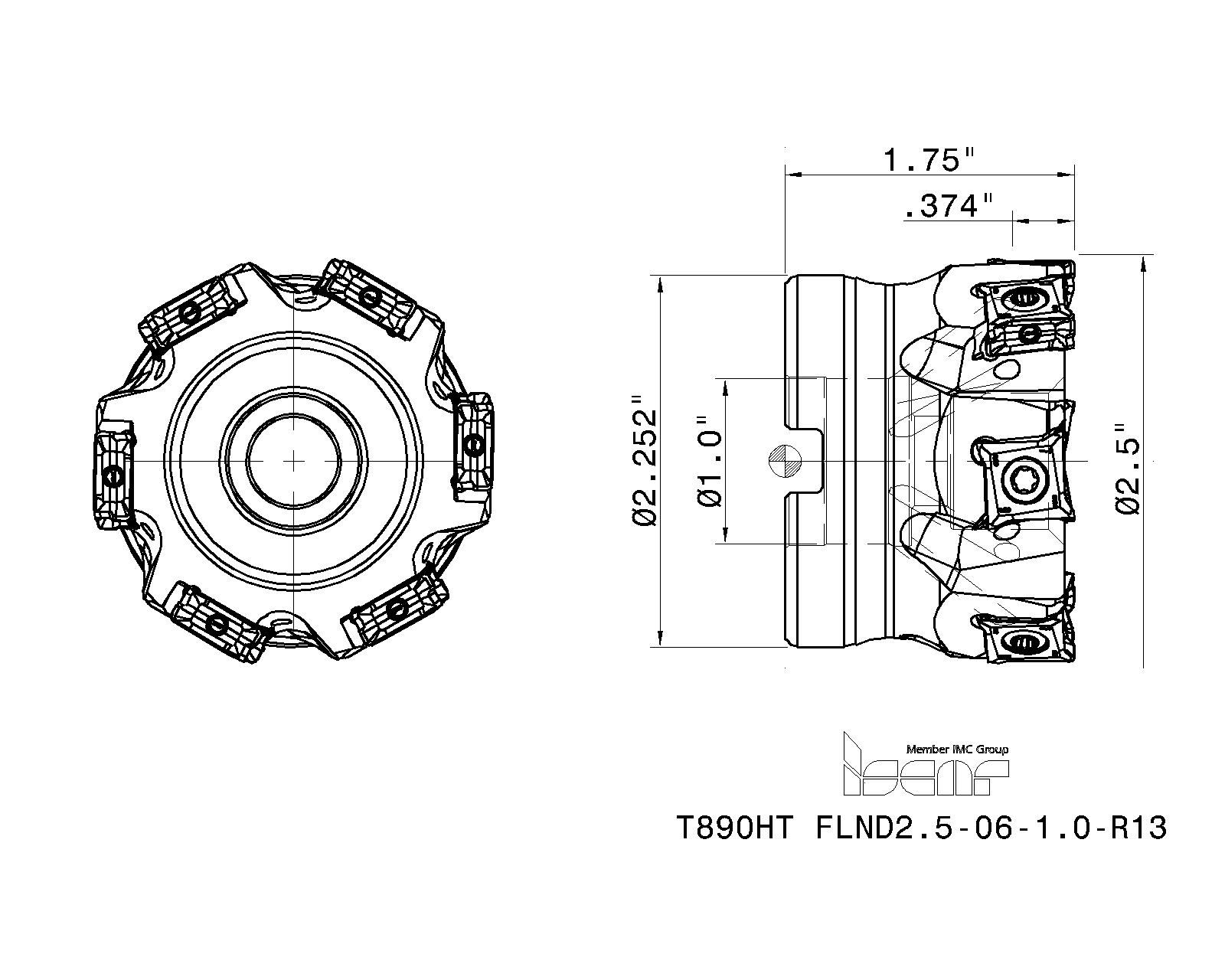

Item Designation: T890HT FLND2.5-06-1.0-R13

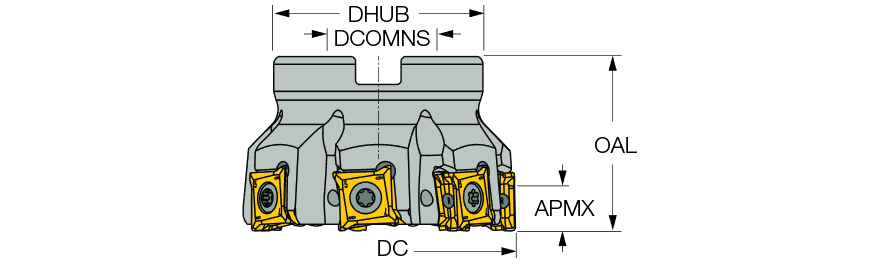

DC	APMX	CICT	DCONMS	DHUB	OAL	Arbor		KAPR	NOF	CCMS	CSP	HAND	RMPX°	ZEFF	GICAT	GIREM	giic
2.500	.3740	6	1.000	2.252	1.750	A	1.40	~	~	FDA02S1000H$07~	1~	~	~	~	3332797		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3332797		8	72	0				<a href="javascript:OpenDxf('3332797', 'T890HT FLND2.5-06-1.0-R13' , 'IscarDxfI' , '3332797-T890HT FLND2.5-06-1.0-R13');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPLI&cat=3332797&itemDesc=T890HT FLND2.5-06-1.0-R13"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3332797&itemDesc=T890HT FLND2.5-06-1.0-R13"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1

Spare Parts
	7007033	SR 10513105	Torx screw	Details
Recommended tightening torque: 71.0 lbf*in
	7002552	BLD IP20/M7	Torx blade	Details
For limiting torque, use optional 7007027 BLD 6 T20IP blade & 7007221 TSA 6 5-14 handle.
	7003805	SW6-T-SH	T-handle	Details
	7003479	SR UNF 1/2X20X1 B18.3	Socket head cap screw	Details
