Family Designation: SIR/L Internal threading bars.
Right-hand shown

Right-hand shown

Item Designation: SIL 0750 P22

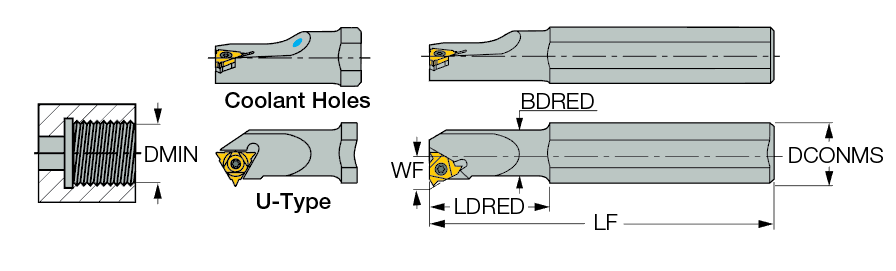

DCONMS BDRED LF LDRED DMIN WF IC CSP  BMC  HAND L GICATGIREMgiic
.750.7507.000-.950.510.500~0SL~.866~3890506 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileGTCDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
3890506 880<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxfI&stpFolder=0&stplFolder=STPLI&p21=3890506&cat=3890506&itemDesc=SIL 0750 P22"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a><a href="javascript:OpenDxf('3890506', 'SIL 0750 P22' , 'IscarDxfI' , '3890506-SIL 0750 P22');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPLI&cat=3890506&itemDesc=SIL 0750 P22"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=3890506&itemDesc=SIL 0750 P22"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
B-steel shank with coolant hole, C-carbide shank without coolant hole, CB-carbide shank with coolant hole
All toolholders are made for 1.5 helix angle
For GTGA inserts, use anvil AL 16-0

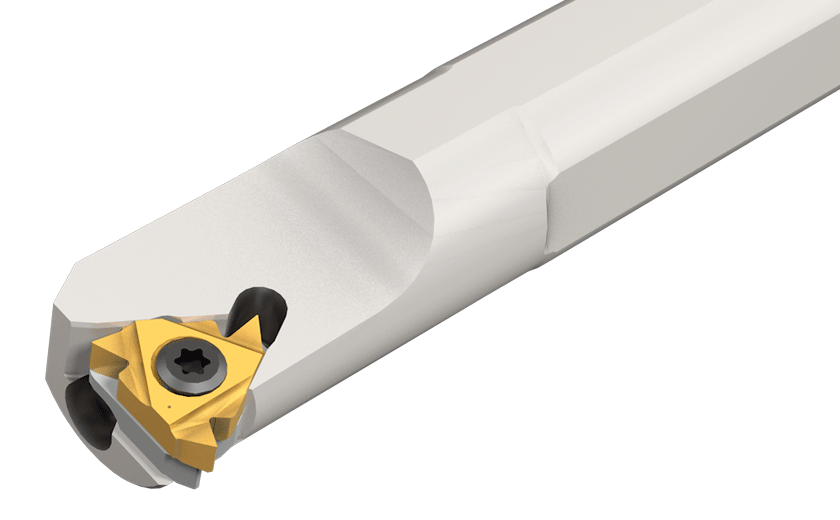

3D Representation

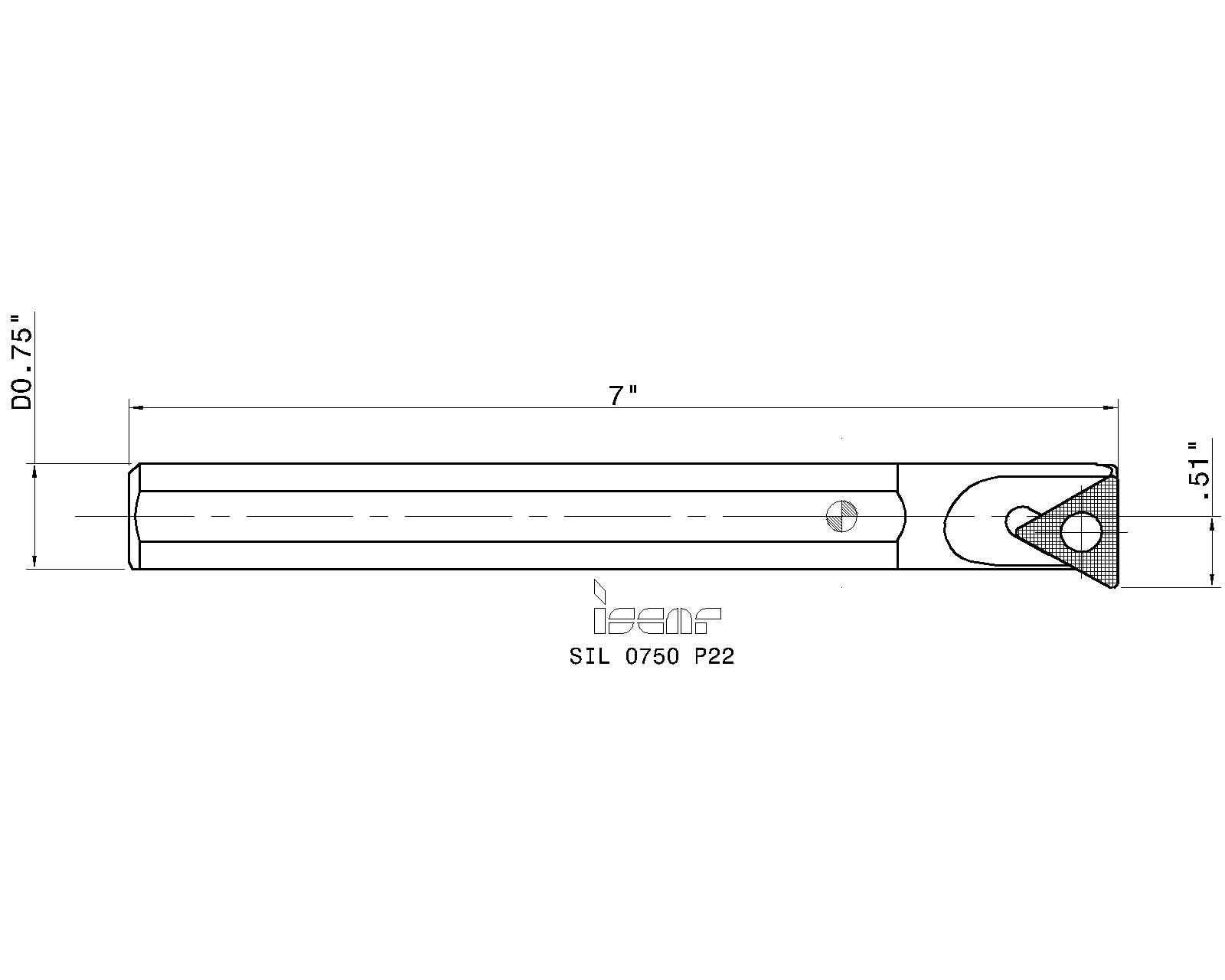

2D Representation
  Spare Parts
7065009SR 8-32-L12-S22STorx screw
Details
7000269T-20/5Torx key flag
Details
