Family Designation: HSK A-ER DIN6499 ER collet chucks with HSK DIN69893 form A tapered shanks.


 RUNOUT (INT) 0.003MM(.00012  HARDNESS 58-60  SURFACE FINISH N5  G2.5/25000 RPM  COOLANT THROUGH TOOL
Item Designation: HSK A100 ER32X160
DCONMS CSI DCONNWS  DCONXWS  BD BD_2 LPR LBX LB THID OAL DCP  CSP  CCMS GICATGIREMgiic
100.00ER322.020.050.0050.00160.00131.036.00M22X1.5210.00~13.321~01C$$$$~4504601 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
4504601 1160<a href="javascript:OpenDxf('4504601', 'HSK A100 ER32X160' , 'IscarDxf' , '4504601-HSK A100 ER32X160');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4504601&itemDesc=HSK A100 ER32X160"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=4504601&itemDesc=HSK A100 ER32X160"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
A cooling tube must be used with all coolant through HSK spindles (to be ordered separately).
For shank dimensions, Click on "More Info".
3D Representation
Assembly Video

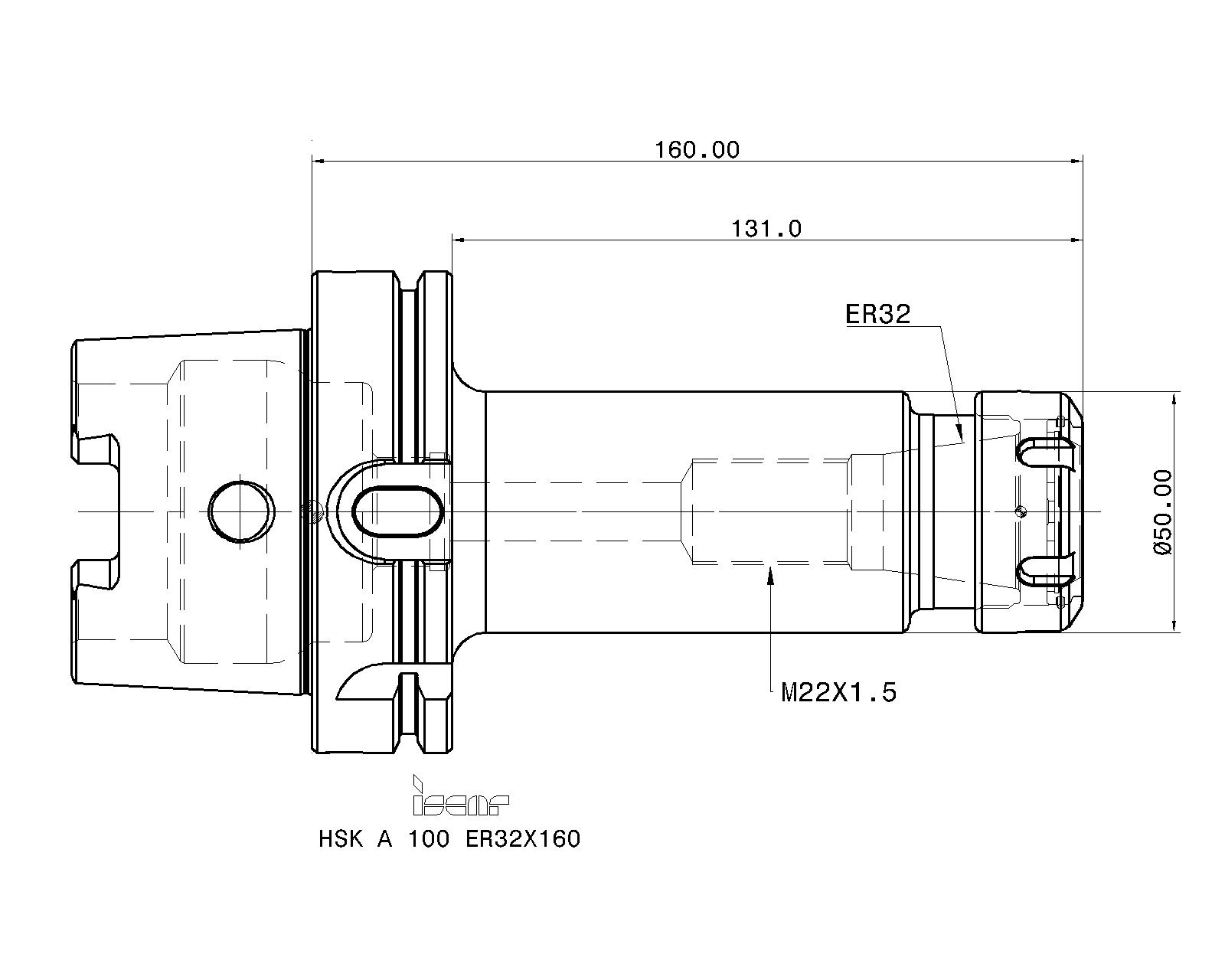

2D Representation
  Spare Parts
4513027NUT ER32 TOPER clamping TOP nut
4513014WRENCH ER32
(Optional, should be ordered separately)		Wrench for ER chuck nut
4516009PRESET ER-JET 22X1.5
(Optional, should be ordered separately)		Preset screw
4511691COOLING TUBE HSK A100
(Optional, should be ordered separately)		Cooling tube
4561259WRENCH COOL TUBE HSK100
(Optional, should be ordered separately)		Cooling tube wrench
4513100PRESET ER-JET 22X1.5L
(Optional, should be ordered separately)		Preset screw
4509077NUT ER32 TOP BIN
(Optional, should be ordered separately)		Balanceable ER nut
