ISCAR Cutting Tools - Metal Working Tools - DIN69871-MAXIN : 4505390 - DIN69871 40 MAXIN 20X 95
Geometry Checker ×

Family Designation: DIN69871-MAXIN Power chucks with DIN 69871 form AD/B taper shanks


 RUNOUT (INT) 0.003MM(.00012  TAPER  HARDNESS 58-60  SURFACE FINISH N5  COOLANT THROUGH TOOL
Item Designation: DIN69871 40 MAXIN 20X 95
SS DCONMS DCONNWS  DCONXWS  BD BD_2 LPR LB ADJRGA LSCWS THID CRKS OAL CDI  CSP  CCMS GICATGIREMgiic
4040.00~6.020.051.0053.0095.0076.013.0069.0M16M16163.40~01.201~SKG11C0400$$$$~4505390 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
4505390 10168<a href="javascript:OpenDxf('4505390', 'DIN69871 40 MAXIN 20X 95' , 'IscarDxf' , '4505390-DIN69871 40 MAXIN 20X 95');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4505390&itemDesc=DIN69871 40 MAXIN 20X 95"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4505390&itemDesc=DIN69871 40 MAXIN 20X 95"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
Use of DCONXWS diameter tools provides best performance, as collets reduce the gripping force.
B is the designation for coolant through flange .
3D Representation
Assembly Video

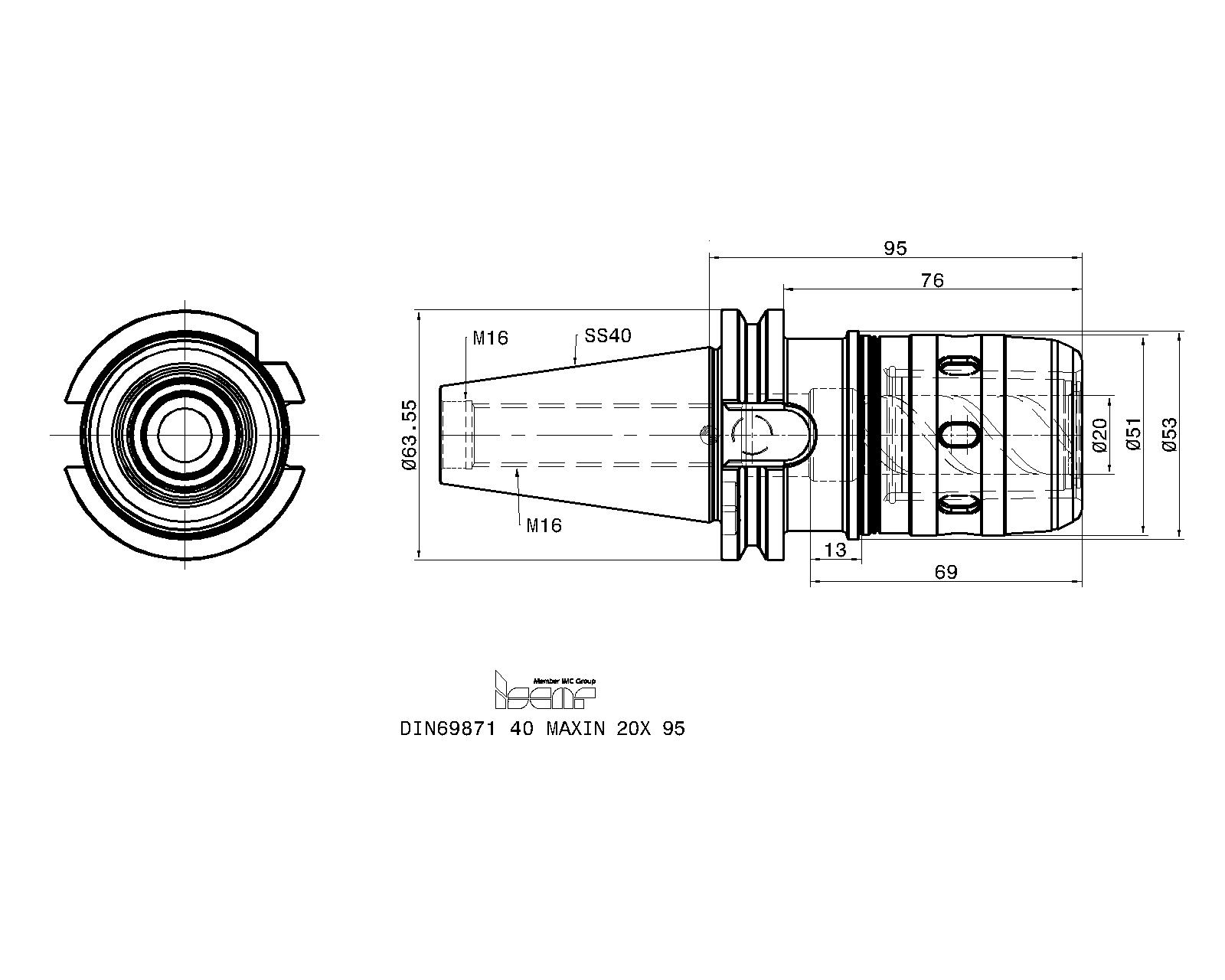

2D Representation
  Spare Parts
4504662WRENCH MAXIN 20 HOOK
(Optional, should be ordered separately)		MAXIN wrench
4504401EXTRACTOR SC COLLETS
(Optional, should be ordered separately)		SC extracting hook
