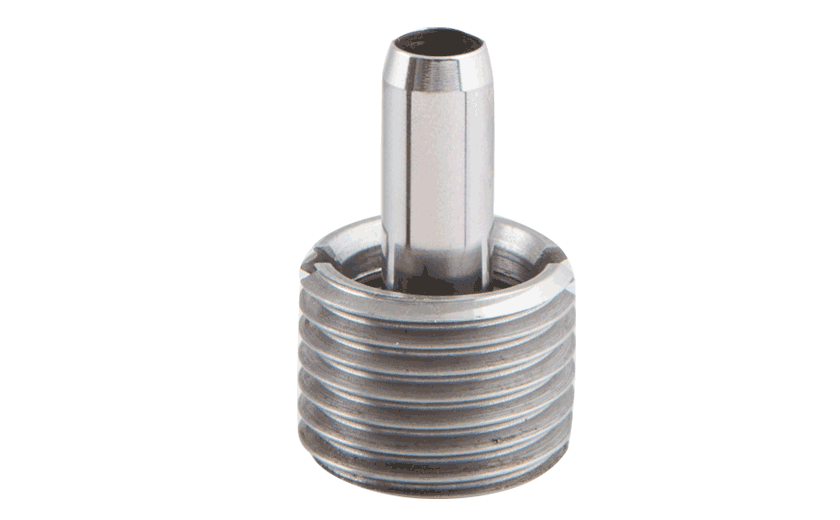

Family Designation: COOLING TUBE C# Cooling tubes for CAMFIX (ISO 26623-1) shanks.


Item Designation: COOLING TUBE C6
LPR CRKS OAL GICATGIREMgiic
15.00M20x231.004561606 0
Catalog NoFiles PackageGISCAvailUSAAdd to favoritesAvailFarEastGIFUT5Stock Availability
   US        EU     E. Asia		DXFSTPStockPerUser
4561606 1529600          <a href="javascript:OpenDxf('4561606', 'COOLING TUBE C6' , 'IscarDxf' , '4561606-COOLING TUBE C6');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=4561606&itemDesc=COOLING TUBE C6"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
Items Per Package : 1
Refer to machine manual before mounting Camfix Cooling Tube
Check that clamping drawbar has O-ring inside
Apply Loctite 542 (or equivalent) on coolant tube thread to secure/seal the thread
Mount cooling tube (ONLY) by using Cooling Tube C# wrench with "mount" side
3D Representation

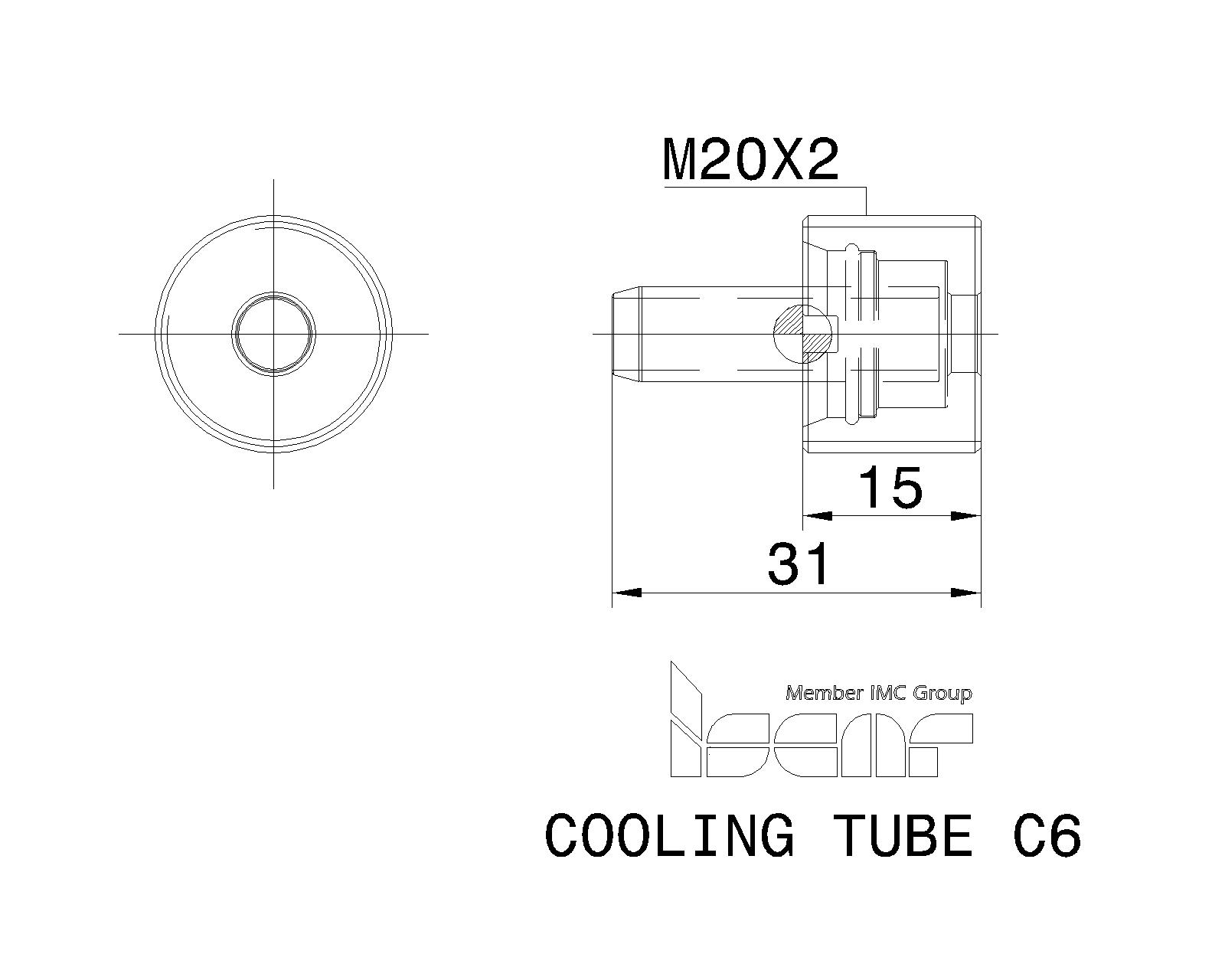

2D Representation
