Family Designation: DGN/DGNM-J/JS/JT

First choice for soft materials, parting of tubes, small diameters and thin-walled parts. General applications on low carbon, alloy and austenitic stainless steel. Low-to-medium feeds. JS - sharp corner. DGNM - single-ended.

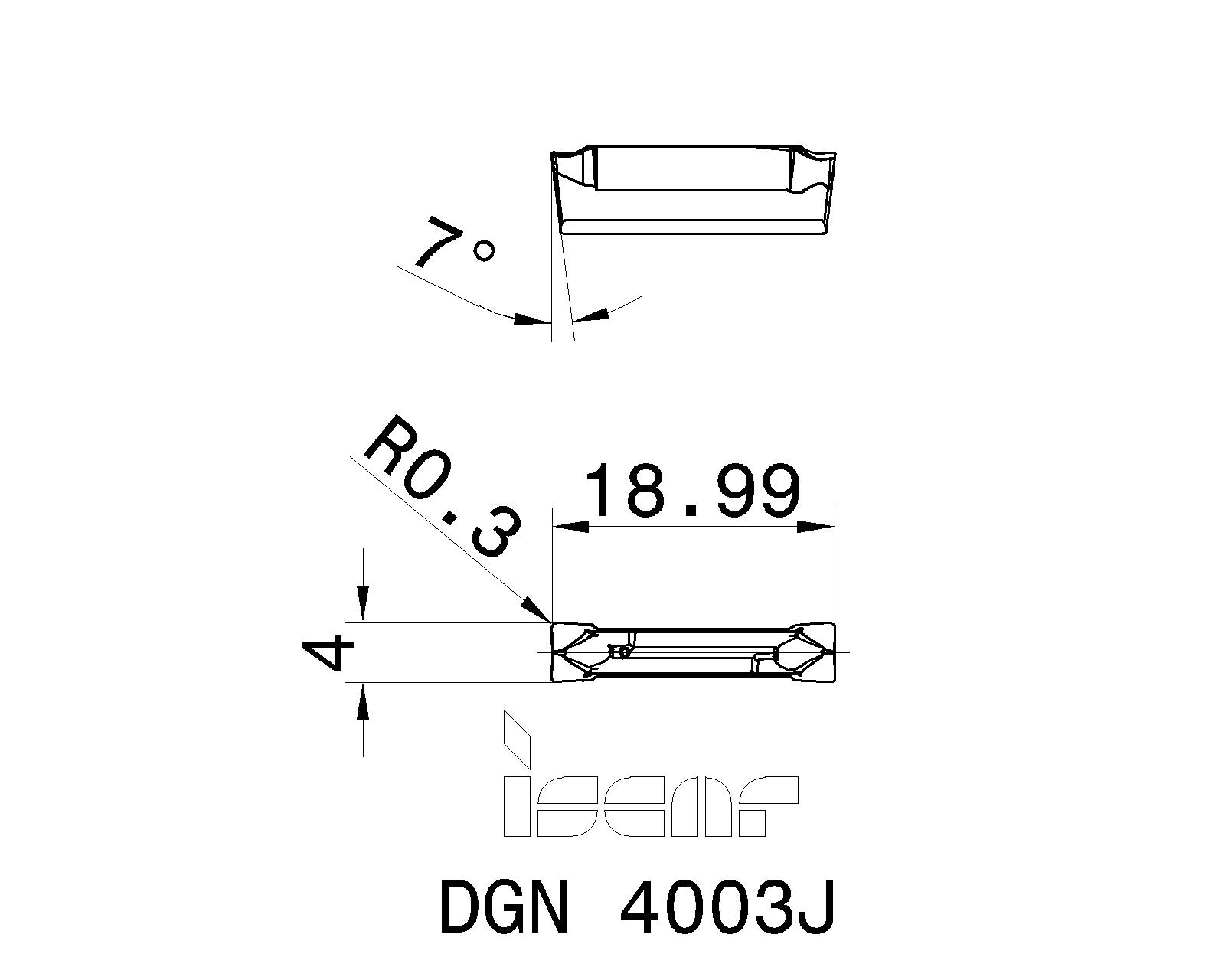

Item Designation: DGN 4003J

CW	CWTOL	RE	RETOL	CDX	INSL	HAND	CBMD	CEDC	fg (min)	fg (max)	SC	AN	COATP	CSP	DAXN	DMIN	GRDMFG	IFS	S	S1	WEP	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
4.00	0.040	0.30	0.030	-	18.90	N~	~	2~	0.05	0.18	L~	7.0~	~	0~	-~	-~	IC1010~	7~	-~	-~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	AlTiN+TiN ~	6090366		11

Catalog No	Grade & Vc	Alternative	GISC	AvailUSA	DXF	STP
3384321	IC1010		1	0	<a href="javascript:OpenDxf('3384321', 'DGN 4003J' , 'IscarDxf' , '3384321-DGN 4003J');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3384321&itemDesc=DGN 4003J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
3384322	IC1030		1	0	<a href="javascript:OpenDxf('3384322', 'DGN 4003J' , 'IscarDxf' , '3384322-DGN 4003J');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3384322&itemDesc=DGN 4003J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6002363	IC20	Alternative	1	50	<a href="javascript:OpenDxf('6002363', 'DGN 4003J' , 'IscarDxf' , '6002363-DGN 4003J');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6002363&itemDesc=DGN 4003J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6002364	IC354	Alternative	1	468	<a href="javascript:OpenDxf('6002364', 'DGN 4003J' , 'IscarDxf' , '6002364-DGN 4003J');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6002364&itemDesc=DGN 4003J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6002420	IC328	Alternative	1	150	<a href="javascript:OpenDxf('6002420', 'DGN 4003J' , 'IscarDxf' , '6002420-DGN 4003J');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6002420&itemDesc=DGN 4003J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6002965	IC908	Alternative	1	590	<a href="javascript:OpenDxf('6002965', 'DGN 4003J' , 'IscarDxf' , '6002965-DGN 4003J');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6002965&itemDesc=DGN 4003J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6003048	IC1028	Alternative	1	50	<a href="javascript:OpenDxf('6003048', 'DGN 4003J' , 'IscarDxf' , '6003048-DGN 4003J');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6003048&itemDesc=DGN 4003J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6003629	IC807	Alternative	1	0	<a href="javascript:OpenDxf('6003629', 'DGN 4003J' , 'IscarDxf' , '6003629-DGN 4003J');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6003629&itemDesc=DGN 4003J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6011381	IC830	Alternative	1	90	<a href="javascript:OpenDxf('6011381', 'DGN 4003J' , 'IscarDxf' , '6011381-DGN 4003J');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6011381&itemDesc=DGN 4003J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6011382	IC808	Alternative	1	200	<a href="javascript:OpenDxf('6011382', 'DGN 4003J' , 'IscarDxf' , '6011382-DGN 4003J');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6011382&itemDesc=DGN 4003J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6090366	IC308	Alternative	1	210	<a href="javascript:OpenDxf('6090366', 'DGN 4003J' , 'IscarDxf' , '6090366-DGN 4003J');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6090366&itemDesc=DGN 4003J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>

Items Per Package : 10
JT chipformer has the basic positive configuration of the J-type and a reinforced negative frontal edge; most suitable for soft materials at low to medium feeds
