Family Designation: DGN/DGNM-J/JS/JT

First choice for soft materials, parting of tubes, small diameters and thin-walled parts. General applications on low carbon, alloy and austenitic stainless steel. Low-to-medium feeds. JS - sharp corner. DGNM - single-ended.

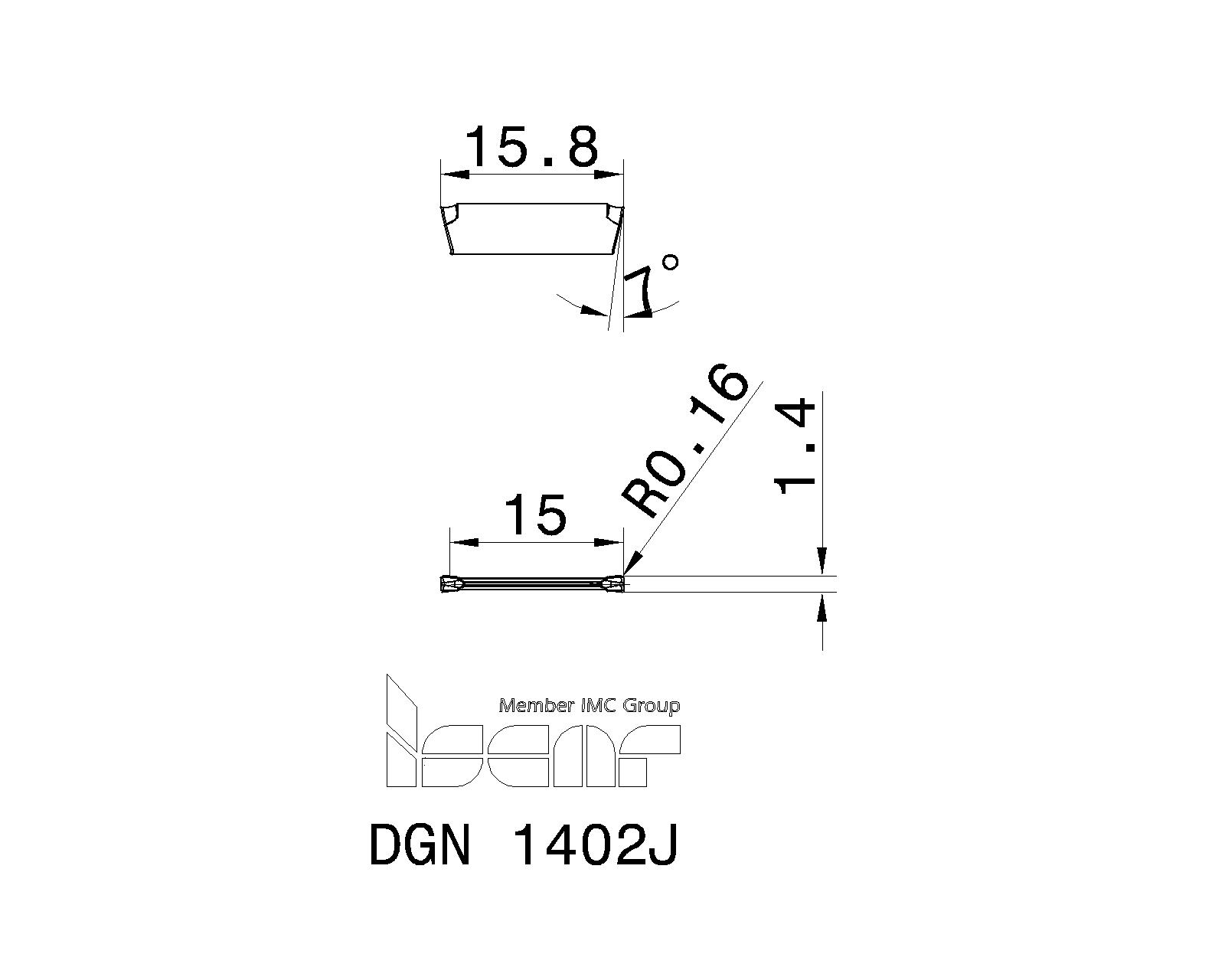

Item Designation: DGN 1402J

CW	CWTOL	RE	RETOL	CDX	INSL	HAND	CBMD	CEDC	fg (min)	fg (max)	SC	AN	COATP	CSP	DAXN	DMIN	GRDMFG	IFS	S	S1	WEP	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
1.40	0.030	0.16	0.020	15.00	15.80	N~	~	2~	0.03	0.12	L~	7.0~	~	0~	-~	-~	IC1010~	7~	-~	-~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~		Superalloys and titanium~	Carbide~	AlTiN+TiN ~	6099906		9

Catalog No	Grade & Vc	Alternative	GISC	AvailUSA	DXF	STP
3384323	IC1010		1	0	<a href="javascript:OpenDxf('3384323', 'DGN 1402J' , 'IscarDxf' , '3384323-DGN 1402J');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3384323&itemDesc=DGN 1402J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
3384324	IC1030		1	40	<a href="javascript:OpenDxf('3384324', 'DGN 1402J' , 'IscarDxf' , '3384324-DGN 1402J');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3384324&itemDesc=DGN 1402J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6002957	IC908	Alternative	1	68160	<a href="javascript:OpenDxf('6002957', 'DGN 1402J' , 'IscarDxf' , '6002957-DGN 1402J');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6002957&itemDesc=DGN 1402J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6003055	IC1028	Alternative	1	130	<a href="javascript:OpenDxf('6003055', 'DGN 1402J' , 'IscarDxf' , '6003055-DGN 1402J');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6003055&itemDesc=DGN 1402J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6011383	IC830	Alternative	1	140	<a href="javascript:OpenDxf('6011383', 'DGN 1402J' , 'IscarDxf' , '6011383-DGN 1402J');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6011383&itemDesc=DGN 1402J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6011384	IC808	Alternative	1	660	<a href="javascript:OpenDxf('6011384', 'DGN 1402J' , 'IscarDxf' , '6011384-DGN 1402J');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6011384&itemDesc=DGN 1402J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6091716	IC328	Alternative	1	57600	<a href="javascript:OpenDxf('6091716', 'DGN 1402J' , 'IscarDxf' , '6091716-DGN 1402J');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6091716&itemDesc=DGN 1402J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6096428	IC308	Alternative	1	105	<a href="javascript:OpenDxf('6096428', 'DGN 1402J' , 'IscarDxf' , '6096428-DGN 1402J');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6096428&itemDesc=DGN 1402J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6099906	IC354	Alternative	1	100	<a href="javascript:OpenDxf('6099906', 'DGN 1402J' , 'IscarDxf' , '6099906-DGN 1402J');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6099906&itemDesc=DGN 1402J"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>

Items Per Package : 10
JT chipformer has the basic positive configuration of the J-type and a reinforced negative frontal edge; most suitable for soft materials at low to medium feeds
