Family Designation: SGTBR/L

Blocks for parting and grooving blades, used on conventional lathes.

Right-hand shown

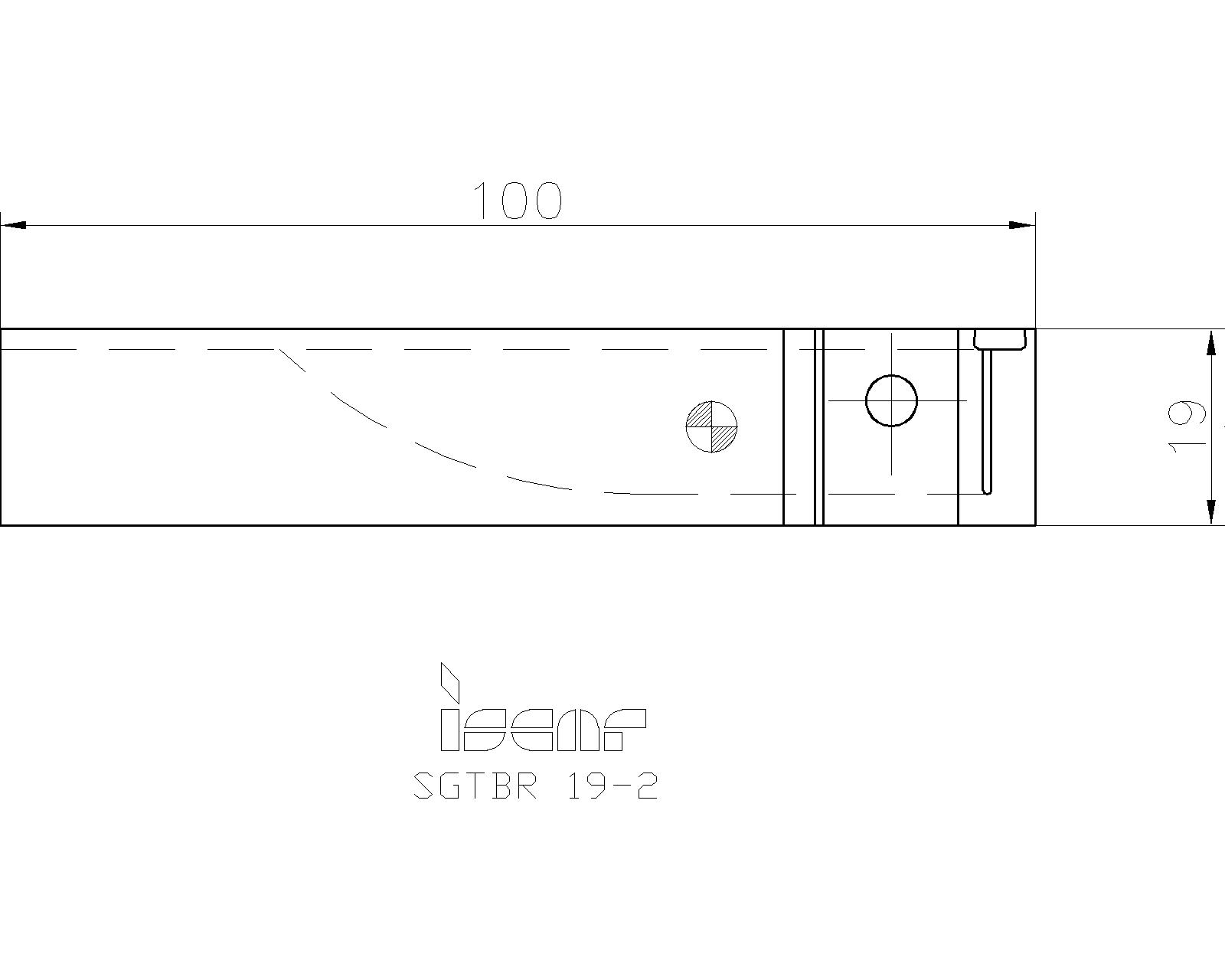

Item Designation: SGTBR 19-2

H	HF	HTPRM	B	OAL	WTHPRM	HAND	CSP	GICAT	GIREM	giic
25.0	19.0	19.0	19.0	100.00	2.00	R~	~	2300749		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
2300749		1	80	56			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=2300749&cat=2300749&itemDesc=SGTBR 19-2"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="javascript:OpenDxf('2300749', 'SGTBR 19-2' , 'IscarDxf' , '2300749-SGTBR 19-2');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2300749&itemDesc=SGTBR 19-2"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=2300749&itemDesc=SGTBR 19-2"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
Choose blade by HTPRM dimension

Spare Parts
	7001843	SR M6X25 DIN912	Socket head cap screw	Details
	7000045	HW 5.0	Hex key	Details
