Family Designation: SGTBR/L

Blocks for parting and grooving blades, used on conventional lathes.

Right-hand shown

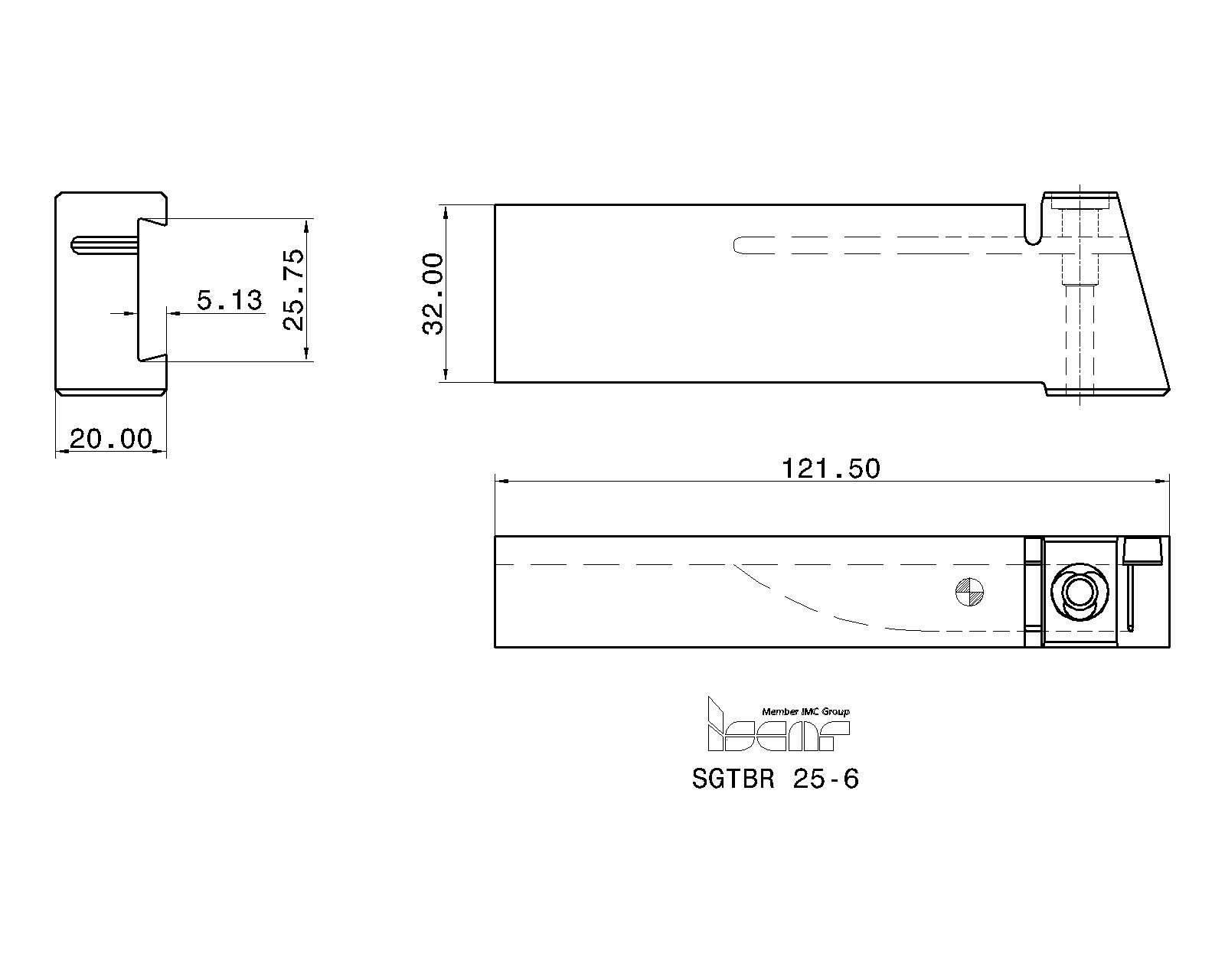

Item Designation: SGTBR 25-6

H	HF	HTPRM	B	OAL	WTHPRM	HAND	CSP	GICAT	GIREM	giic
32.0	25.0	26.0	20.0	120.00	5.00	R~	~	2300750		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
2300750		1	0	288			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=2300750&cat=2300750&itemDesc=SGTBR 25-6"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="javascript:OpenDxf('2300750', 'SGTBR 25-6' , 'IscarDxf' , '2300750-SGTBR 25-6');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2300750&itemDesc=SGTBR 25-6"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=2300750&itemDesc=SGTBR 25-6"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
Choose blade by HTPRM dimension

Spare Parts
	7001844	SR M6X30 DIN912	Socket head cap screw	Details
	7000045	HW 5.0	Hex key	Details
