Family Designation: DGFH Double-ended parting and grooving blades carrying DO-GRIP and HELI-GRIP double-ended inserts. Blades with coolant channels are designated with "C".


Item Designation: DGFH 32-4
H CWN  CWX  WB WB_2 OAL HF CUTDIA CSP  MIID  HAND APMX GICATGIREMgiic
32.04.004.00-3.2150.0024.8100.0~DGN 4003CN~4.00~2301246 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileGTCDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
2301246 117765392<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=2301246&cat=2301246&itemDesc=DGFH 32-4"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a><a href="javascript:OpenDxf('2301246', 'DGFH 32-4' , 'IscarDxf' , '2301246-DGFH 32-4');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2301246&itemDesc=DGFH 32-4"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=2301246&itemDesc=DGFH 32-4"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified - click on "More Info"
3D Representation

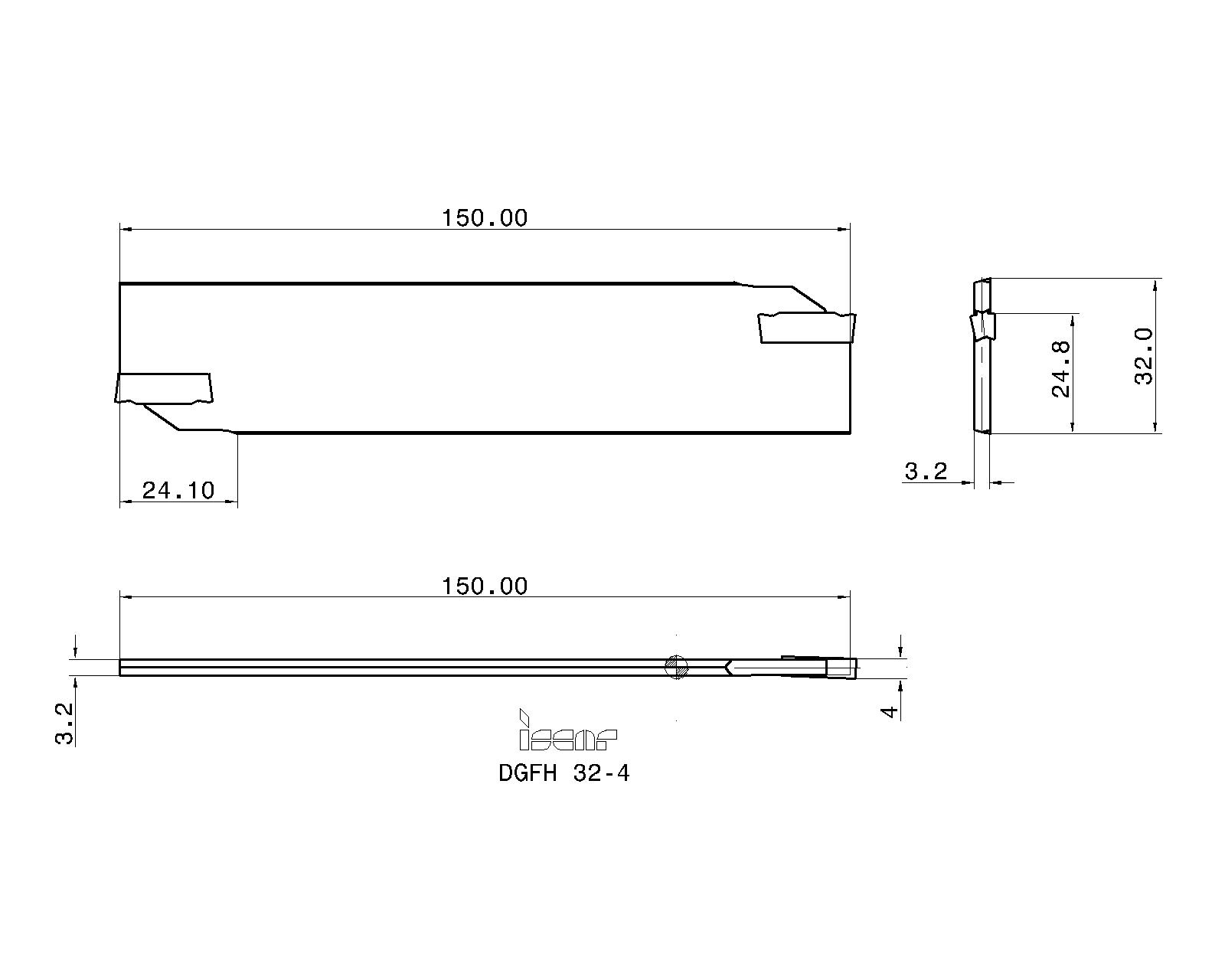

2D Representation
  Spare Parts
7001923EDG 33A
(Optional, should be ordered separately)		Extractor
Extractor		Details
