Family Designation: DGTR/L Integral shank parting and grooving tools
Right-hand shown

Left-hand shown
Right-hand shown

Left-hand shown

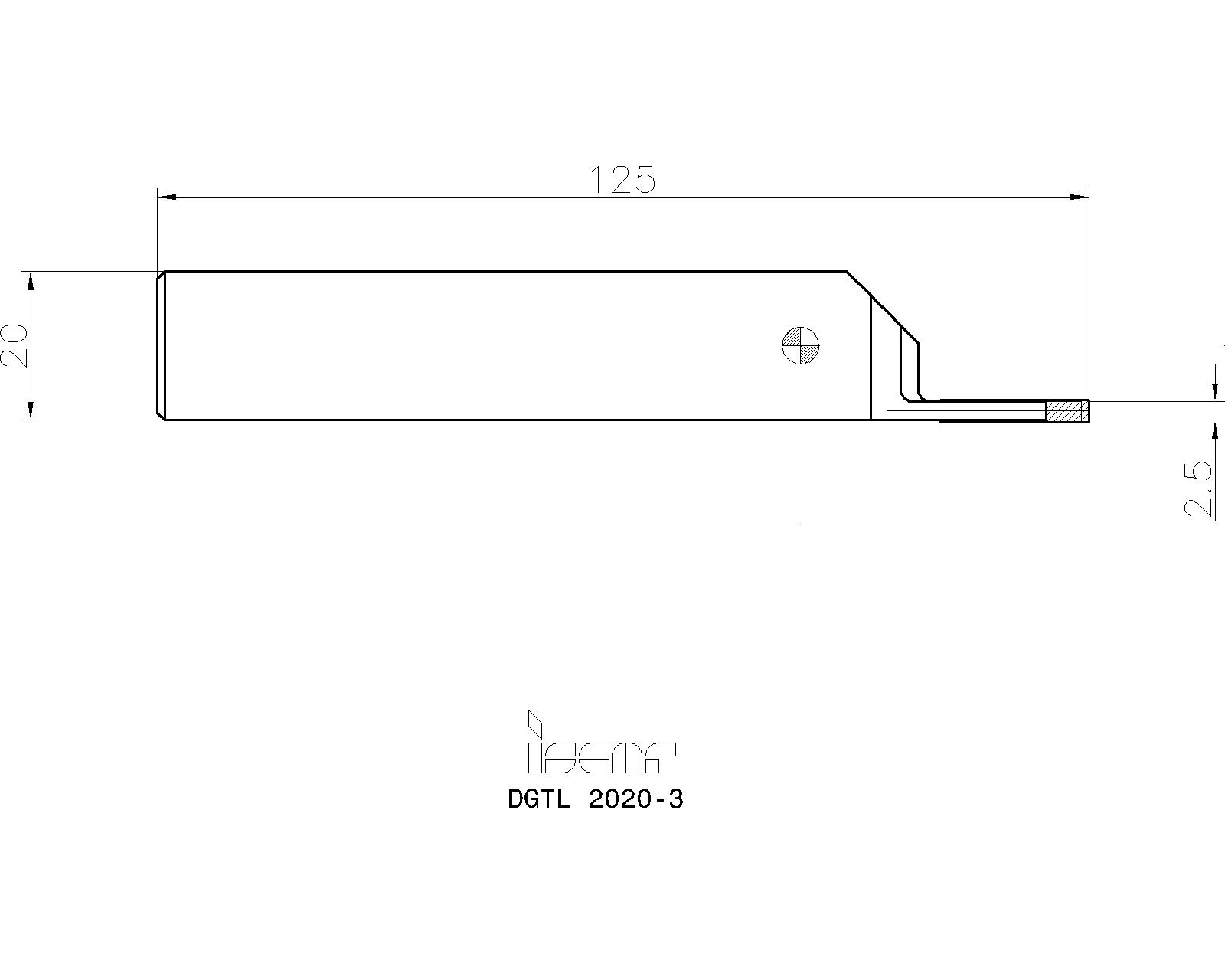

Item Designation: DGTL 2020-3
CWN  CWX  H B WB OAL LH HBH CUTDIA HAND APMX CCMS CDX CSP  CW KAPR  GICATGIREMgiic
3.003.1820.020.02.50125.0029.0-35.0 L3.18~VKT01A2020~~~~~2301261 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
2301261 10576<a href="javascript:OpenDxf('2301261', 'DGTL 2020-3' , 'IscarDxf' , '2301261-DGTL 2020-3');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2301261&itemDesc=DGTL 2020-3"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=2301261&itemDesc=DGTL 2020-3"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
Insert limit is Tmax=18 mm. If deeper penetration is required, the insert should be modified into single-ended by the user
DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified-click on "More Info"
3D Representation
Assembly Video
2D Representation
  Spare Parts
7001923EDG 33A
(Optional, should be ordered separately)		Extractor
