Family Designation: DGFHR/L Double and single-ended, parting and grooving reinforced blades carrying DO-GRIP inserts.


Item Designation: DGFHR 32T33-3
H CWN  CWX  WB_2 WB OAL HF CUTDIA  MIID  HAND APMX GICATGIREMgiic
32.03.003.188.02.40110.0024.860.0R3.18~2301338 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
2301338 101408<a href="javascript:OpenDxf('2301338', 'DGFHR 32T33-3' , 'IscarDxf' , '2301338-DGFHR 32T33-3');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2301338&itemDesc=DGFHR 32T33-3"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=2301338&itemDesc=DGFHR 32T33-3"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
Insert limit is Tmax=18 mm. If deeper penetration is required, the insert should be modified into single-ended by the user.
DG..1.0 insert can be mounted into pocket sizes 2 and 3. in which case the pocket width has to be modified-click on "More Info"
3D Representation
Assembly Video

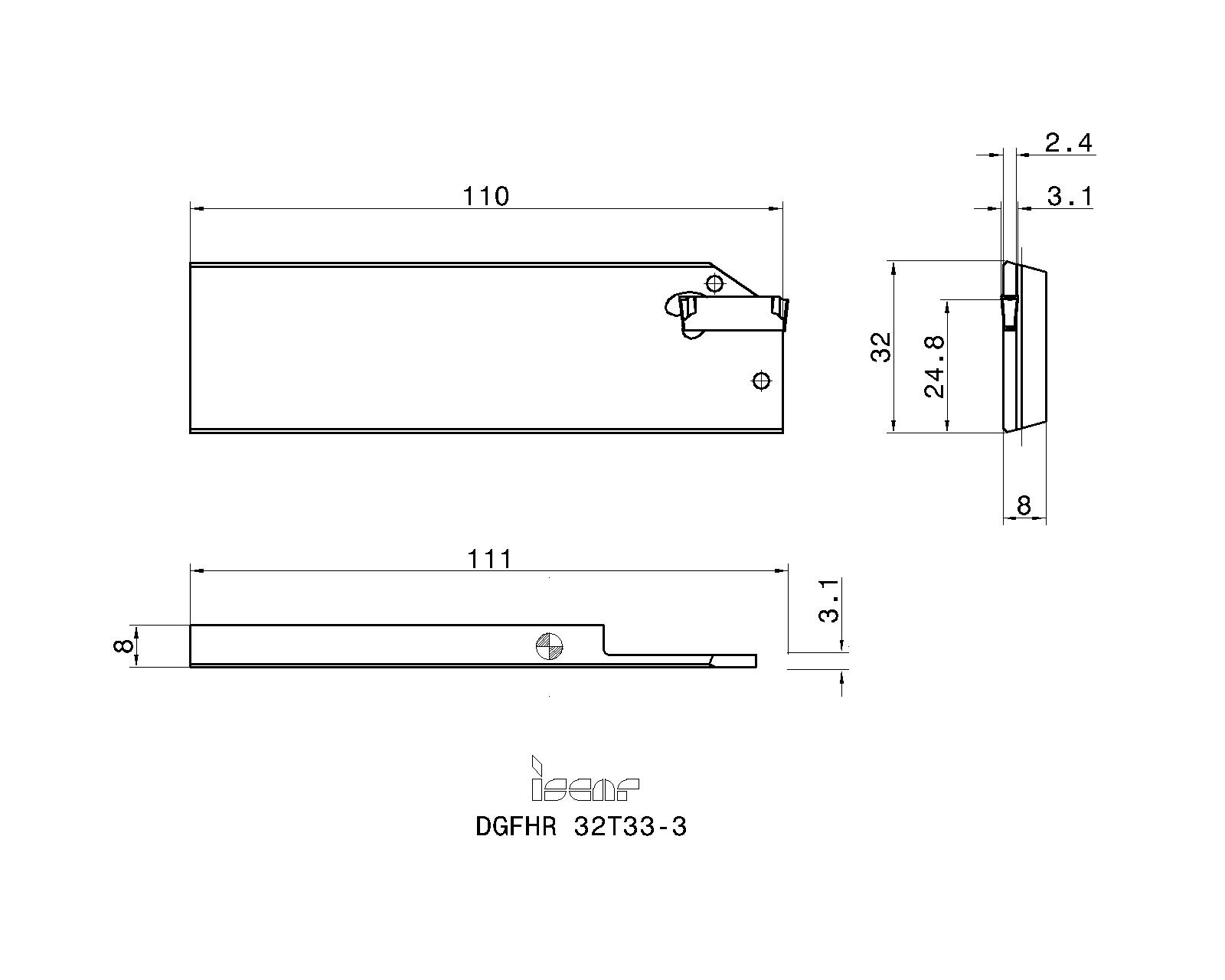

2D Representation
  Spare Parts
7001923EDG 33A
(Optional, should be ordered separately)		Extractor
