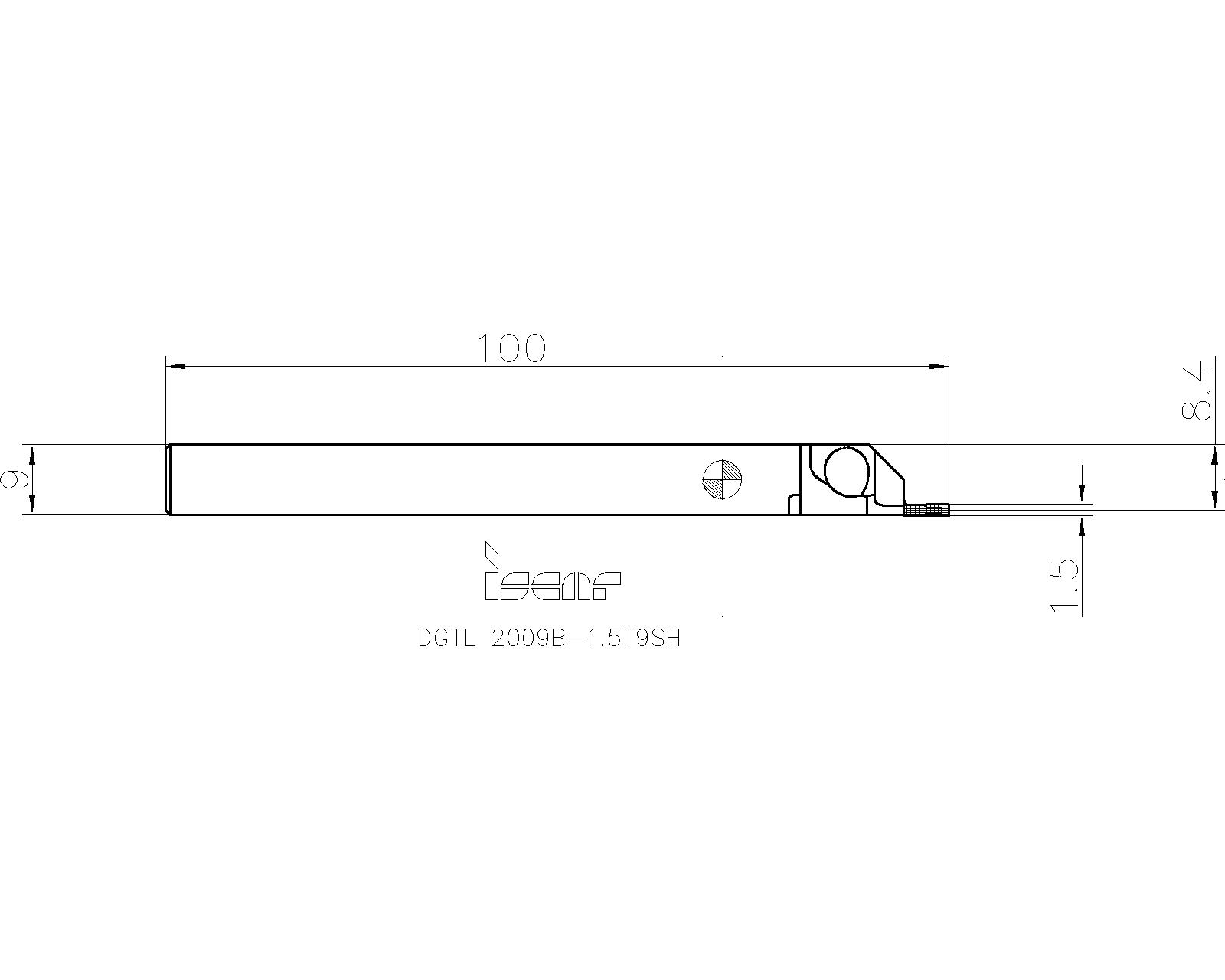

Family Designation: DGTR/L-B-T-SH

Integral shank, reinforced parting and grooving short head tools carrying DGN double-ended inserts.

Left-hand shown

Item Designation: DGTL 2009B-1.5T9SH

CWN	CWX	H	HF	B	WB	WF	OAL	LH	CUTDIA	CDX	OAH	HAND	S. Std.	NO LINK	Mod	ft	BMC	UST	PLIB2	CCFMS	ISCTMP		APMX	CCMS	CCTMS	ClssID	ClssID_2	CNSC	CNT		CP	CSP	CUBPMS	CW	CXSC	CZCMS	EPSR	EPSR_2	EPSR_3	GAMF	GAMP	GTC	GTC_2	GTC_3	GTC_4	HBH	HBKW	HBL	IIC	IIC_2	ISCTMP_2	ISCTMP_3	ISCTMP_4	ISYC	ISYC_2	ISYC_3	ISYC_4	KAPR	KAPR_2	KAPR_3	LF_2	LF_3	LF_4	LTA	MIID	MIID_2	MIID_3	MIID_4	OAL_2	OAL_3	OAL_4	OHN	Parallel	SPI	TCDCONMS	Tool typ	WB_2	WTA	GICAT	GIREM	giic
1.00	1.50	20.0	20.0~	9.0	1.20	8.40	100.00	19.0	95.0	9.00	23.7	L	SQ~	2~	100~	8.40~	S~	C~	728E45F30241C~	01~	~	0.13~	1.50~	VKT01A2009~	VKT~	71E01A0E85121~	~	~	~	N~	~	~	A~	~	~	2009~	~	~	~	~	~	~	~	~	~	~	~	~	IS$$90278671465164~	IS$$95784241132216~	~	~	~	309-01~	~	~	~	~	~	~	~	~	~	29.00~	~	~	~	~	~	~	~	~	L~	~	~	SQUARE~	~	4.65~	2301573		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21
2301573		8	0	64			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=2301573&cat=2301573&itemDesc=DGTL 2009B-1.5T9SH"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="javascript:OpenDxf('2301573', 'DGTL 2009B-1.5T9SH' , 'IscarDxf' , '2301573-DGTL 2009B-1.5T9SH');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2301573&itemDesc=DGTL 2009B-1.5T9SH"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=2301573&itemDesc=DGTL 2009B-1.5T9SH"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
Important: 1.4 mm width inserts should be used only on tools for 1.4 mm specific width.

Spare Parts
	7000225	SR 16-236 P	Torx screw	Details
General recommendation for tightening torque:3 Nm (26.5 lbfin)
	7000265	T-15/5	Torx key flag	Details
For limiting torque, use optional 3309305 BLD 4 T15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
