Family Designation: DGFHR/L-B-D..(R/L) Double- and single-ended, parting and grooving reinforced blades for double-ended DGN inserts.


Item Designation: DGFHR 26B-2D50L
Ord H  CWN  CWX  WB WB_2 OAL OAH HF HBH CDX  CUTDIA  HAND Insert UST MIID  BMC LF OFFSET PRHD PLIB2 ISCTMP APMX ClssID GTC IIC IIC_10 IIC_2 IIC_3 IIC_4 IIC_5 IIC_6 IIC_7 IIC_8 IIC_9 LTA Tool typWTA GICATGIREMgiic
2~26.01.902.501.608.0110.0031.521.43.718.0050.0RDG. 1.../DG. 2..~~~S~110.00~0.00~R~~~0.14~2.50~71E01A0EAF067~~IS$$300947468118283~IS$$583280618914669~IS$$556367149773951~IS$$557088683178332~IS$$566959032603554~IS$$567394063804676~IS$$567682296541167~IS$$572687005551834~IS$$577552645966389~IS$$577985946634279~50.80~BLADE~4.27~2301586 For Tornos Bechler, Emco 2000/20, 2000/26 machines 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileGTCDXFStock Availability
   US        EU     E. Asia		STPLP21
2301586 10200<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=2301586&cat=2301586&itemDesc=DGFHR 26B-2D50L"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a><a href="javascript:OpenDxf('2301586', 'DGFHR 26B-2D50L' , 'IscarDxf' , '2301586-DGFHR 26B-2D50L');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2301586&itemDesc=DGFHR 26B-2D50L"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=2301586&itemDesc=DGFHR 26B-2D50L"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>
For Tornos Bechler, Emco 2000/20, 2000/26 machines
Items Per Package : 1
Insert (double sided) limit is CDX=18 mm, If deeper penetration is required the insert should be changed to a single-ended insert DGNM type.
DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified.
3D Representation

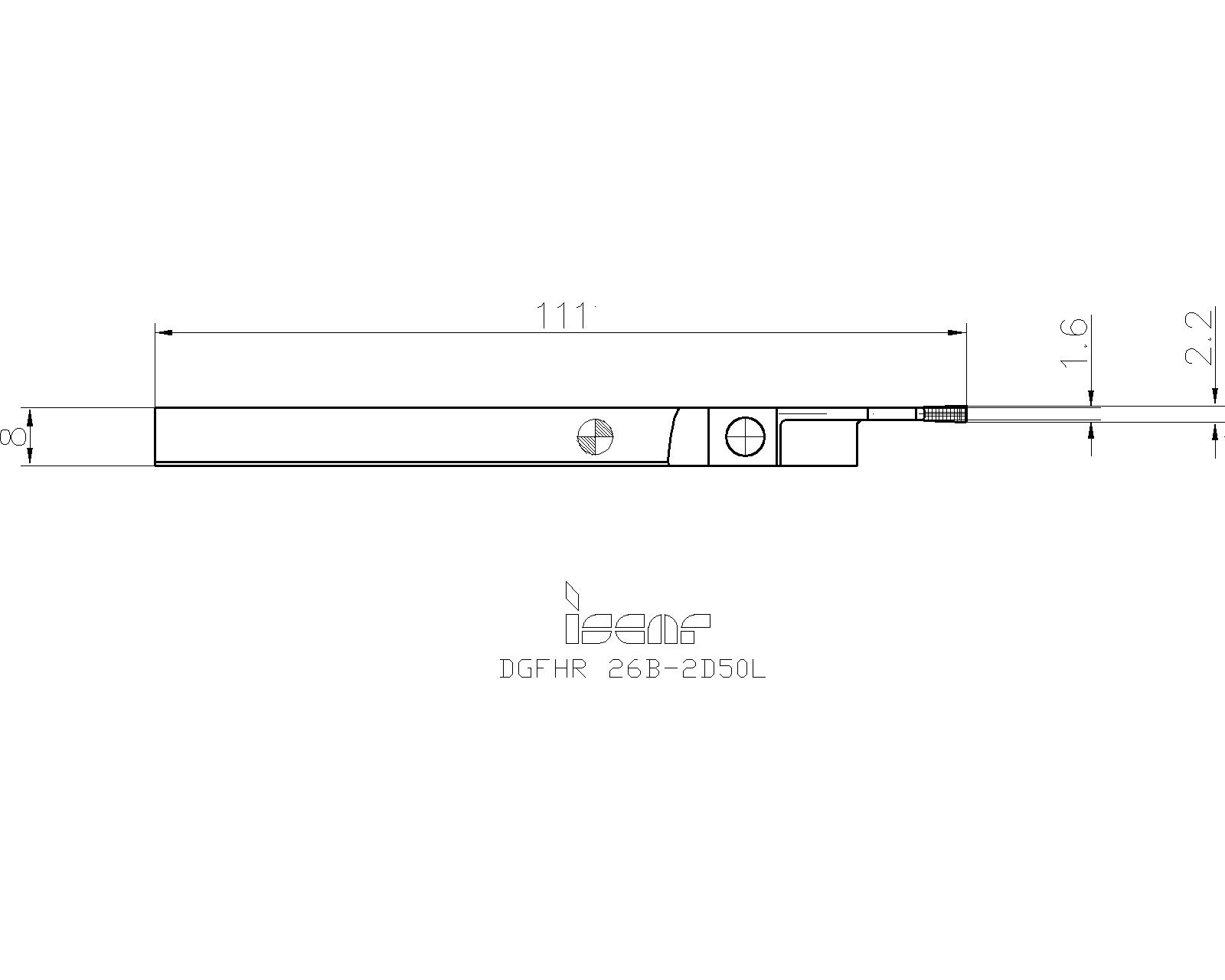

2D Representation
