Family Designation: TRIB Slitting shanks carrying triple-edged precision ground inserts.
Item Designation: TRIB 40-25W-4Z
DC CWN  CWX  CDX  CICT  BD LH L DCONMS Shank  MIID  KAPR  OAL APMX CCMS CSP  DMIN HAND ZEFF GICATGIREMgiic 16RK-4.0-0.290.0~112.43~4.00~ZYL10G2500h$06~1~-~R~4~2301774 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileGTCDXFStock Availability
   US        EU     E. Asia
2301774 104<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=2301774&cat=2301774&itemDesc=TRIB 40-25W-4Z"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a><a href="javascript:OpenDxf('2301774', 'TRIB 40-25W-4Z' , 'IscarDxf' , '2301774-TRIB 40-25W-4Z');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2301774&itemDesc=TRIB 40-25W-4Z"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=2301774&itemDesc=TRIB 40-25W-4Z"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
W, Tmax, f, Refer to insert data
For inserts with W=4.01-6.50 mm, order tools with -B suffix (deeper pockets). For example: TRIB 50-32W-6Z-B
For adaptation click on "More Info".
3D Representation

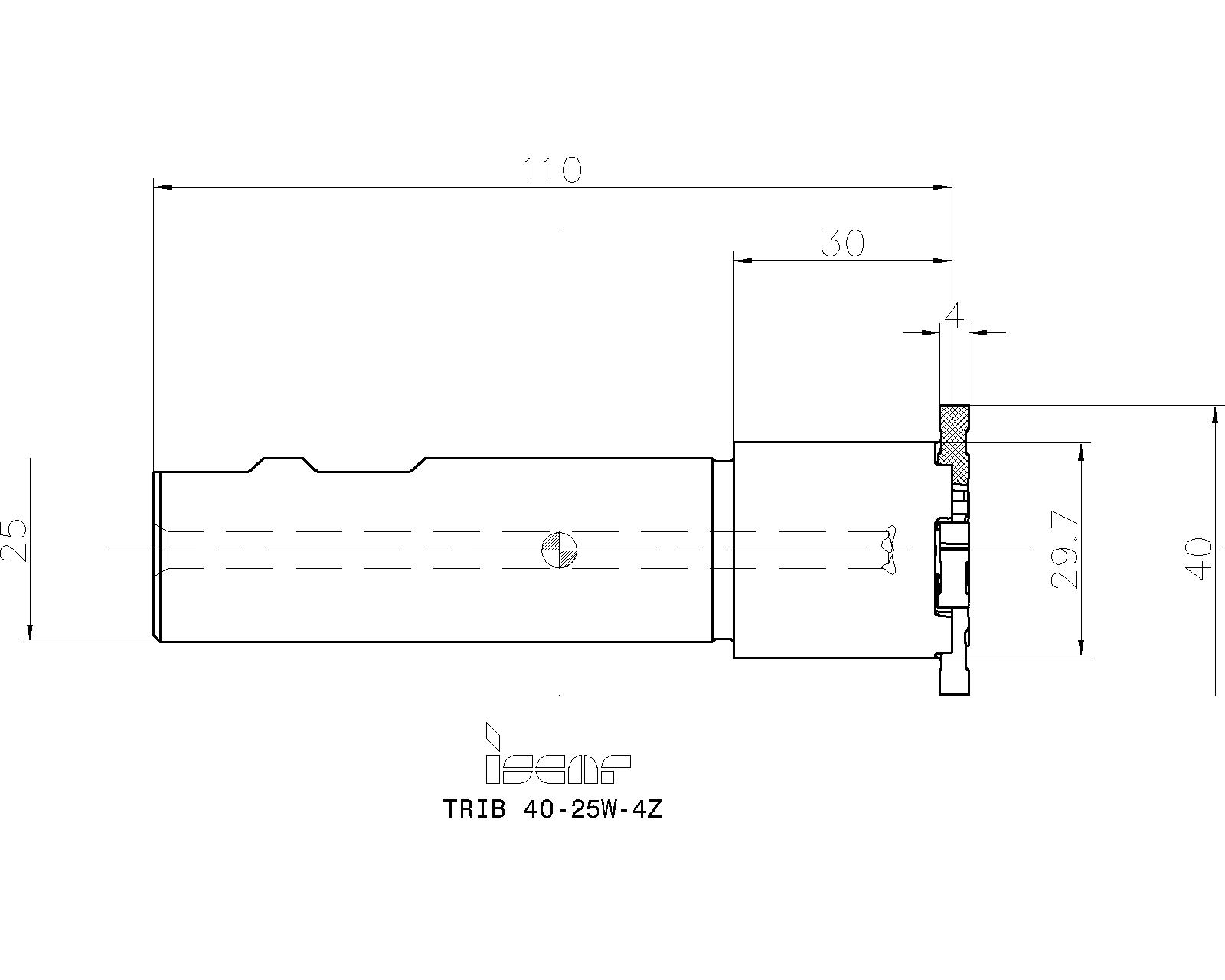

2D Representation
  Spare Parts
4397785SR 16-236 08223Torx screw
Recommended tightening torque:5.3 N*m
7002096BLD T15/S7Torx blade
For limiting torque, use optional 3309305 BLD 4 T15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
