ISCAR Cutting Tools - Metal Working Tools - DGTR/L-BC-T : 2301929 - DGTR 20BC-4T25
Geometry Checker ×

Family Designation: DGTR/L-BC-T Parting and grooving tools with coolant holes carrying JET-CUT inserts.
Right-hand shown

Right-hand shown

 COOLANT THROUGH TOOL
Item Designation: DGTR 20BC-4T25
H B CWN  CWX  OAL WB WF LH CDX  HAND CSP  APMX CCMS CUTDIA CW KAPR  GICATGIREMgiic
20.020.04.004.00140.003.4018.3042.025.00R~1~4.00~VKT01A2020~~~~2301929 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileGTCDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
2301929 10144<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=2301929&cat=2301929&itemDesc=DGTR 20BC-4T25"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a><a href="javascript:OpenDxf('2301929', 'DGTR 20BC-4T25' , 'IscarDxf' , '2301929-DGTR 20BC-4T25');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2301929&itemDesc=DGTR 20BC-4T25"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=2301929&itemDesc=DGTR 20BC-4T25"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
3D Representation

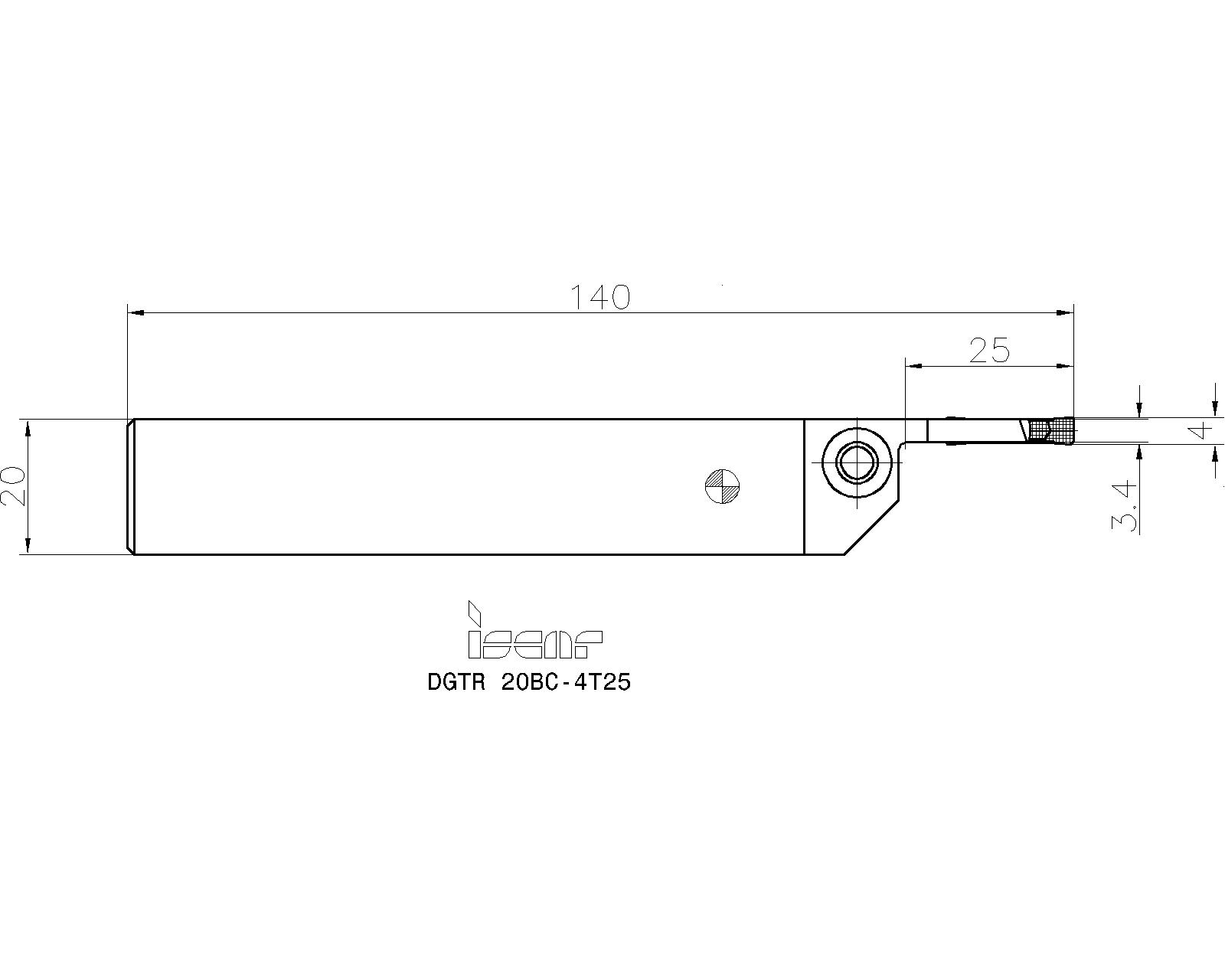

2D Representation
  Spare Parts
7001841SR M6X16 DIN912Socket head cap screw
Details
4300435SGCU 341
(Optional, should be ordered separately)		Cooling tube
7001006CGF 343
(Optional, should be ordered separately)		Fitting
Details
4300254CF 343
(Optional, should be ordered separately)		Fitting
7004585CGM 343
(Optional, should be ordered separately)		Fitting
Details
7000045HW 5.0Hex key
Details
