Boring
Main Application

Plunging & Recessing
Sub Application
Geometry Checker ×

Family Designation: TRIB Slitting shanks carrying triple-edged precision ground inserts.


 COOLANT THROUGH TOOL

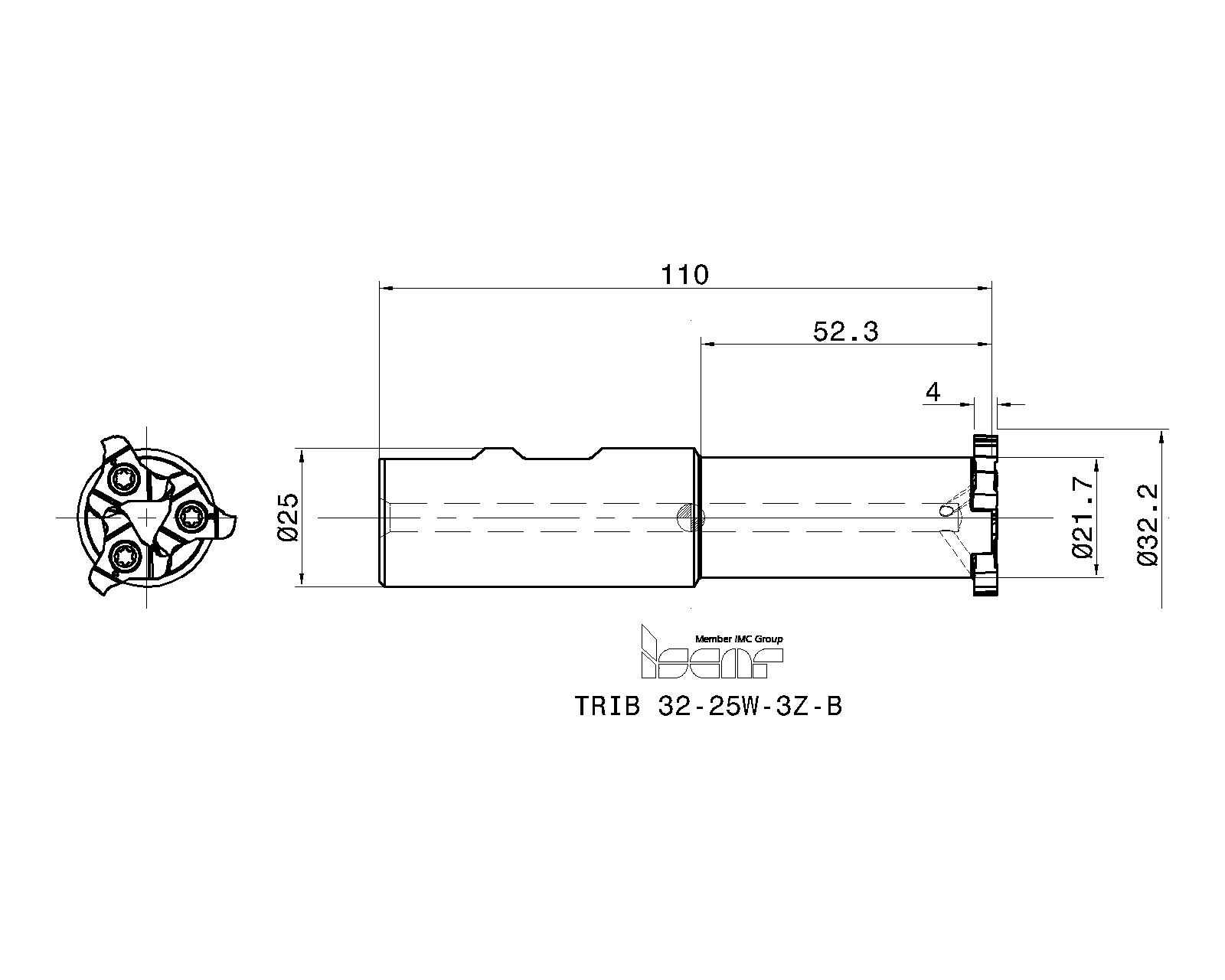

Item Designation: TRIB 32-25W-3Z-B
DC CWN  CWX  CDX  CICT  BD LH L DCONMS Shank  MIID  KAPR  OAL APMX CCMS CSP  DMIN HAND ZEFF GICATGIREMgiic
32.204.016.504.80321.7052.3110.0025.00W0.34TRI 16RK-6.090.0~113.15~6.50~ZYL10G2500h$06~1~-~R~3~2302235 Minimum bore diameter = 33 mm 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileGTCDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
2302235 106<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=2302235&cat=2302235&itemDesc=TRIB 32-25W-3Z-B"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a><a href="javascript:OpenDxf('2302235', 'TRIB 32-25W-3Z-B' , 'IscarDxf' , '2302235-TRIB 32-25W-3Z-B');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2302235&itemDesc=TRIB 32-25W-3Z-B"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=2302235&itemDesc=TRIB 32-25W-3Z-B"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Minimum bore diameter = 33 mm
Items Per Package : 1
W, Tmax, f, Refer to insert data
For inserts with W=4.01-6.50 mm, order tools with -B suffix (deeper pockets). For example: TRIB 50-32W-6Z-B
For adaptation click on "More Info".
3D Representation
2D Representation
  Spare Parts
7000224SR 16-236Torx screw
Details
Recommended tightening torque:5.3 N*m
7002096BLD T15/S7Torx blade
Details
For limiting torque, use optional 3309305 BLD 4 T15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
7002097SW6-TT-handle
Details
