Family Designation: TGFH-JHP

Parting and grooving blades with channels for low and high-pressure coolant carrying TANG-GRIP inserts.

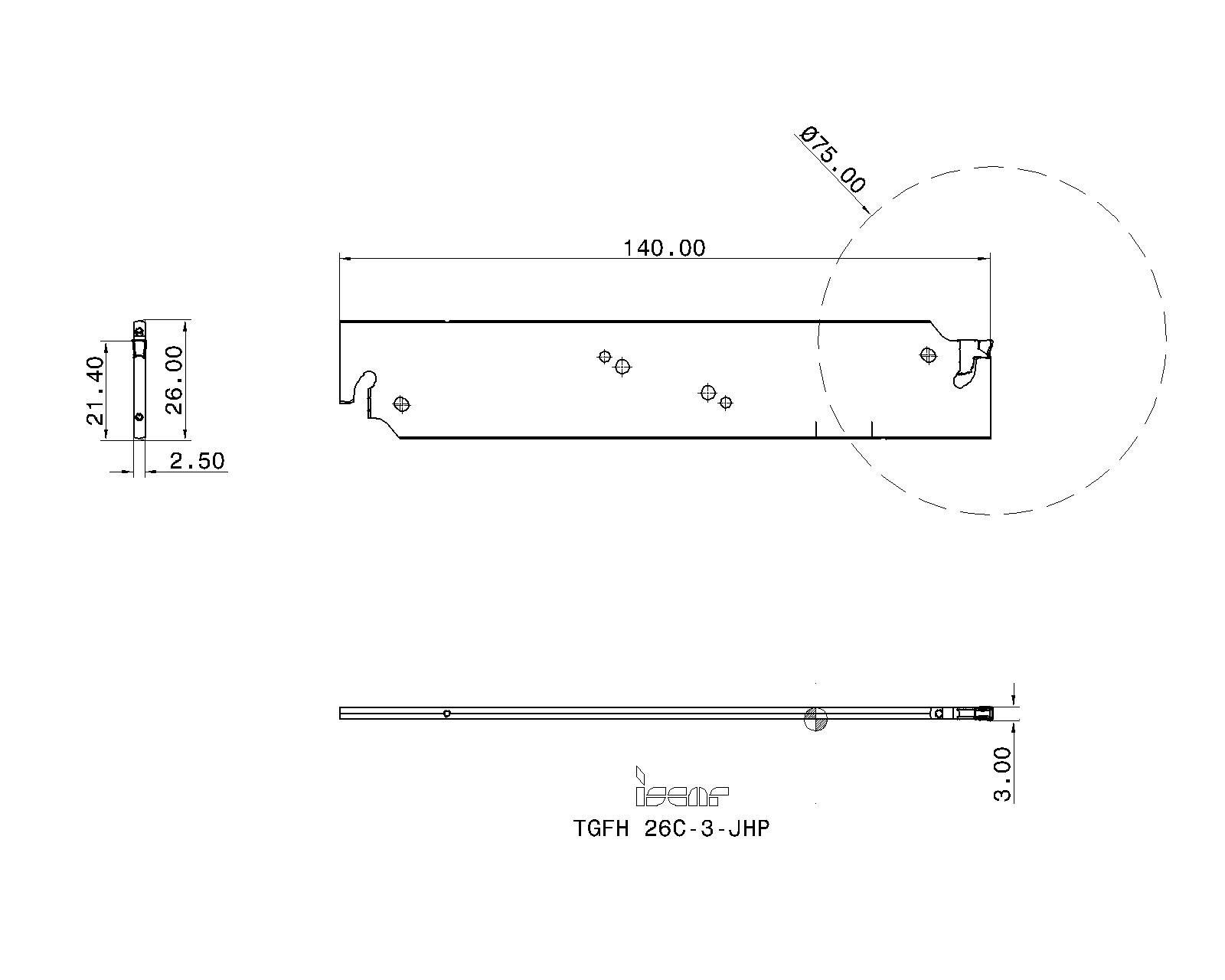

Item Designation: TGFH 26C-3-JHP

H	CW	CWN	CWX	WB	OAL	HF	CUTDIA	CSP	HAND	APMX	GICAT	GIREM	giic
26.0	3.00~	2.80	3.50	2.50	140.00	21.4	75.0	1~	N~	3.50~	2302502		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
2302502		1	8	37				<a href="javascript:OpenDxf('2302502', 'TGFH 26C-3-JHP' , 'IscarDxf' , '2302502-TGFH 26C-3-JHP');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2302502&itemDesc=TGFH 26C-3-JHP"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=2302502&itemDesc=TGFH 26C-3-JHP"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
For more details click on "More Info"

Spare Parts
	4300255	SGC 340	Sealing screw Sealing screw
	4305273	ETG 3-4-SH (Optional, should be ordered separately)	Extractor
