Family Designation: TGFH-JHP

Parting and grooving blades with channels for low and high-pressure coolant carrying TANG-GRIP inserts.

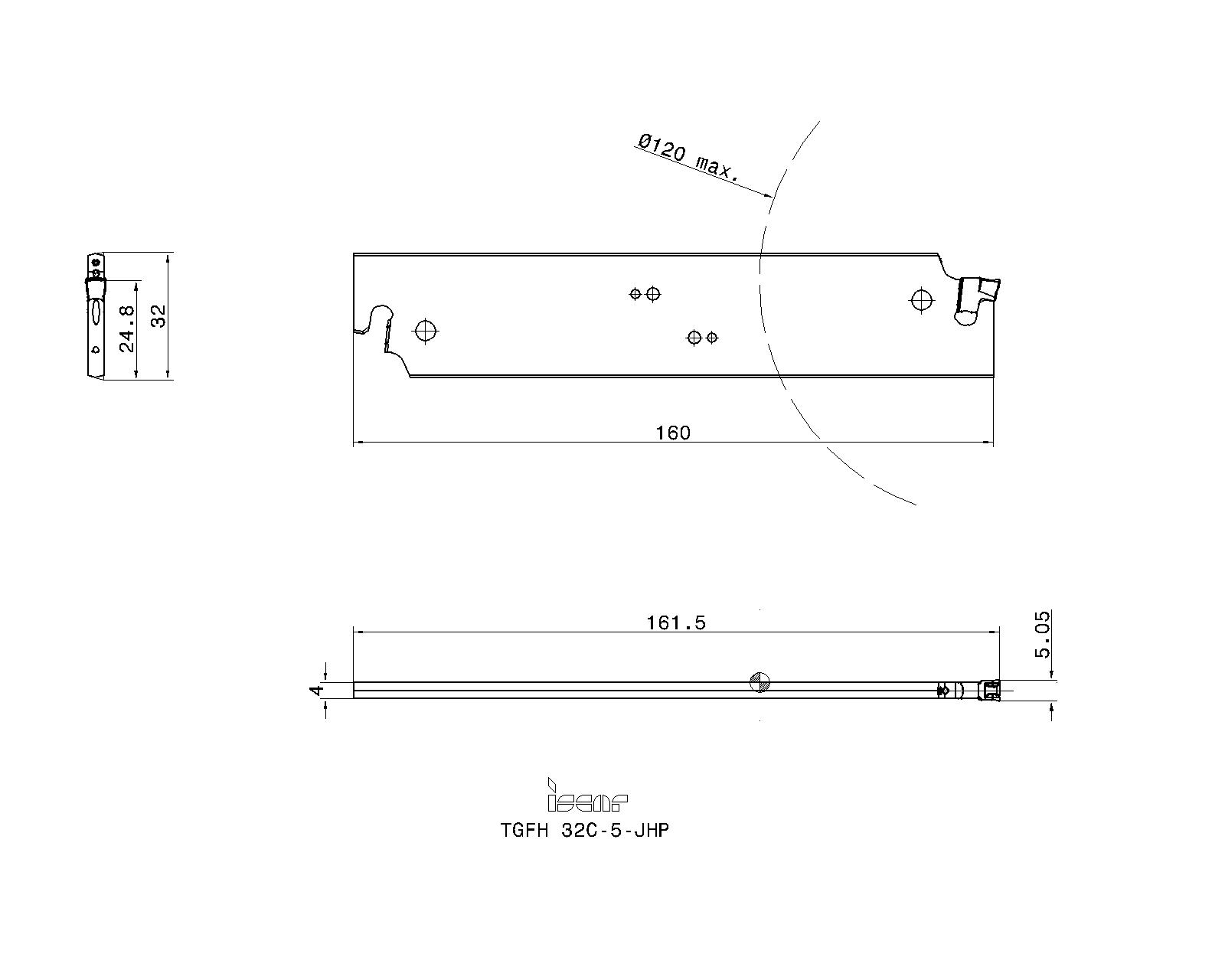

Item Designation: TGFH 32C-5-JHP

H	CW	CWN	CWX	WB	OAL	HF	CUTDIA	CSP	HAND	APMX	GICAT	GIREM	giic
32.0	5.00~	4.70	5.50	4.00	160.00	24.8	120.0	1~	N~	5.50~	2302505		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
2302505		1	12	18				<a href="javascript:OpenDxf('2302505', 'TGFH 32C-5-JHP' , 'IscarDxf' , '2302505-TGFH 32C-5-JHP');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2302505&itemDesc=TGFH 32C-5-JHP"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=2302505&itemDesc=TGFH 32C-5-JHP"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
For more details click on "More Info"

Spare Parts
	4300255	SGC 340	Sealing screw Sealing screw
	4305457	ETG 5-7 (Optional, should be ordered separately)	Extractor
