ISCAR Cutting Tools - Metal Working Tools - DGFH-JHP : 2302770

Geometry Checker ×

Family Designation: DGFH-JHP

Parting and grooving blades with channels for low and high-pressure coolant, carrying DO-GRIP inserts.

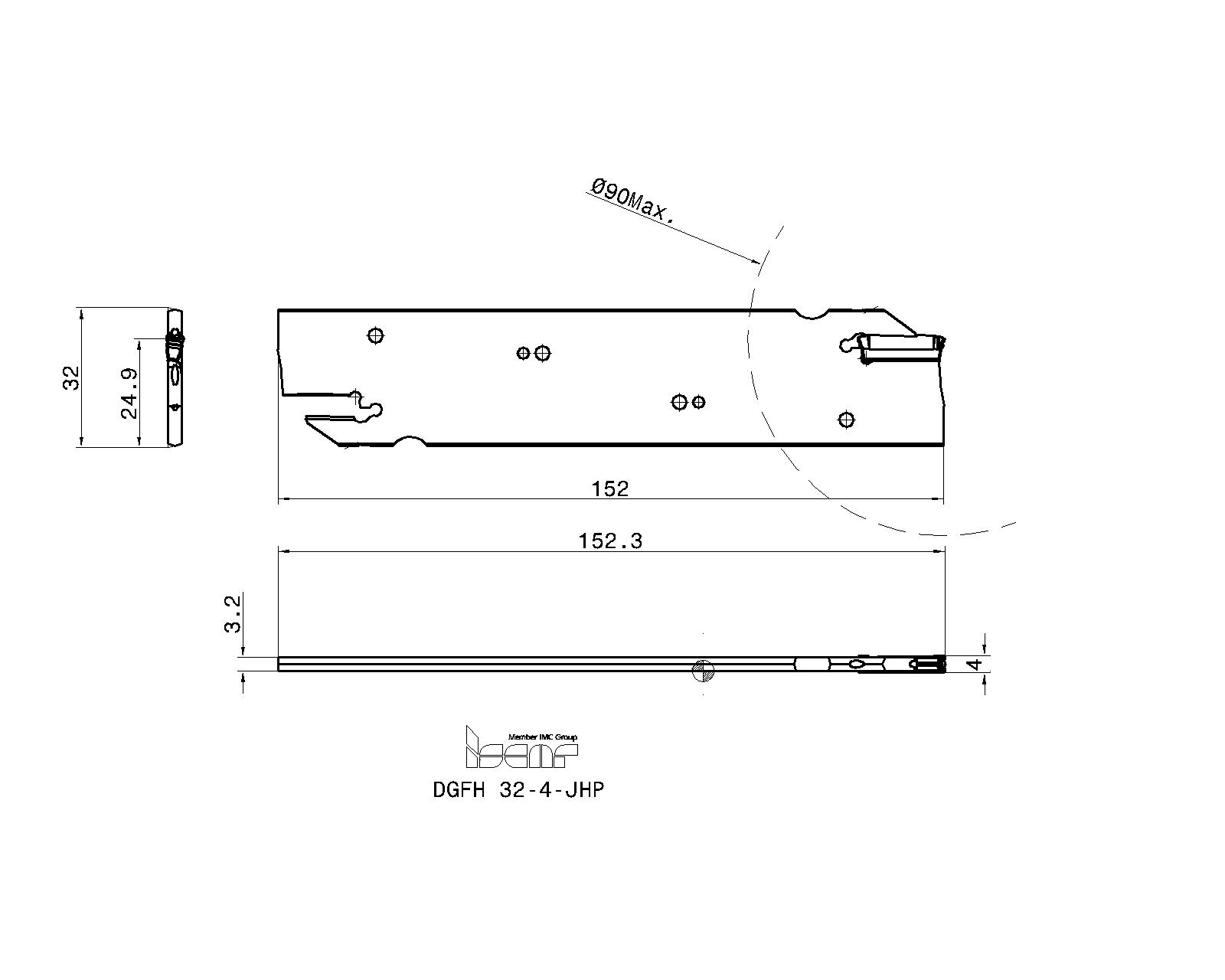

Item Designation: DGFH 32-4-JHP

CWN	CWX	WB	WB_2	OAL	H	HF	CUTDIA	CSP	HAND	APMX	GICAT	GIREM	giic
4.00	4.00	3.20	-	152.00	32.0	24.9	90.0	1~	N~	4.00~	2302770		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
2302770		1	48	184			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=2302770&cat=2302770&itemDesc=DGFH 32-4-JHP"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="javascript:OpenDxf('2302770', 'DGFH 32-4-JHP' , 'IscarDxf' , '2302770-DGFH 32-4-JHP');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2302770&itemDesc=DGFH 32-4-JHP"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=2302770&itemDesc=DGFH 32-4-JHP"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1

Spare Parts
	4300255	SGC 340	Sealing screw
	7007212	EDG 33A-JHP (Optional, should be ordered separately)	Extractor	Details
