Family Designation: DGFH-JHP

Parting and grooving blades with channels for low and high-pressure coolant, carrying DO-GRIP inserts.

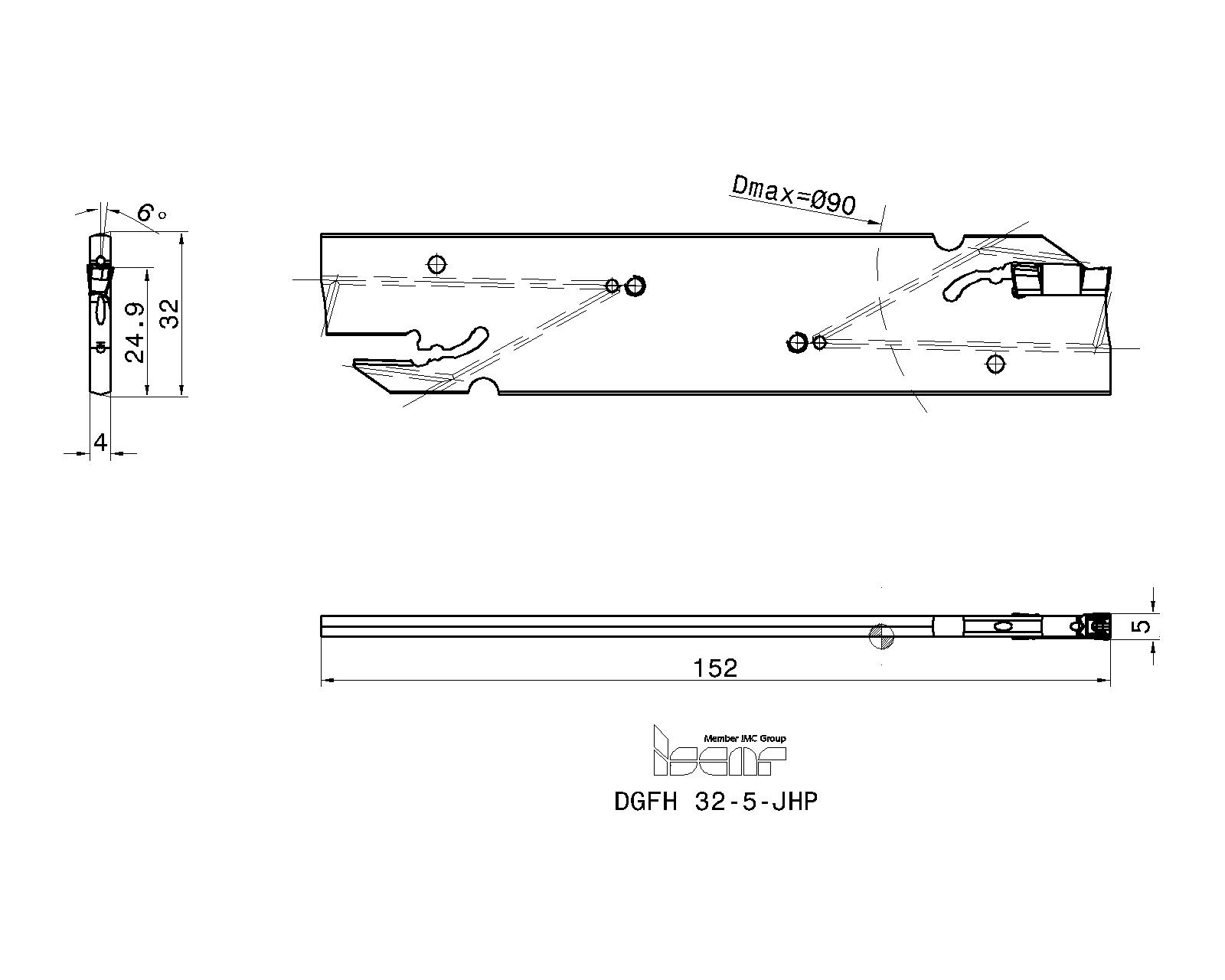

Item Designation: DGFH 32-5-JHP

CWN	CWX	WB	WB_2	OAL	B1	HF	CUTDIA	CSP	HAND	APMX	GICAT	GIREM	giic
5.00	5.00	4.00	-	152.00	32.0	24.9	90.0	1~	N~	5.00~	2302771		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
2302771		3	0	64				<a href="javascript:OpenDxf('2302771', 'DGFH 32-5-JHP' , 'IscarDxf' , '2302771-DGFH 32-5-JHP');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2302771&itemDesc=DGFH 32-5-JHP"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=2302771&itemDesc=DGFH 32-5-JHP"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1


7006330	SR M2.0X2.5DIN916	Socket set with flat	Details
4300255	SGC 340	Sealing screw
7007212	EDG 33A-JHP (Optional, should be ordered separately)	Extractor	Details
