Family Designation: DGFHR/L-BC-JHP

Parting and grooving reinforced blades with channels for high-pressure coolant carrying DO-GRIP inserts.

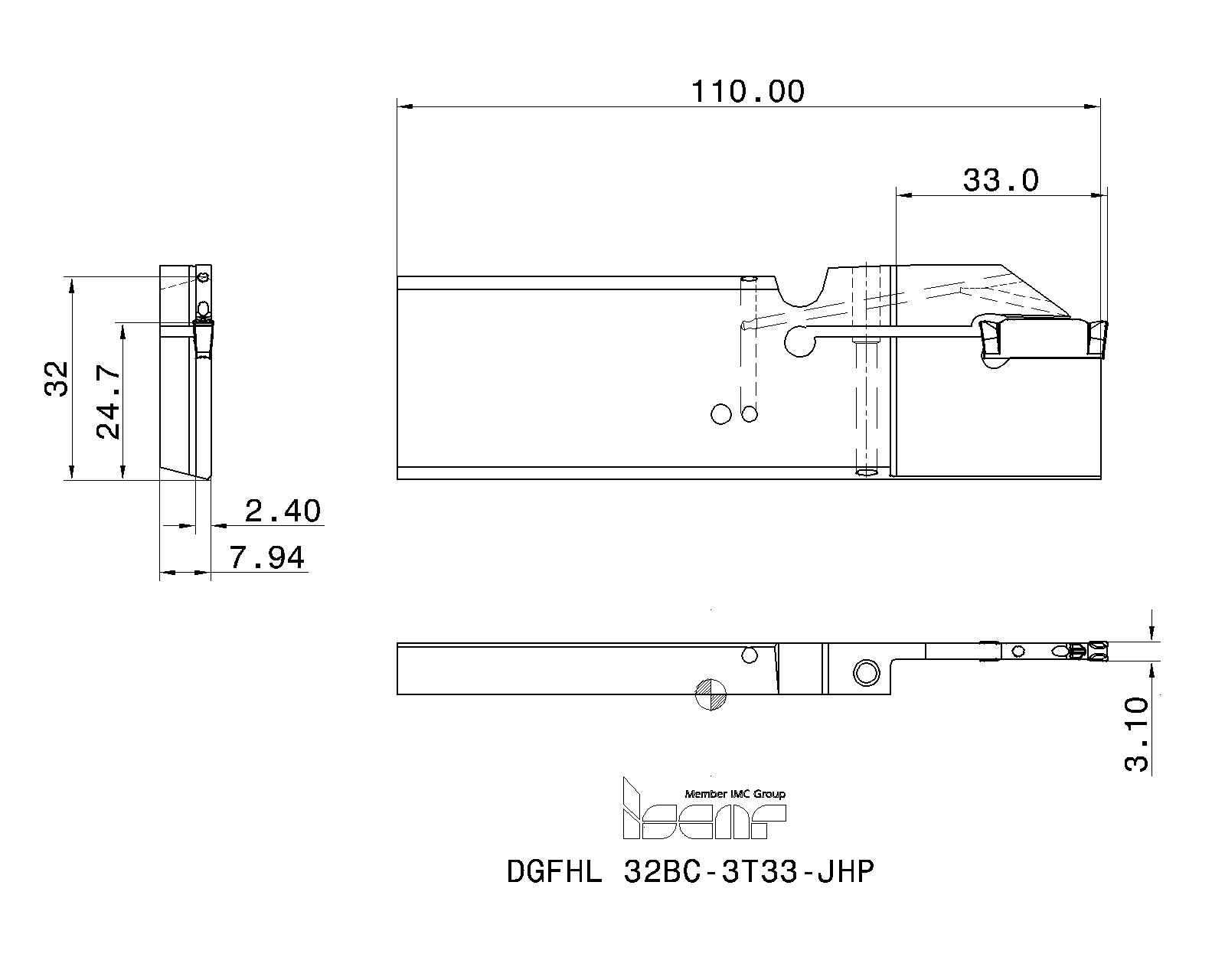

Item Designation: DGFHL 32BC-3T33-JHP

CWN	CWX	WB_2	WB	OAL	B1	HF	CDX	HAND	CSP	APMX	GICAT	GIREM	giic
3.00	3.18	7.9	2.40	111.00	32.0	24.8	33.00	L	1~	3.18~	2310026		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
2310026		3	16	152				<a href="javascript:OpenDxf('2310026', 'DGFHL 32BC-3T33-JHP' , 'IscarDxf' , '2310026-DGFHL 32BC-3T33-JHP');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2310026&itemDesc=DGFHL 32BC-3T33-JHP"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=2310026&itemDesc=DGFHL 32BC-3T33-JHP"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
