Family Designation: HFHR/L-5T

Integral Toolholders for External Facing

Right-hand shown

Left-hand shown

Right-hand shown

Left-hand shown

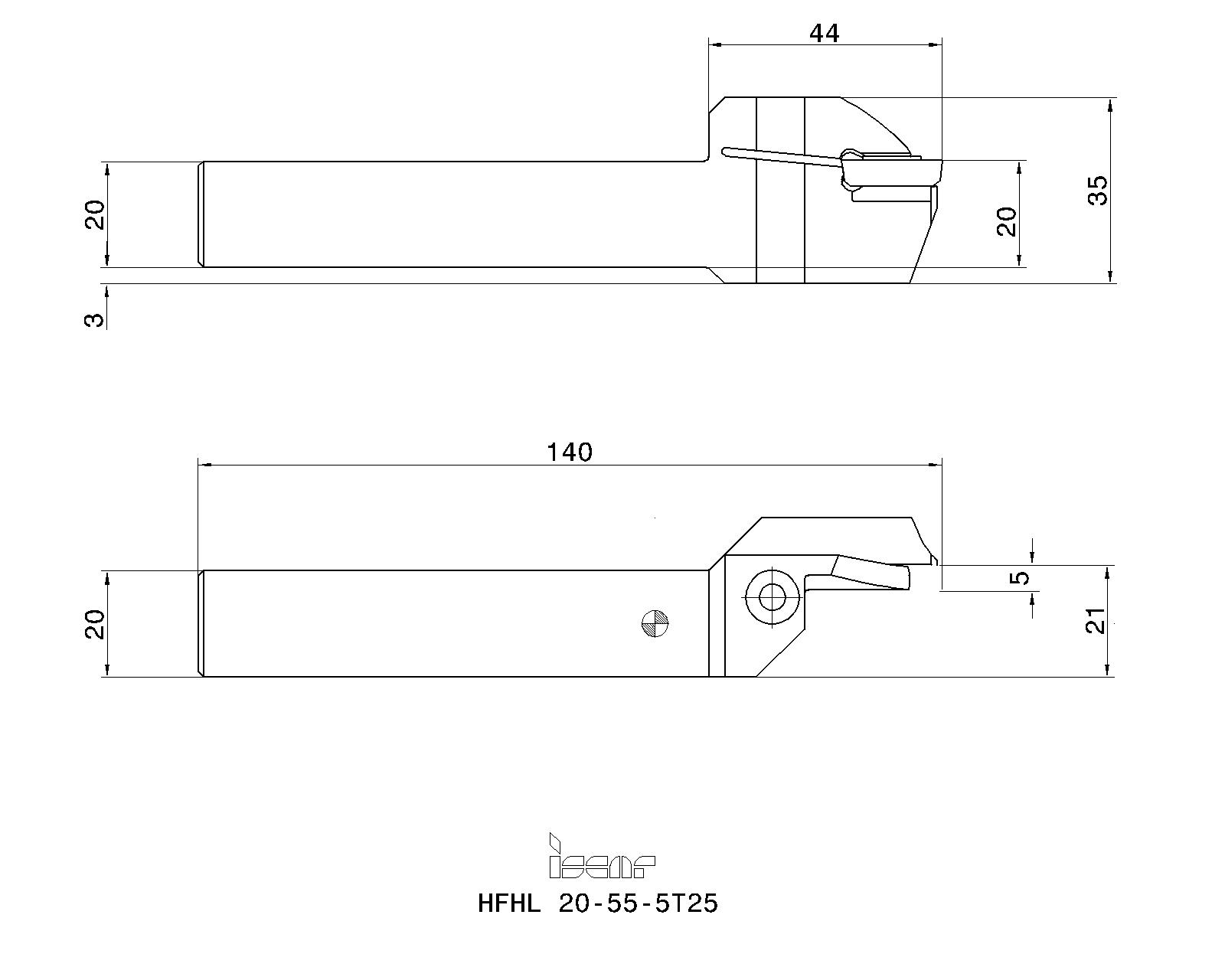

Item Designation: HFHL 20-55-5T25

CW	CDX	H	HF	B	OAL	WF2	WF	DAXN	DAXX	LH	OAH	HBH	HAND	APMX	CSP	GICAT	GIREM	giic
5.00	25.00	20.0	20.0	20.0	140.00	-	21.00	55.0	70.0	44.0	35.0	3.0	L~	5.00~	~	2500044		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
2500044		3	0	72			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=2500044&cat=2500044&itemDesc=HFHL 20-55-5T25"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="javascript:OpenDxf('2500044', 'HFHL 20-55-5T25' , 'IscarDxf' , '2500044-HFHL 20-55-5T25');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2500044&itemDesc=HFHL 20-55-5T25"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=2500044&itemDesc=HFHL 20-55-5T25"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
For insert clamping instructions, click on "More Info"

Spare Parts
	7001841	SR M6X16 DIN912	Socket head cap screw	Details
	7000045	HW 5.0	Hex key	Details
