Family Designation: HFHR/L-5T Integral Toolholders for External Facing
Right-hand shown

Left-hand shown
Right-hand shown

Left-hand shown

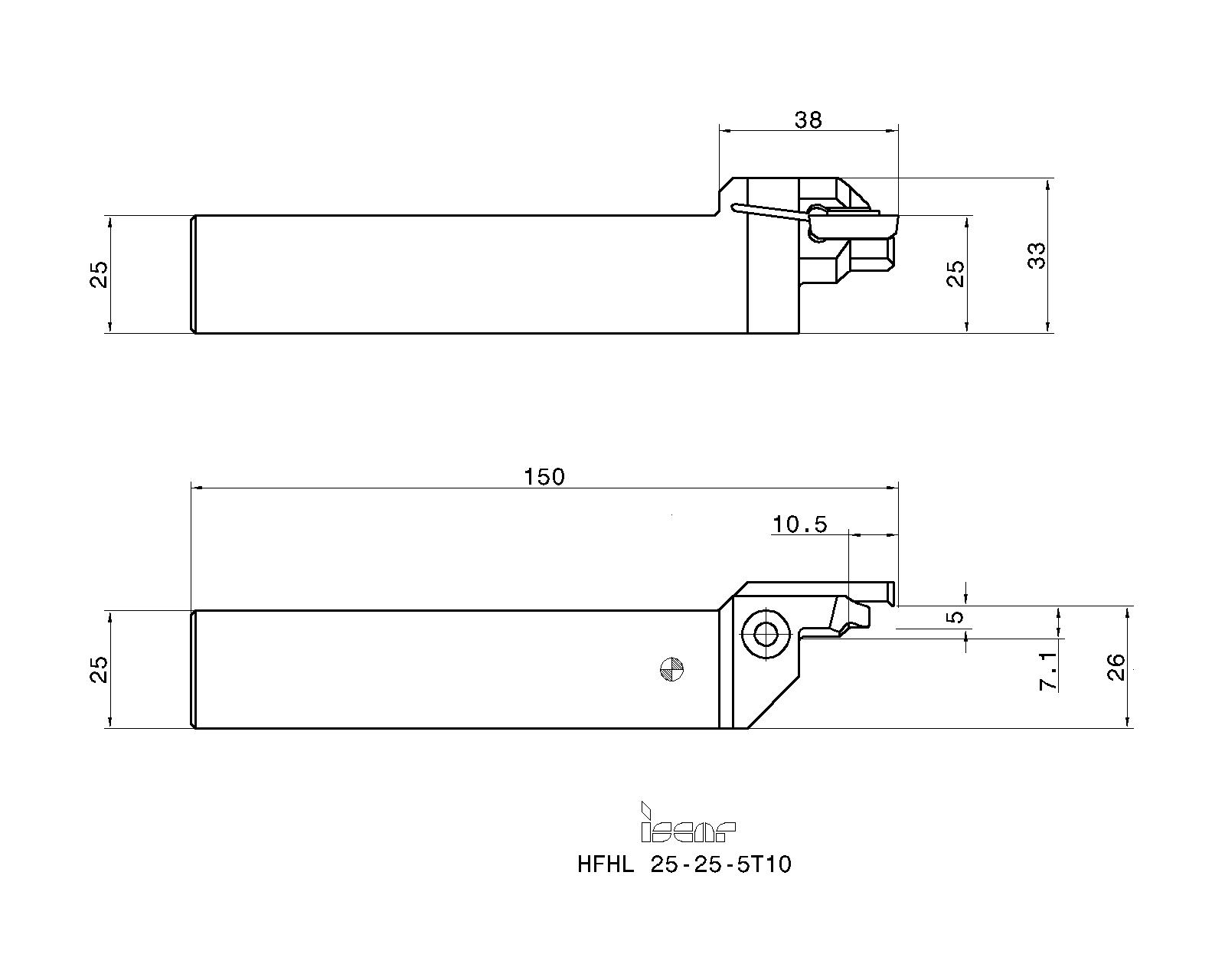

Item Designation: HFHL 25-25-5T10
CW CDX H HF B OAL WF2 WF DAXN  DAXX  LH OAH HBH HAND APMX CSP  GICATGIREMgiic
5.0010.0025.025.025.0150.007.126.0025.030.038.033.0-L~5.00~~2500048 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
2500048 305<a href="javascript:OpenDxf('2500048', 'HFHL 25-25-5T10' , 'IscarDxf' , '2500048-HFHL 25-25-5T10');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2500048&itemDesc=HFHL 25-25-5T10"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=2500048&itemDesc=HFHL 25-25-5T10"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
For insert clamping instructions, click on "More Info"
3D Representation
Assembly Video
2D Representation
  Spare Parts
7001841SR M6X16 DIN912Socket head cap screw
Details
7000045HW 5.0Hex key
