ISCAR Cutting Tools - Metal Working Tools - HFHR/L-5T : 2500068

Geometry Checker ×

Family Designation: HFHR/L-5T

Integral Toolholders for External Facing

Right-hand shown

Left-hand shown

Right-hand shown

Left-hand shown

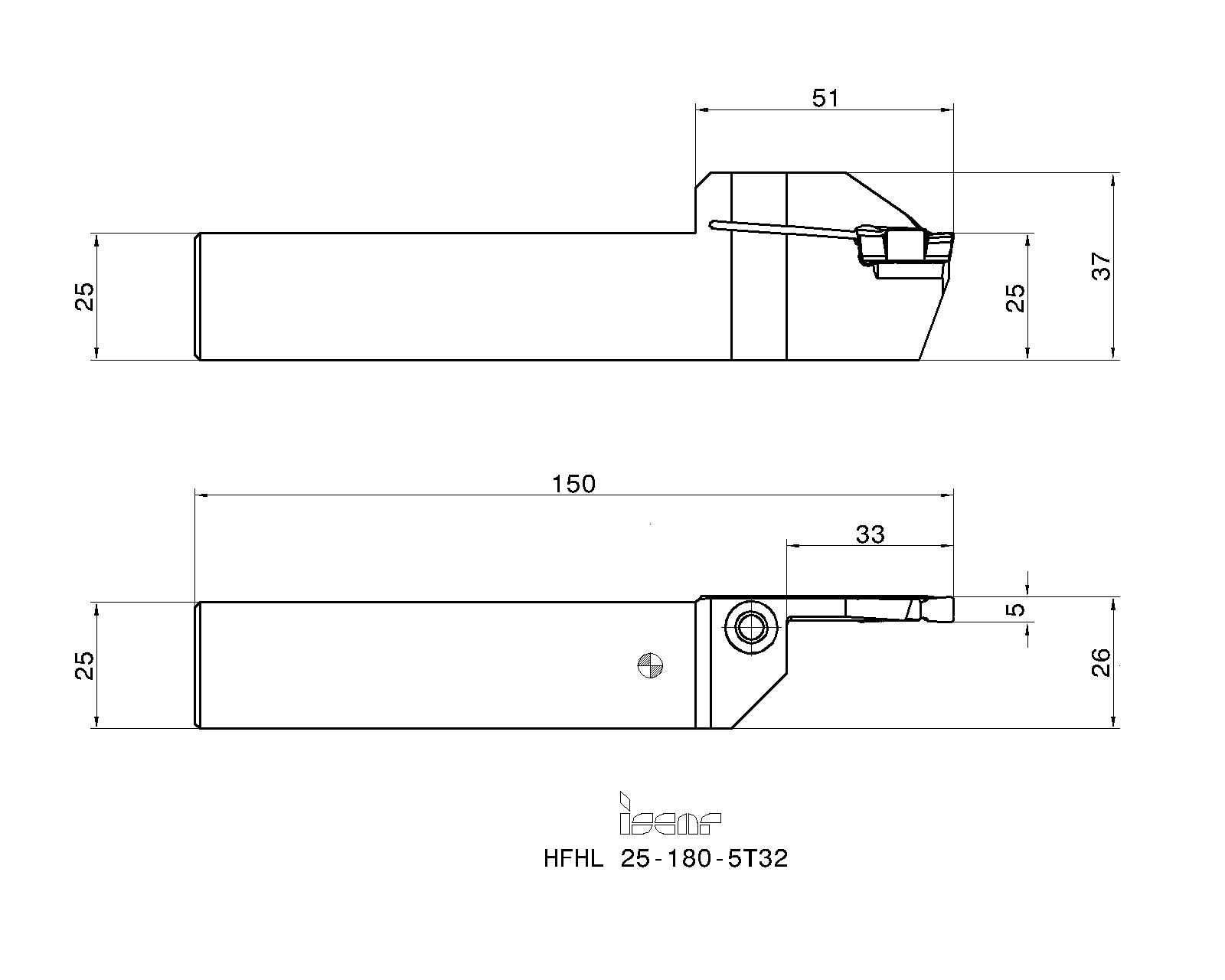

Item Designation: HFHL 25-180-5T32

CW	CDX	H	HF	B	OAL	WF2	WF	DAXN	DAXX	LH	OAH	HBH	HAND	APMX	CSP	GICAT	GIREM	giic
5.00	32.00	25.0	25.0	25.0	150.00	-	26.00	180.0	800.0	51.0	37.0	-	L~	5.00~	~	2500068		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
2500068		1	0	288			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=2500068&cat=2500068&itemDesc=HFHL 25-180-5T32"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="javascript:OpenDxf('2500068', 'HFHL 25-180-5T32' , 'IscarDxf' , '2500068-HFHL 25-180-5T32');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2500068&itemDesc=HFHL 25-180-5T32"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=2500068&itemDesc=HFHL 25-180-5T32"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
For insert clamping instructions, click on "More Info"

Spare Parts
	7001841	SR M6X16 DIN912	Socket head cap screw	Details
	7000045	HW 5.0	Hex key	Details
