ISCAR Cutting Tools - Metal Working Tools - HFHR/L-4T : 2500189

Geometry Checker ×

Family Designation: HFHR/L-4T

Integral holders for facing

Right-hand shown

Left-hand shown

Right-hand shown

Left-hand shown

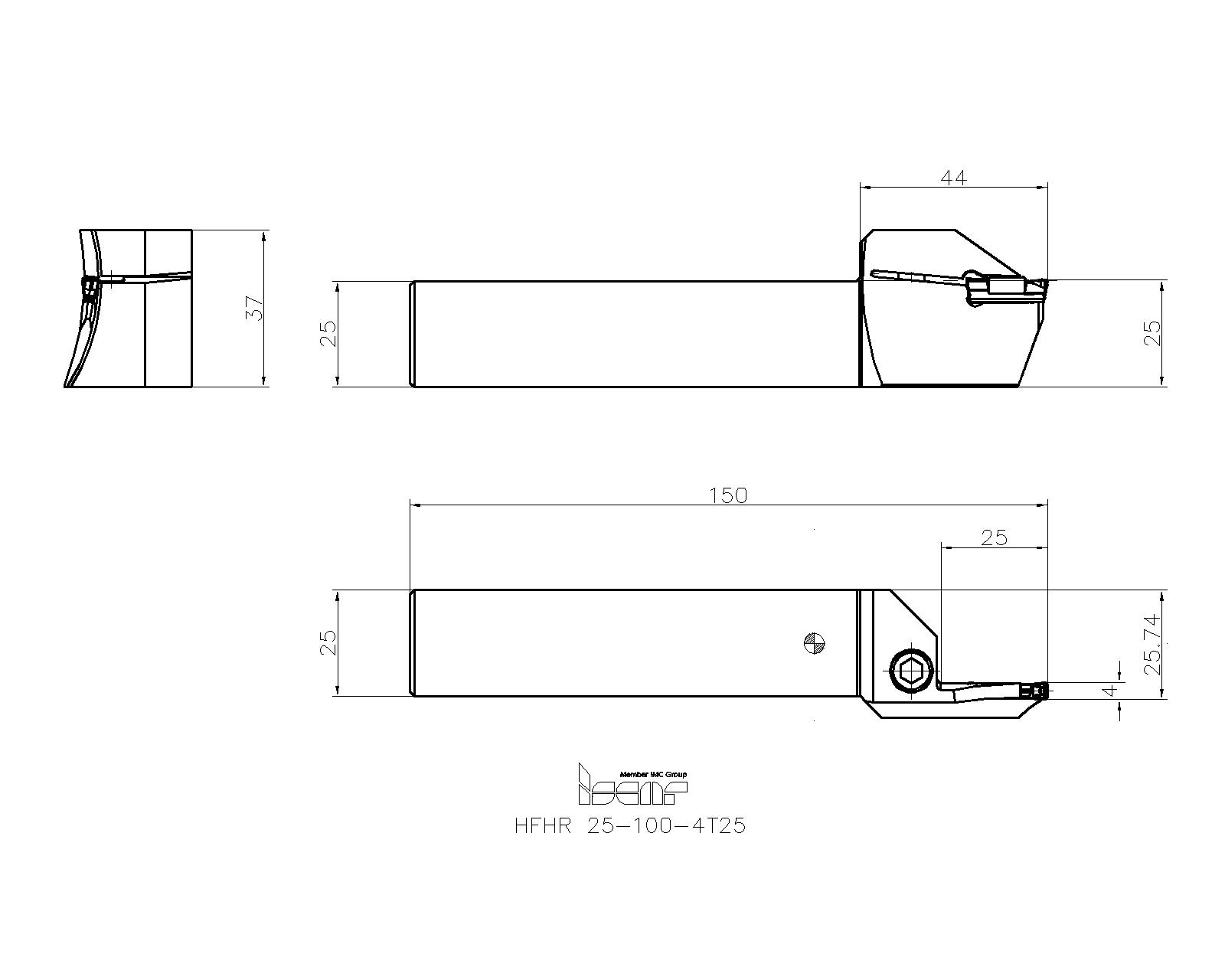

Item Designation: HFHR 25-100-4T25

CW	CDX	H	HF	B	OAL	WF	WF2	DAXN	DAXX	LH	OAH	HBH	HAND	CWN	CWX	APMX	CSP	GICAT	GIREM	giic
4.00	25.00	25.0	25.0	25.0	150.00	25.74	-	100.0	140.0	44.0	37.0	-	R	4.00~	4.80~	4.80~	~	2500189		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
2500189		1	0	1096			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=2500189&cat=2500189&itemDesc=HFHR 25-100-4T25"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="javascript:OpenDxf('2500189', 'HFHR 25-100-4T25' , 'IscarDxf' , '2500189-HFHR 25-100-4T25');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2500189&itemDesc=HFHR 25-100-4T25"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=2500189&itemDesc=HFHR 25-100-4T25"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
For insert clamping instructions, click on "More Info"

Spare Parts
	7001841	SR M6X16 DIN912	Socket head cap screw	Details
	7000045	HW 5.0	Hex key	Details

× Share Item


Emails:
Separate multiple emails by comma (,)

× Error


Unable to add this item to current Assembly!
Do you want to save and exit from the current active assembly?

× Error


You are in a process which does not allow you to add this item. Choose one of the options:

Delete the current assembly to start a new one. Save the current assembly by registering your credentials. Return to the assemblies screen and use the icons to proceed.

× Applications

Choose Application:

Groove-Turn & Parting
Main Application
