Family Designation: HFFR/L-T

Blades for face machining Dmin 48 mm.

Right-hand shown

Right-hand shown

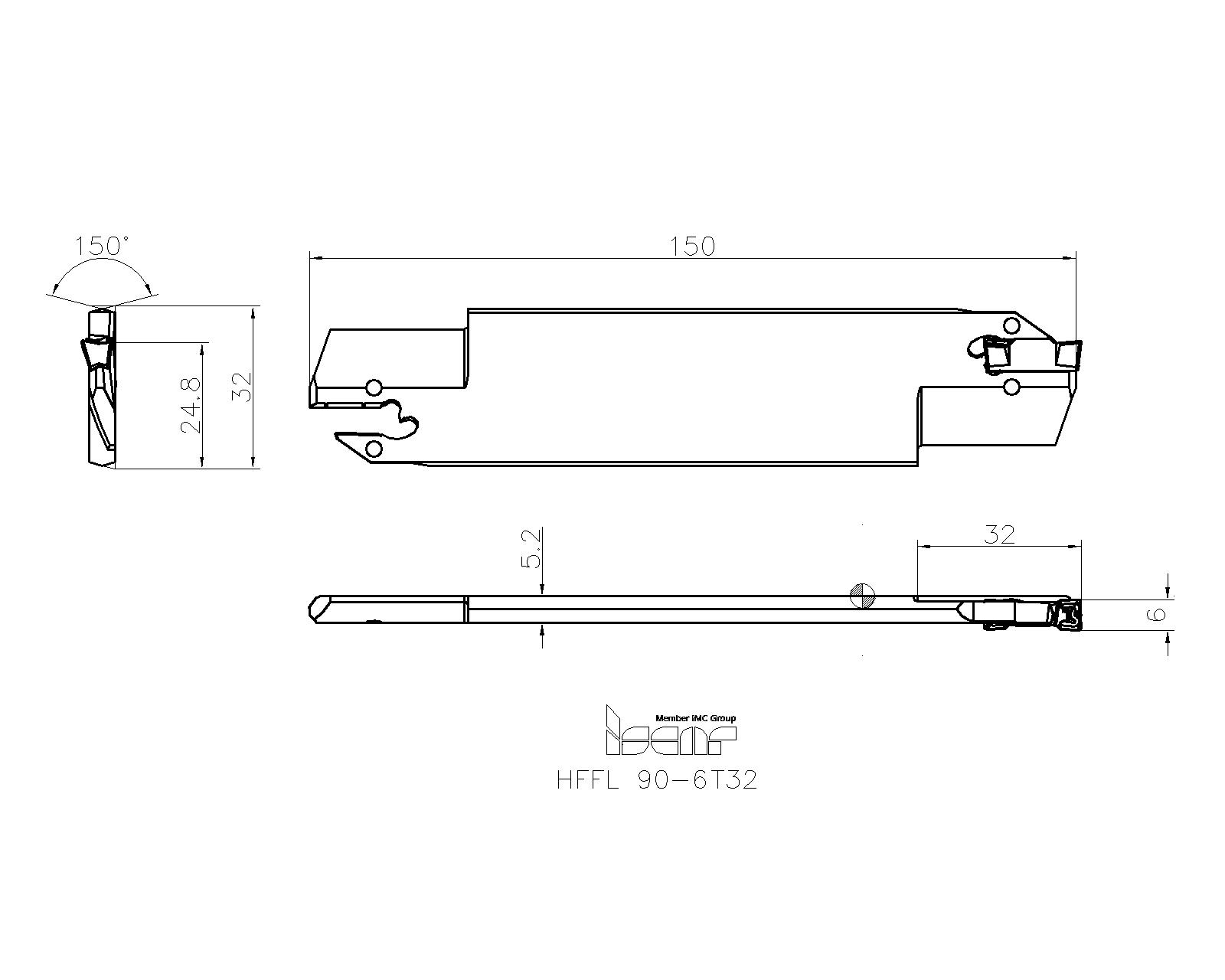

Item Designation: HFFL 90-6T32

CW	DAXN	DAXX	CDX	OAL	HF	H	WB_2	HAND	S1	CWN	CWX	WB	TD	Td	Mod	ft	BMC	MIID	LF	OFFSET	PRHD	NOP	ISCTMP		APMX	Axial	ClssID		CSP	GTC	IIC	IIC_2	IIC_3	IIC_4	IIC_5	IIC_6	IIC_7	LTA	Parallel	SPI	Tool typ	WTA	GICAT	GIREM	giic
6.00	90.0	180.0	32.00	150.00	24.8	32.0	5.2	L	~	0.00~	0.00~	5.20~	32.0~	32.0~	202~	3.66~	S~	HFPL 6004~	~	0.00~	L~	2~	~	0.14~	0.00~	A~	71E01A0EAF067~	N~	~	~	IS$$303214352334663~	IS$$346955055895140~	~	~	~	~	~	43.00~	L~	~	BLADE~	0.00~	2500357		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21
2500357		1	128	8			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=2500357&cat=2500357&itemDesc=HFFL 90-6T32"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="javascript:OpenDxf('2500357', 'HFFL 90-6T32' , 'IscarDxf' , '2500357-HFFL 90-6T32');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2500357&itemDesc=HFFL 90-6T32"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=2500357&itemDesc=HFFL 90-6T32"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required

Spare Parts
	7001912	EDG 33B (Optional, should be ordered separately)	Extractor	Details
