Family Designation: HELIR/L HELI-GRIP external holders for turning, grooving & parting
Right-hand shown

Right-hand shown

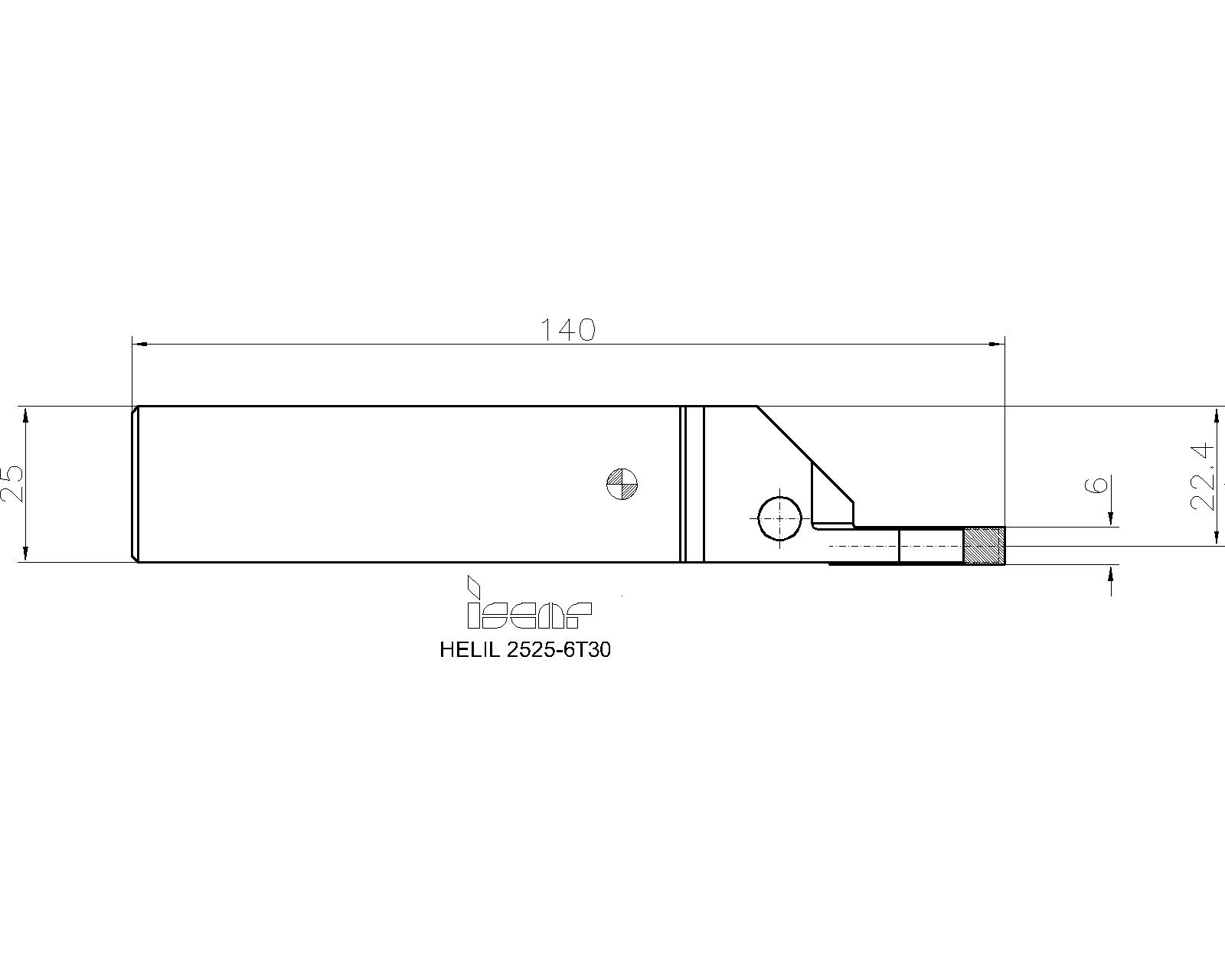

Item Designation: HELIL 2525-6T30
CDX  CWN  CWX  Fig. CUTDIA  H HF B WF OAL LH WB HBH MIID  HAND APMX CCMS CSP  CW KAPR  GICATGIREMgiic
-6.006.352.60.025.025.025.022.40140.0051.45.20-GRIP 6005YL6.00~VKT01A2525~~~~2500445 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
2500445 10760<a href="javascript:OpenDxf('2500445', 'HELIL 2525-6T30' , 'IscarDxf' , '2500445-HELIL 2525-6T30');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2500445&itemDesc=HELIL 2525-6T30"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=2500445&itemDesc=HELIL 2525-6T30"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
For tool type as shown in Fig.2, CDX for grooving is limited by the part diameter Dmax, for grooving depth capacity, click on "More Info"
To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on "More Info"
3D Representation
Assembly Video
2D Representation
  Spare Parts
7001842SR M6X20 DIN912Socket head cap screw
Details
7000045HW 5.0Hex key
Details
